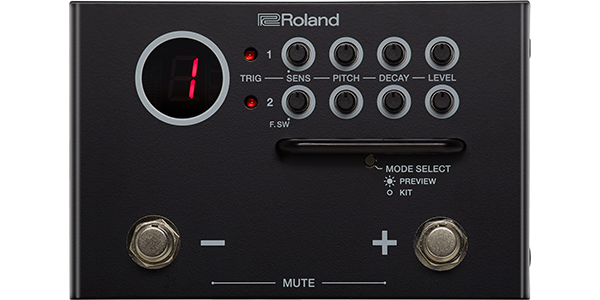

Roland TM-1 Hybrid Trigger Module
Roland TM-1 Compact Hybrid Trigger Module, Two Built-In Footswitches, 15 On-Board Kits, USB Trigger to MIDI
Email me when the availability or price changes
Finance this product
- From £14.50 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Roland - TM-1 Trigger Module
Hybrid Drumming Begins HereEvery drummer is different, and they each have their own distinctive style. Getting a sound that you’re happy with, along with having the right sound for the gig, is vital. But it can be expensive and time consuming trying to find out what works. Enter the TM-1—a unique trigger module that makes it easy to add more sounds to your acoustic drum kit. And those sounds can be anything you like, from the TM-1’s onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops. Just connect any compatible Roland trigger pad to the TM-1 and directly play the sounds you need, or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with zero latency.
Getting your own custom sounds into the TM-1 is a nice and easy, thanks to the free editor app for Mac/Windows and iOS/Android. Simply connect the TM-1 to your device, open the app, import samples from your library, and tweak the settings as needed. When it comes to performing on stage, the battery- or mains-powered TM-1 can be easily controlled with your foot via built-in switches. It’s even possible to mute the hybrid sound with a foot press, letting you go all-acoustic in the verses before bringing in some extra hybrid power for the chorus. Every working drummer can benefit from a hybrid setup these days, and the TM-1 is the easiest and most affordable place to start.
Amazing Features
• Simple and intuitive to use, with direct controls for all trigger functions
• Small size, battery operation, and sturdy floor-based design integrates easily with your regular drum set
• Two built-in footswitches for triggering sounds, changing kits, and muting the module
• Suitable for any music style, from rock and metal to electronic music and beyond
• 15 ready-to-play onboard kits and nearly unlimited sound customization via a convenient editor app
• Free TM-1 Editor (Mac/Windows, iOS/Android) provides access to over 150 additional sounds, plus user sample import and much more
• Compatible with Roland RT-series acoustic drum triggers and a wide variety of Roland trigger pads
• Connect up to two pads or triggers (two single-trigger devices or one dual-trigger device)
• Also works as a trigger-to-MIDI convertor when connected to a computer
• USB for editor communication and trigger-to-MIDI conversion
Roland TM-1 Trigger Module Features
The Tech Spec
| Features | Specification | Kits | 15 |
|---|---|
| Preloaded Sounds | 30 |
| User Sample | Number of User Sample: 30 Sound Length: Approx. 6 second/Sample |
| Data Format | Mac OSX: WAV, AIFF, MP3, AAC, Apple Lossless Windows: WAV (44.1 kHz, 16/24 bits) iOS: WAV, AIFF, MP3, AAC, Apple Lossless Android: WAV (44.1 kHz, 16 bits), MP3 *The Application ‘TM-1 Editor’ is required. |
| Display | 7 segments, 1 character (LED) |
| Controls | [SENS] knob (TRIG1, TRIG2) [PITCH] knob (TRIG1, TRIG2) [DECAY] knob (TRIG1, TRIG2) [LEVEL] knob (TRIG1, TRIG2) [MODE SELECT] button [MUTE] switch [KIT SHIFT] switch [POWER] switch |
| Indicator | Trigger Indicator (TRIG1, TRIG2) |

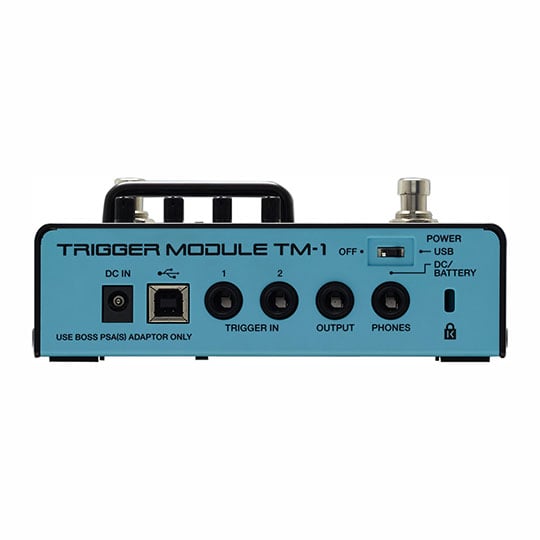

| Connectors | TRIGGER IN jack : 1/4-inch phone type, mono OUTPUT jack : Stereo 1/4-inch phone type *When setting the Output Setting to the "MIX", The mixed sound of trigger 1 and 2 is output in mono. *When setting the Output Setting to the "INDIVIDUAL", Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side). PHONES jack: Stereo 1/4-inch phone type USB port: USB type B DC IN jack |
| USB | MIDI |
| Power Supply | Alkaline battery (9 V, 6LR61) AC adaptor (DC 9 V, sold separately) Supplied from the computer via USB port |
| Current Draw | 100 mA (DC IN) 250 mA (USB) Expected battery life under continuous use : Approx. 3 hours *It depends on the batteries' specification, capacity, and conditions of use. |
| Accessories | Owner's manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (9 V, 6LR61) USB type B Cable |
| Options (sold separately) | AC adaptor (PSA-S series) Acoustic Drum Trigger (RT series) Pads (PD series, PDX series, BT-1) Cymbals (CY series) Kick (KD series) Kick pedal (KT series) Footswitch (DP series, BOSS FS-5U, FS-6, FS-7) Stereo Split Cable (PCS-31L) Personal Drum Monitor (PM series) |
| Dimensions | Width: 150 mm, 5-15/16 inches Height: 60 mm, 2-3/8 inches Depth: 95 mm, 3-3/4 inches |
| Weight (including batteries) | 550 g 1 lb 4 oz |
