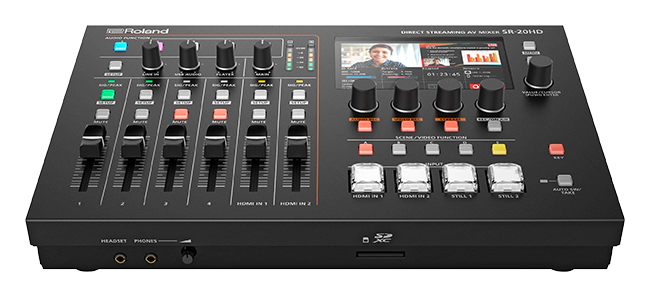

Roland - 'SR-20HD Direct Streaming AV Mixer'
Livestream Directly to Multiple PlatformsThe Roland SR-20HD Direct Streaming AV Mixer is an all-in-one solution designed to simplify live content production and streaming for businesses and organizations. With its compact, portable design, this powerful unit allows you to connect AV devices and stream securely to multiple platforms over LAN, no computer required. The SR-20HD also enables direct recording to SDXC media for easy archiving and distribution. Built with reliability and user-friendly operation in mind, it delivers professional-quality results while prioritizing consistency and network security, making it ideal for teams with minimal training.
• Enterprise streaming solution for direct livestreaming without a PC
• Adaptive Bitrate function reduces freezing and dropouts due to bandwidth issues
• Scene function for executing multiple tasks with a single touch
• Ease your workflow with Video Auto Switching and Auto Mixing functions
• LCD monitor for checking video I/O and delivery status in real time
• High-quality audio mixer with eight input channels for mics and line-level devices
• Built-in encoders for transmitting two simultaneous livestreams up to 1080p/60 FPS
• Safety Delay function to keep accidental moments from being broadcast
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Play sound effects, still images, and video sources from an SDXC card to enhance your livestreams

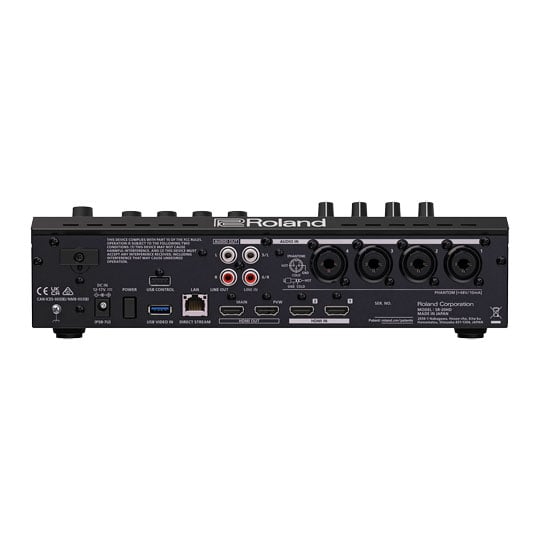

• Three video inputs: two HDMI and one USB video class
• Two HDMI outputs: Main and Preview
Built For Success
Designed to succeedThe SR-20HD is designed to make everyone successful with livestream operation and management, regardless of experience. It combines dual streaming encoders, simple video switching, audio mixing, and recording support in one unit, simplifying production tasks and reducing points of failure.
Plug In And Stream
easy livestreamingUsing the two HDMI inputs, you can connect common video sources such as cameras, smartphones, tablets, and computers running presentation software. In addition, a wide range of audio inputs are available for mics, music players, electronic musical instruments, and more. Once everything is plugged in, simply connect to your network router and begin livestreaming with team members, clients, or students on Facebook, YouTube Live, Twitch, or by RTMP to your CDN.
Secure And Reliable Operation
advanced Roland A/V technologiesPacked with advanced Roland A/V technologies, the SR-20HD reduces the need for technical support and experienced staff members. Automatic functions run in the background to eliminate dropped streams and help protect your organization from broadcasting inappropriate content. And since all streaming tasks are handled within the SR-20HD, there’s no risk of malware and other issues that come with computer-based streaming on your enterprise network.

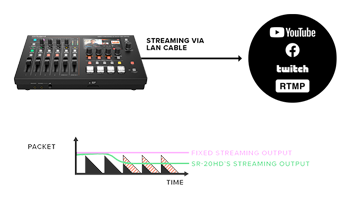

Adaptive Bitrate
automatically adjusts the streaming rateThe SR-20HD’s unique Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues.
Mobile Phone Tethering
backup connectionA mobile phone with a 4G or 5G data plan can be used as the primary streaming connection or a redundant backup. Should anything happen to your main hardwired network connection, the SR-20HD will automatically switch to the tethered mobile phone over USB.

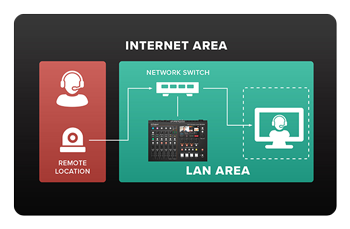

SRT Support
Secure Reliable TransportThe SR-20HD supports SRT (Secure Reliable Transport), an open-source standard for AVoIP that provides secure encrypted audio and video transmission over IP networks. It also offers future-proof connectivity within installed system configurations. SRT allows you to seamlessly extend your SR-20HD production capabilities via LAN or an internet connection. Access camera images from remote locations and switch them along with local HDMI sources. And send a dedicated SRT video output to an external destination, such as another building at the production location.

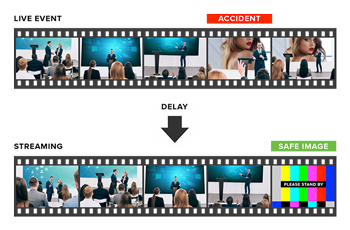

Safety Delay
confidently streamWith the SR-20HD, you can confidently stream unscripted events and prevent offensive content from being broadcast to your audience. The Safety Delay function buffers up to 60 seconds of video and audio, allowing you to switch to a still image or mute the sound if anything goes wrong.
Dual Streaming Destinations
Panel LockEncode and broadcast livestreams to two independent channels on the same platform to reach a wider audience or create a backup for archiving or later distribution. Panel Lock prevents users from accidentally changing settings that could disrupt a broadcast. You can disable access to a wide range of hardware controls and menu parameters on an individual basis, leaving only the essential functions needed for the livestream.

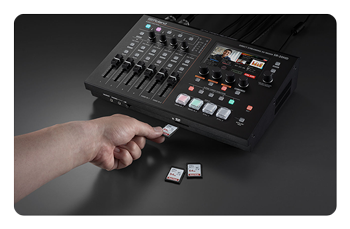

Simplified Recording And Playback
SDXCThe SR-20HD’s onboard recorder lets you capture H.264 MP4 video to an SDXC card for later editing or uploading to YouTube or enterprise intranets. In addition, stereo WAV audio can be captured independently for podcasts and other audio-driven media. It’s also possible to access media stored on the SDXC card to bring higher production values to your presentations.

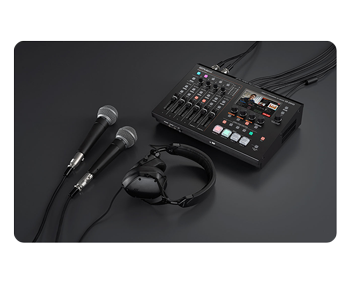

Advanced Audio Control
audioThe SR-20HD covers the divergent audio needs of single presenters, conference panels, and even music performances. Inputs for up to four professional XLR microphones, line-level signals, and a headset mic provide multiple ways to connect all common analog sources. You can also mix in digital audio from HDMI and USB sources, plus audio from videos and music files stored on an SDXC card.
Make quick volume adjustments for individual sources using the dedicated faders and knobs. And go deeper with EQ and dynamics processing via the preview display and F1–F4 encoders. You also have five user-assignable function buttons to speed up your workflow, providing quick access to Auto Mixing, audio/video playback, F1–F4 functions, and more.
Automated Switching And Mixing
Video Auto SwitchingWith a variety of powerful tools, you can automate video switching and audio mixing tasks to ease your workload. This is particularly helpful when you’re also a presenter, allowing you to stay focused on delivering your message to the audience. Change video input sources at predetermined time intervals to make your presentation more dynamic.

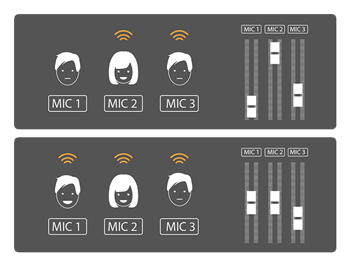

Auto Mixing
balanced audioThe Auto Mixing function ensures that the mix between your connected microphones remains balanced. You can set specific inputs to take priority when someone starts to speak, and other audio levels are automatically reduced as needed.

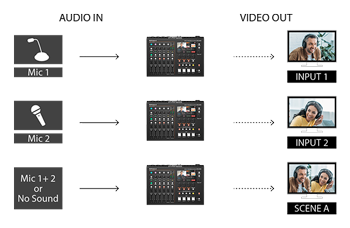

Follow The Source
multiple presentersThe SR-20HD makes it simple to broadcast with multiple presenters. With the Audio Follows Video function, the corresponding audio automatically follows when you switch to a different video source. Conversely, the Video Follows Audio function switches video based on who’s currently speaking.

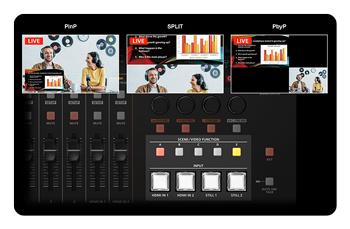

Scenes
pro production valuesWith Scenes in the SR-20HD, it’s easy to bring pro production values to your livestreams by executing complex switching functions all at once. Set up and store five preset arrangements of layered sources and display them in customizable inset windows. Then use the dedicated Scene buttons to switch between them and keep the audience engaged during the broadcast.

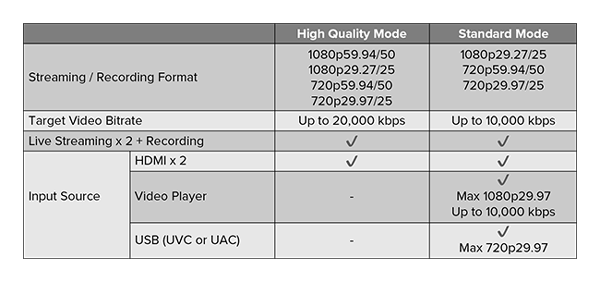

Hi-Res Streaming For Live Action
excellent qualityThe SR-20HD’s Standard mode supports 1080p resolution at 30 FPS, which provides excellent quality for most livestreaming applications. If you’re broadcasting live sports or other events with quick movement, you can select High Quality mode to increase the frame rate to 60 FPS and reduce motion blur. It’s also possible to extend your livestreaming capabilities with the SR-20HD’s SRT support.
Input Expansion
expand your possibilitiesIf you ever need to connect more sources, you can expand your possibilities with a VR-4HD, or UVC-01. These Roland A/V products allow you to send high-quality, uncompressed video or audio to the SR-20HD’s USB video input.
