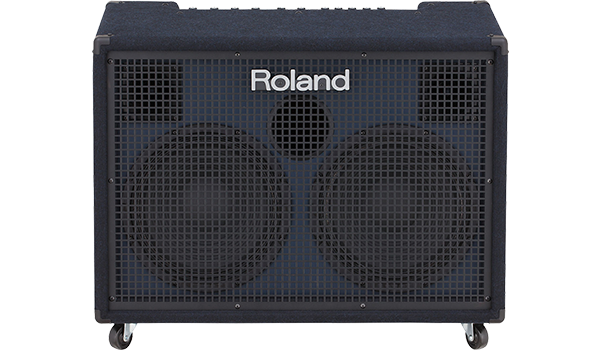

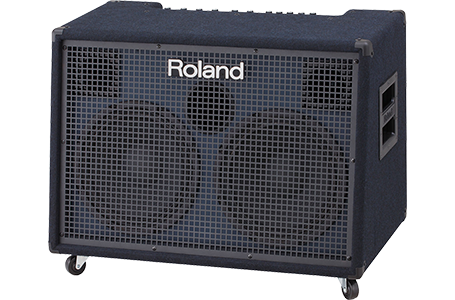

Roland KC-990 Keyboard Amplifier
Roland KC-990 4-Channel, 2x12", 320 Watt Keyboard Amplifier
Stereo Mixing Keyboard Amplifier
Roland - KC-990
Play great, sound greatFor more than two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The newest generation continues the time-honored KC benchmark of quality while providing new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best.
The flagship KC-990 is a performance powerhouse packed with high-end features. Offering four onboard DSP effects, four stereo input channels, a stereo aux input, and support for an XLR vocal mic, it’s an incredible all-in-one solution for players with large keyboard setups and small groups performing with electronic instruments and backing tracks. The KC-990 provides huge, full sound for both stage monitoring and PA use, thanks to its stereo speaker configuration and 320 watts of total power. Using it's Stereo Link capability, you can seamlessly add a second KC-990 when you need more inputs and broader sound coverage.
The KC-990 delivers full-range stereo sound reproduction with 320 watts of power (160 watts x 2), two newly designed 12-inch speakers, and two custom horn tweeters which accurately reproduces the wide frequency range of 88-note stage pianos, organs, and synthesizers, as well as rhythm machines and other electronic instruments.
4Channels
2 x 12"Speakers
320WPower
at a glance
• Flagship stereo keyboard amplifier with 320 watts of power
• Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ
• Flexible I/O with XLR mic input, stereo XLR and ¼-inch line outputs, headphones output, and more
• Two newly developed custom 12-inch woofers and two custom horn tweeters
• Control rotary speed and effects on/off with optional external footswitches
• Built-in effects: reverb, chorus, tremolo, and rotary
Onboard Mixing for Big Rigs and Full Groups
dedicated inputsRoland’s most powerful KC amp is a complete stereo sound system in a single package, perfect for backline amplification, stage monitoring, and even main PA use. Featuring four stereo line input channels, you can connect keyboards, percussion pads, drum machines, and more. There’s also a dedicated auxiliary input to plug in a smartphone or music player for backing tracks.
Channel 1 also includes an XLR input, allowing you to connect a vocal mic for extra versatility. The Aux In channel supports 1/8-inch, RCA, and ¼-inch connections, and features a handy monitor function for working with guide tracks on stage.
Versatile Connectivity for Performing, Recording and Practice
Built-In Stereo EffectsThe KC-990 is equipped with four different effects for enhancing your live sound. The chorus effect is taken from Roland’s world-famous JC-series amps, delivering unmatched depth and dimension through the KC-990’s stereo speakers. The amp also includes tremolo and rotary effects that work great with organs and electric pianos, plus a stunning stereo reverb for vocals and instruments. By connecting optional footswitches, you can turn the effects on/off and control rotary speed hands-free while performing.

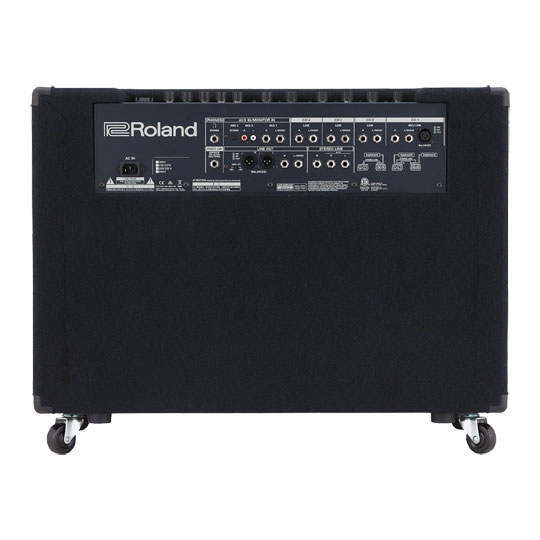

Thanks to its rear-panel connectivity, the KC-990 integrates easily into any playing environment. Stereo line outputs are available on both XLR and ¼-inch jacks, offering simultaneous connections for interfacing with PA systems, stage monitors, and recording devices. The XLR outputs also have a switchable ground lift, which removes hum that can sometimes occur when connecting to a main PA. You also get a headphones jack, perfect for silent practice sessions and discrete monitoring of guide tracks and instruments on stage.
Expand Your Setup with Stereo Link
super stereoIf you ever need to expand your inputs or sound coverage, the KC-990’s Stereo Link function makes it nice and easy. First off, the number of available inputs doubles when you connect to the two stereo link jacks on a second KC-990.
Along with this, the left and right signals of connected instruments are split across the two amps, providing super-wide stereo dispersion for even more impressive sound.
ROLAND KC AMPS "WORTH IT EVERY TIME"
The Tech Spec
| Features | Specifications | Rated Power Output | 320 W (160 W + 160 W) |
|---|---|
| Nominal Input Level (1 kHz) | CH1 (BALANCED, L/MONO, R): -50-- -20 dBu CH2 (L/MONO, R): -20 dBu CH3 (L/MONO, R): -20 dBu CH4 (L/MONO, R): -20 dBu AUX IN/MONITOR IN (AUX 1､AUX 2､AUX 3): -10 dBu STEREO LINK (IN): 0 dBu |
| Nominal Output Level (1 kHz) | LINE OUT (L/MONO, R): +4 dBu LINE OUT (BALANCED L, R): +4 dBu STEREO LINK (OUT): 0 dBu |
| Speakers | 30 cm (12 inches) Woofer x 2 Horn Tweeter x 2 |

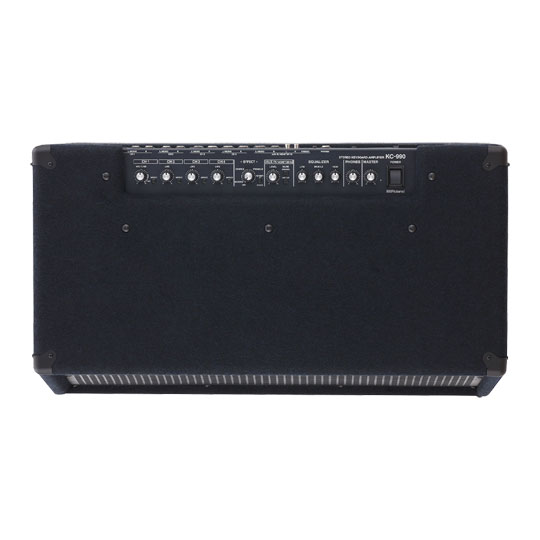

| Controls | POWER switch GND LIFT switch [CH1] MIC/LINE knob EFFECT button [CH2] LINE knob EFFECT button [CH3] LINE knob EFFECT button [CH4] LINE knob EFFECT button [EFFECT] EFFECT knob ROTARY SPEED button [AUX IN] LEVEL knob MUTE SPEAKER button MUTE LINE OUT button [EQUALIZER] LOW knob MIDDLE knob HIGH knob [PHONES] VOLUME knob MASTER knob |
| Indicator | Power |
| Connectors | CH1 (BALANCED) jack: XLR type CH1 (L/MONO, R) jacks: 1/4-inch phone type CH2 (L/MONO, R) jacks: 1/4-inch phone type CH3 (L/MONO, R) jacks: 1/4-inch phone type CH4 (L/MONO, R) jacks: 1/4-inch phone type AUX IN/MONITOR IN AUX 1 (L/MONO, R) jacks: 1/4-inch phone type AUX 2 (L, R) jacks: RCA phono type AUX 3 (STEREO) jacks: Stereo miniature phone type PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output) STEREO LINK (IN, OUT L, OUT R) jacks: 1/4-inch phone type LINE OUT (L/MONO, R) jacks: 1/4-inch phone type LINE OUT (BALANCED L, R) jacks: XLR type FOOT SW jack: 1/4-inch TRS phone type |
| Power Consumption | 98 W |
| Accessories | Owner's Manual Caster x 4 |
| Dimensions | Width: 759 mm, 29-15/16 inches Height (excluding casters): 534 mm, 21-1/16 inches Height (including casters): 585 mm, 23-1/16 inches Depth: 470 mm, 18-9/16 inches |
| Weight | 42 kg, 92 lbs 10 oz |
