Roland KC-200 Mixing Keyboard Amplifier

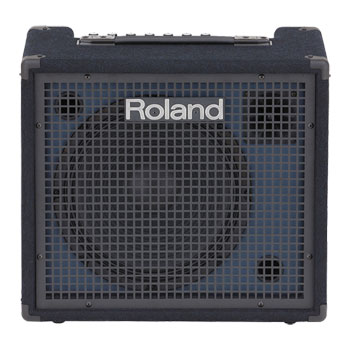

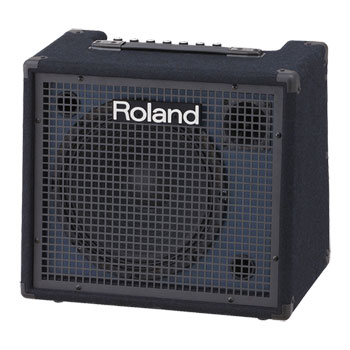

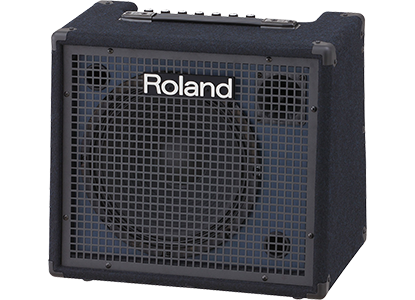

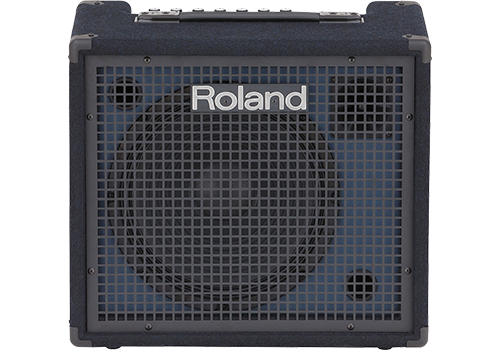

Roland KC-200 4-Channel, 100 Watt, 1x12" Mixing Keyboard Amplifier
- SCANPROTECT Protect against installation damage for 28 days. More info
4-Channel Mixing Keyboard Amplifier
Roland - KC-200
Play great, sound greatFor more than two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The newest generation continues the time-honored KC benchmark of quality while providing new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best.
Compact and affordable, the KC-200 features 100 watts of power and an integrated mixer with four line input channels, a dedicated aux input, and connectivity for an XLR vocal mic. Compared to the previous-generation KC-150, the power section has been completely redesigned for higher output, better stability, and improved bass reproduction. The 12-inch woofer has also been upgraded for improved sound quality. On its own, the KC-200 delivers big sound in a highly mobile package. If you wish, the low-end performance can be extended by driving a powered subwoofer from the amp’s Sub Out jack.
4Channels
1 x 12"Speakers
100WPower
at a glance
• Compact and affordable keyboard amplifier with 100 watts of power
• Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
• Onboard mixing with four 1/4-inch line input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
• Custom two-way speaker system with newly developed 12-inch woofer and tweeter
• Channel 4 provides dedicated monitor functionality for click and guide tracks
• XLR mic input, 1/4-inch line output, headphones output, and sub output
Full-Range Sound
extended frequency responseThe KC-200 provides full-range audio reproduction in a compact amp with 100 watts of power. The cabinet features Roland’s patented twin bass-reflex design, providing extended low-frequency response without distortion.
Paired with the newly redesigned power section and updated 12-inch woofer, the KC-200 delivers even better bass performance for amplifying 88-note stage pianos, organs, and synthesizers, rhythm machines and other electronic instruments.
Onboard 4+1 Mixing
Plenty of OptionsThe KC-200’s four 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments. An auxiliary channel with 1/8-inch and RCA inputs is available for connecting smartphones, music players, or other devices.
Channel 1 includes an XLR input too, letting you plug in a vocal mic for even more versatility. Channel 4 is dedicated to monitoring through the KC-200’s onboard speakers and headphones jack; this allows you to monitor click or guide tracks while performing without sending the sound to a PA via the amp’s line out jack.
Versatile Connectivity
Easy controlWith easy-access connectivity, the KC-200 easily works into any playing environment. A 1/4-inch line output allows you to interface with PA systems, stage monitors, and recording devices.
There’s also a Sub Out jack for connecting to a powered subwoofer, with level conveniently tied to the amp’s master volume for one-touch control. Plugging into the Phones jack mutes the onboard speakers and Sub Out, perfect for private practice sessions and checking sounds on stage with headphones.
ROLAND KC AMPS "WORTH IT EVERY TIME"
The Tech Spec
| Features | Specifications | Rated Power Output | 100 W |
|---|---|
| Nominal Input Level (1 kHz) | CH1 (XLR type, MIC/LINE): -50-- -20 dBu CH2 (LINE): -20 dBu CH3 (LINE): -20 dBu CH4 (MONITOR): -20 dBu AUX IN (L, R, STEREO): -10 dBu |
| Nominal Output Level (1 kHz) | LINE OUT: +4 dBu SUB OUT: +4 dBu |
| Speakers | 30 cm (12 inches) Woofer x 1 Tweeter x 1 |

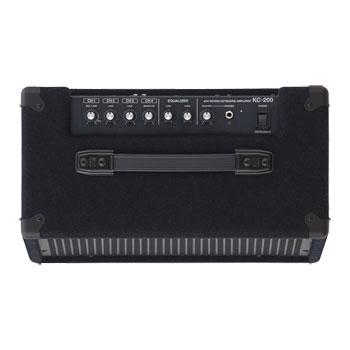

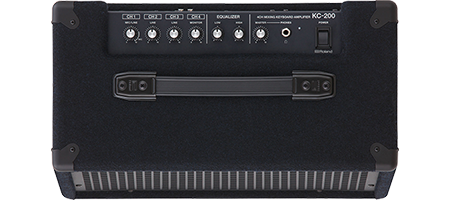

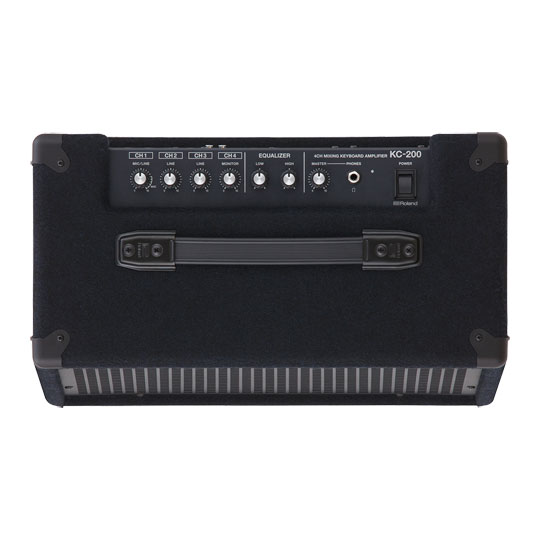

| Controls | POWER switch [CH1] MIC/LINE knob [CH2] LINE knob [CH3] LINE knob [CH4] MONITOR knob [EQUALIZER] LOW knob HIGH knob MASTER knob |
| Indicator | Power |

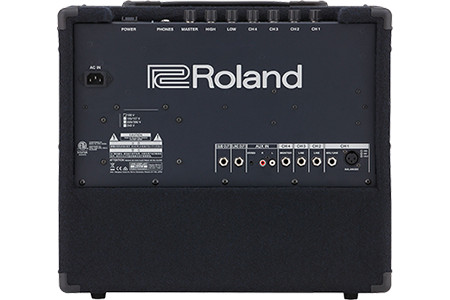

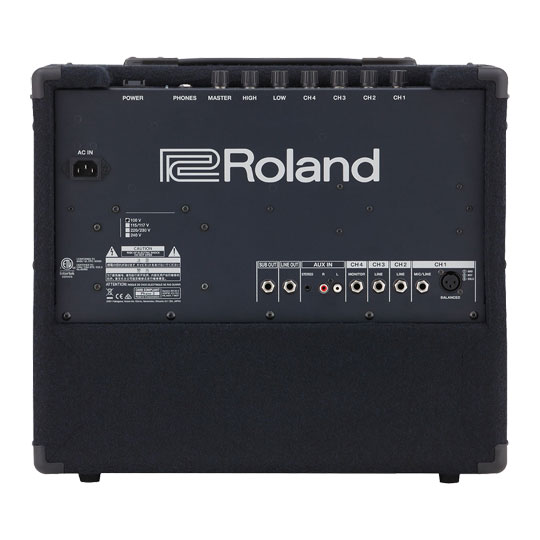

| Connectors | CH1 jack: XLR type CH1 (MIC/LINE) jack: 1/4-inch phone type CH2 (LINE) jack: 1/4-inch phone type CH3 (LINE) jack: 1/4-inch phone type CH4 (MONITOR) jack: 1/4-inch phone type AUX IN (L, R) jacks: RCA phono type AUX IN (STEREO) jacks: Stereo miniature phone type LINE OUT jack: 1/4-inch phone type SUB OUT jack: 1/4-inch phone type PHONES jack: 1/4-inch TRS phone type (mono signal output) |
| Power Consumption | 70 W |
| Accessory | Owner's Manual |
| Option (sold separately) | Speaker stand: ST-A95 |
| Dimensions | Width: 480 mm, 18-15/16 inches Height: 435 mm, 17-1/8 inches Depth: 295 mm, 11-5/8 inches |
| Weight | 15 kg 33 lbs 2 oz |
