Roland DrumLink Hub
Roland - DH-10 DrumLink Hub Wireless Receiver for the Roland DrumLink System
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

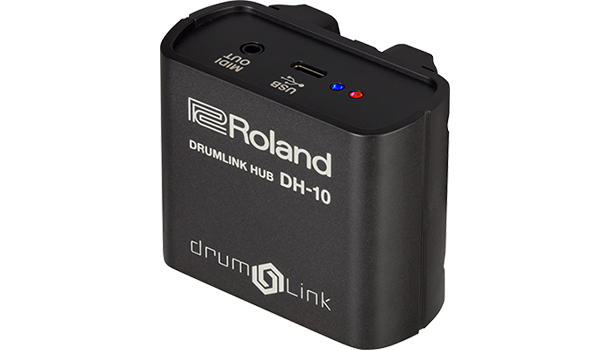

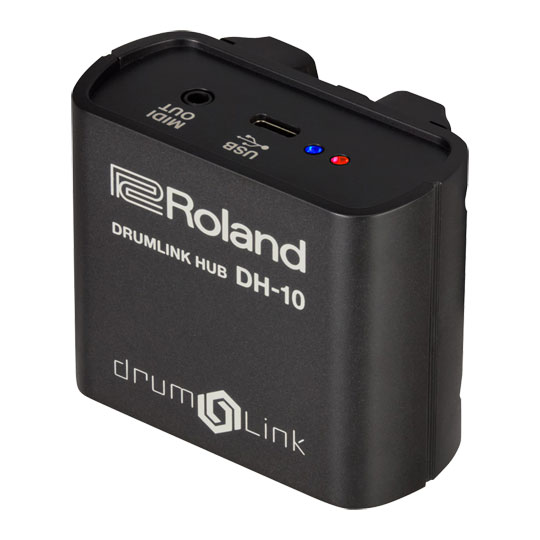

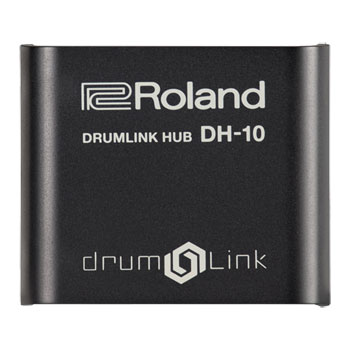

DrumLink Hub
Roland - DH-10
Compact Receiver for Roland WT-10 Wireless Trigger AdaptersThe advanced Roland DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. The compact DH-10 DrumLink Hub captures trigger signals from multiple WT-10 Wireless Trigger Adapter units and sends them to a V71, TD-50X, or TD-27 V-Drums sound module, SPD-SX PRO Sampling Pad, or a computer.
Amazing Features
• Wireless receiver for the Roland DrumLink system
• Compatible with the V71, TD-50X, and TD-27 V-Drums sound modules and SPD-SX PRO Sampling Pad
• Receives trigger signals from multiple WT-10 Wireless Trigger Adapter units
• Connects to the V-Drums module or a computer via USB-C or MIDI
Roland DrumLink | Everything You Need to Know
The Tech Spec
| Features | Specification | Wireless Format | Proprietary Protocol |
|---|---|
| Wireless Carrier Frequency | 2.4-2.485 GHz ISM Band |
| Transmission Range | 10 m (32 feet) line-of-sight May vary due to local conditions |
| Connectors | USB Port: USB Type-C(R) MIDI OUT connector: TRS mini type |
| Power Supply | Supplied from via USB |

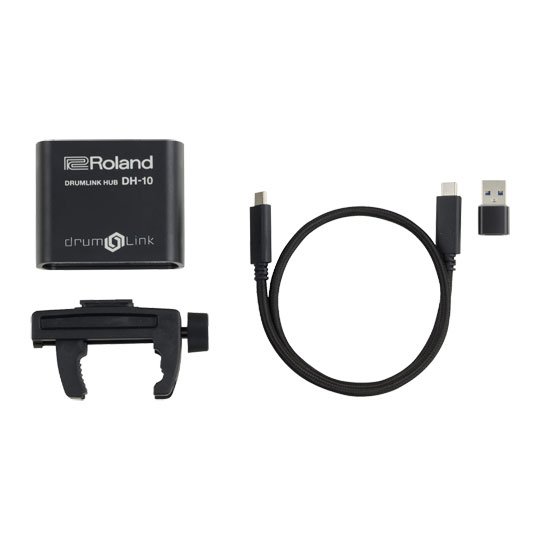

| Accessories | Clamp, USB Type-C(R) cable (0.5 m / 19 inches), Type-C(R) to A adaptor, Owner's Manual, Leaflet "USING THE UNIT SAFELY" |
| Size and Weight (Body) | Width: 70 mm, 2-13/16 inches Depth: 45 mm, 1-13/16 inches Height: 58 mm, 2-5/16 inches Weight: 65 g / 3 oz |
| Size and Weight (Includes horizontal clamp) | Width: 84 mm, 3-5/16 inches Depth: 88 mm, 3-1/2 inches Height: 58 mm, 2-5/16 inches Weight: 120 g / 5 oz |
| Clamp Mountable Diameter Size | Φ4.5–32 mm Φ3/16–1-5/16 inches |
