Battery-Powered Stereo Amplifier
Roland - CUBE Street EX
HIGH-QUALITY SOUND FOR PERFORMERS ON THE GORoland’s CUBE Street was a huge hit among traveling musicians thanks to its compact size and battery-powered operation. The new CUBE Street EX enhances the popular mobile amp with a huge performance upgrade that delivers extra projection, more channels, and more versatility. 50 watts of big power and a stereo speaker system with dual woofers and tweeters deliver clean, punchy sound for larger crowds, whilst four independent channels offer abundant connections for a range of mics and instruments.
Detailed sound adjustment is available with separate EQ and reverb controls, and great guitar tones are dialed in easily using the onboard COSM amps. Selectable power modes provide up to 20 hours of operation with eight AA batteries, and two CUBE Street EX units can be linked together for more sound coverage if required. i-CUBE LINK also mean you can even plug in your iPhone or iPad to play backing music and record your performances!
50Watts
2 x 8"Speakers
4Channels
At A Glance
• Innovative new Roland technology provides 50 watts of stereo power from eight AA-size batteries
• COSM tones for electric guitar, including Clean, Crunch, and Lead and preamp for acoustic guitar
• Four independent channels for connecting a variety of mics, instruments, and audio devices
• Portable, lightweight design (7.4 kg/16 lb. 5 oz.) with durable ABS injection-molded cabinet
• Selectable output power modes to optimize battery life for different performing situations
• Powerful, full-range stereo sound with dual 8-inch woofers and 2-inch tweeters
Impressive Performance
Equivalent to a Small PA SystemFeaturing 50 watts of stereo power within two eight-inch woofers and two tweeters, the compact CUBE Street EX easily projects your musical performances with dynamic and detailed sound. Thanks to unique new power circuitry developed by Roland, you can enjoy clean headroom and quality sound at a level that’s impossible with any other battery-powered amp.
The output power is adjustable in three levels—Max (50 W), Normal (25 W), and Eco (10 W), so you can conserve battery life in situations where you don’t need full power. In Eco mode, eight AA Ni-MH batteries will last up to 20 hours! The CUBE Street EX can also be powered with the included AC adapter at gigs where electrical power is readily available.

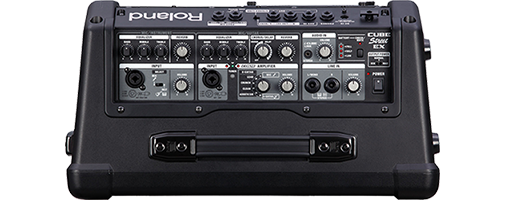

Multiple Inputs to Support Any Performing SetupThe CUBE Street EX has an onboard mixer with four independent channels, offering plenty of connectivity options for all types of performers. Mic/Instrument and Mic/Guitar channels feature XLR/TRS combo jacks to support microphones or devices with 1/4-inch outputs, and each channel is outfitted with its own three-band EQ and reverb effect for discrete sound shaping.

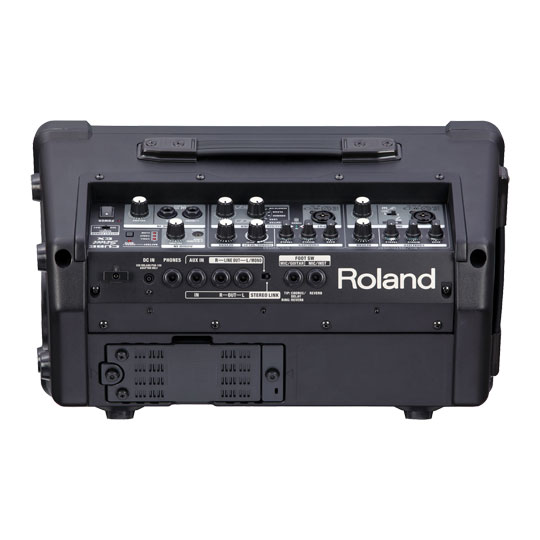

The mono/stereo Line In channel is equipped with 1/4-inch jacks, while the Audio In channel provides a stereo 1/8-inch mini jack that also supports i-CUBE LINK. If you fill up all the channels, you can use the rear-panel Aux In jack to connect an additional mono device if required.
Ideal for all kinds of musical performance situations
Here are just a few...
• Vocal, guitar, synthesizer, and electronic percussion
• Two vocalists, keyboard, and backing tracks
• Electric and acoustic guitar duo with drum machine
• Vocal, guitar, drum machine, and backing tracks
COSM Amps & Effects
Great Guitar TonesThe CUBE Street EX makes getting pro sounds immediately easy for guitarists. COSM tones for electric guitar include Lead, Crunch, and Clean, plus an Acoustic Simulator for extra versatility from a single axe. There’s also an AC preamp optimized for acoustic/electric guitar and a handy built-in tuner. Chorus/delay and reverb effects are available too, and can be turned on/off with optional footswitches while performing.
i-CUBE LINK & CUBE JAMRoland’s innovative i-CUBE LINK interface lets you incorporate your iPhone, iPad, or iPod touch into your performances with the CUBE Street EX. i-CUBE LINK connects to your device’s audio jack with the included cable, providing two-way communication with your favorite music apps.
Roland’s free CUBE JAM app is a perfect partner, allowing you to play along with music tracks from your iTunes library and record the CUBE Street EX’s output right back into the app. CUBE JAM also comes with a number of useful functions for practice, jamming, and performing, such as independent pitch/speed adjustment and Center Cancel for minus-one playing and karaoke.
Stand Mounting
Sound ExpansionWhen placed on the ground, the CUBE Street EX’s angled back makes for excellent monitoring for performing in street situations and on larger stages.

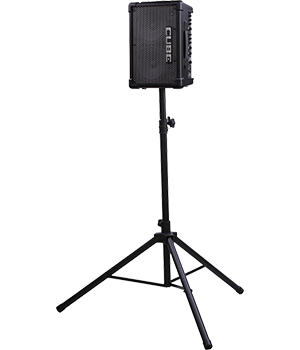

If you need wider sound coverage for bigger crowds, the amp can be mounted on an optional ST-A95 Speaker Stand. With the handy Stereo Link function, two CUBE Street EX units can be used together to create a powerful stereo PA with up to eight separate inputs.
Light & Durable Design
built to lastLike all amps in Roland’s renowned CUBE series, the CUBE Street EX is built to last. Featuring a high-strength ABS injection-molded body that’s passed rigorous durability testing, ensuring reliability in all kinds of outdoor performing situations.
In addition to being tough, the CUBE Street EX is surprisingly light, making the amp a breeze to carry from gig to gig. An optional CB-CS2 Carrying Case provides a convenient shoulder strap and accessory pockets, along with a water-resistant covering that protects the amp from moisture while traveling.
ROLAND CUBE Street EX Battery-Powered Stereo Amplifier
The Tech Spec
| Features | Specifications | Maximum Power Output | 50 W (25 W + 25 W) |
|---|---|
| Nominal Input Level (1 kHz) | MIC/INSTRUMENT INPUT: -50/-10 dBu MIC/GUITAR INPUT: -10 dBu LINE IN: -10 dBu AUDIO IN (i-CUBE LINK): -10 dBu AUX IN/STEREO LINK IN: -10 dBu |
| Nominal Output Level (1 kHz) | LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R): -10 dBu |
| Speakers | Woofer: 20 cm (8 inches) x 2 Tweeter: 5 cm (2 inches) x 2 |
| Controls | POWER switch BATTERY CHECK/MUTE button OUTPUT POWER switch (ECO, NORMAL, MAX) [MIC/INSTRUMENT] SELECT switch (MIC, INST) VOLUME knob BASS knob MIDDLE knob TREBLE knob REVERB knob [MIC/GUITAR] TUNER button TYPE switch (A-GUITAR, ACOUSTIC SIM, CLEAN, CRUNCH, LEAD, MIC) VOLUME knob BASS knob MIDDLE knob TREBLE knob CHORUS/DELAY knob (CHORUS, DELAY) REVERB knob [AUDIO IN] VOLUME knob [LINE IN] VOLUME knob BATTERY CHECK/MUTE button STEREO LINK/LINE OUT switch |
| Indicators | POWER BATTERY BATTERY CHECK/MUTE TUNER |
| Connectors | [MIC/INSTRUMENT] INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), balanced FOOT SW (REVERB) jack: 1/4-inch TRS phone type [MIC/GUITAR] INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), unbalanced FOOT SW (TIP: CHORUS/DELAY, RING: REVERB) jack: 1/4-inch TRS phone type [AUDIO IN] STEREO AUDIO IN (i-CUBE LINK) jack: 4-pole miniature phone type [LINE IN] STEREO LINE IN (L/MONO, R) jacks: 1/4-inch phone type AUX IN/STEREO LINK IN jack: 1/4-inch phone type LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R) jacks: 1/4-inch phone type PHONES jack: Stereo 1/4-inch phone type DC IN jack |
| Power Supply | AC adaptor (DC 13 V) Alkaline battery (AA, LR6) x 8 Rechargeable Ni-MH battery (AA, HR6) x 8(commercially available) Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately) |
| Current Draw | 730 mA |
| Expected battery life under continuous use | [OUTPUT POWER switch: MAX (Maximum power output: 50 W)] Alkaline battery: Approximately 4 hours Rechargeable Ni-MH battery: Approximately 5 hours (*1) Rechargeable Amp Power Pack BTY-NIMH/A (Options(sold separately)): Approximately 10 hours [OUTPUT POWER switch: NORMAL (Maximum power output: 25 W)] Alkaline battery: Approximately 8 hours Rechargeable Ni-MH battery: Approximately 10 hours (*1) Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately)): Approximately 20 hours [OUTPUT POWER switch: ECO (Maximum power output: 10 W)] Alkaline battery: Approximately 16 hours Rechargeable Ni-MH battery: Approximately 20 hours (*1) Rechargeable Amp Power Pack BTY-NIMH/A (Options (sold separately)): Approximately 40 hours *1 When using batteries having a capacity of 2,450 mAh(commercially available). * These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
| Accessories | Owner's manual AC adaptor Power cord Mini cable (4-pole miniature phone type) |
| Dimensions | Width: 490 mm, 19-5/16 inches Height: 305 mm, 12-1/16 inches Depth: 341 mm, 13-7/16 inches |
| Weight | 7.4 kg 16 lbs. 6 oz. |
