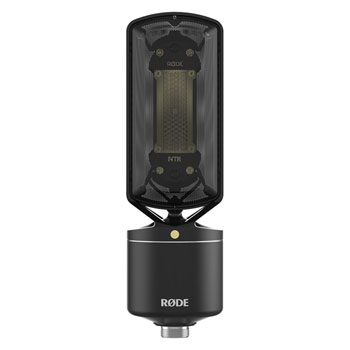

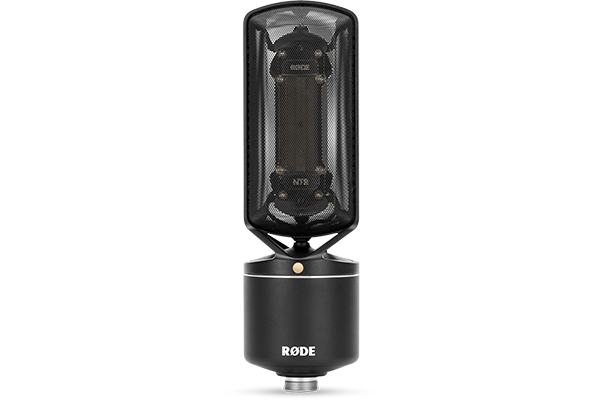

RODE NTR Ribbon Mic
Designed to hang in the world’s finest recording studios and performance halls equally as well as home studio spaces, its existence is a labour of love for RØDE. Every element of the NTR, from the transformer to the ribbon element itself, has been designed and created in-house at RØDE’s headquarters in Sydney, Australia. All with the aim of crafting the finest ribbon microphone available.
Sonically, the NTR is capable of reproducing unprecedented high frequency detail and accuracy, addressing common criticisms of other ribbon microphones, while opening up the possible usage scenarios considerably. This allows it to record sound sources that usually require a more sensitive microphone element.

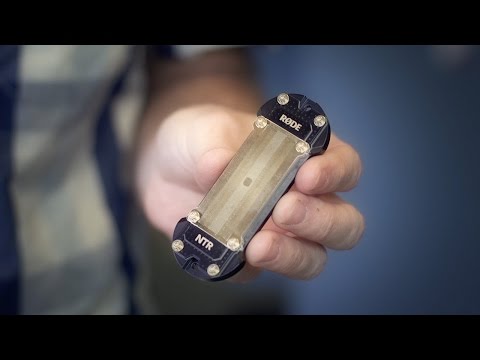

One of the thinnest ribbons in existence
Measuring only 1.8 microns, the NTR ribbon was designed to provide the highest level of sensitivity across the useable frequency response range.
Laser etched element
Most ribbon microphone manufacturers manually cut the element, resulting in microscopic frays along the edges that decay over time. RØDE uses a proprietary laser technique to cut the NTR ribbon, giving a far more precise cut with smooth edges, increasing its longevity.
Internal shock mounting
The NTR’s integrated shock mounting is so effective an external shock mount is not required.
This secures the sensitive ribbon element and shock mount in place when not in use.
Chemically etched all-metal mesh
Extremely rigid while exhibiting super-low density, this results in greater acoustic transparency.

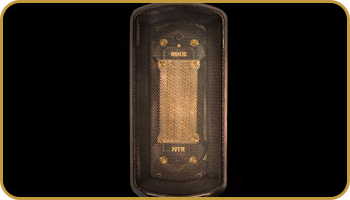

Solid surfaces in the capsule rejection zone
The solid frame around the ribbon capsule is positioned entirely within the rejection zone of the capsule’s bidirectional polar pattern.
The ribbon is mounted distinctly separate to the microphone body, allowing the greatest possible acoustic transparency around the ribbon element and minimising any resonance.
Married to RØDE’s ribbon element is a high output, ultra-low noise, low-impedance transformer. This ensures maximum fidelity between the NTR’s ribbon motor and electronics.
World-class active electronics
In combination with the transformer this allows the NTR to be used with a wide range of preamps without the additional gain requirements of many other ribbon offerings.
10 year warranty
RØDE offers a free extended 10 year warranty on the NTR, following online registration of the microphone on rodemic.com
Ribbon replacement program
An innovative ‘free replacement ribbon’ program allows each NTR owner the option of one free replacement ribbon within the extended warranty period. Features • Highly sensitive 1.8 micron ribbon element
• Bi-Directional Polar Pattern
• Internal Shock Mounting System
• Custom designed and manufactured transformer
• Heavy-duty matte black finish
• Ribbon-securing travel screw supplied
• Designed and manufactured in Australia
• One free ribbon replacement during warranty period
• Ten year extended warranty with online registration
|Polar Pattern (Direction)||Bi-directional (Figure 8)|
|Sensitivity||-30.5dB re 1 Volt/Pascal (30.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz|
|Frequency Response||20Hz - 20kHz|
|Wired / Wireless||Wired|
|Connectors||1 x 3 Pin XLR|
|Including Shock Mount||No|
|Including Pop Shield||No|
|Including Mic Clip||No|
