RME - Word Clock Module for HDSP 9632

For RME HDSP 9632, HDSPe AIO, HDSPe RayDAT RME’s 9632 Word Clock Module is a small companion board to RME's HDSP 9632, and requires no slot on the motherboard. It adds word clock input and outputs to this powerful digital interface card. All connectors are BNC jacks, so there's no hassle with adapters. The module comes with a transformer-isolated input, a switchable termination with LED indication, and two low jitter outputs.

HDSP 9632 includes SteadyClock, ensuring an excellent performance in all clock modes. The highly efficient jitter suppression refreshes and cleans up any clock signal, and provides it as reference clock at the two outputs.

The WCM is connected via one cable to the HDSP 9632, making it already fully operational. The drivers of the HDSP 9632 include support for the WCM.

Thanks to several LEDs (power, termination, LOCK) and the highly integrated concept of installation, first operation and usage are simple even for the inexperienced user.

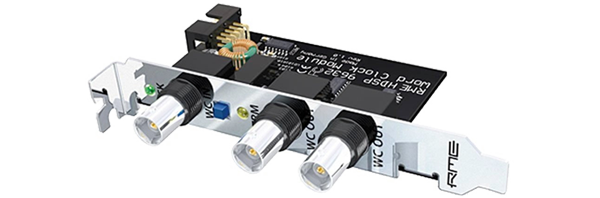

Word Clock Module (WCM)The Word Clock Module (WCM) provides a galvanically isolated word clock input and two word clock outputs (BNC connectors). Both outputs have their own driver stages, providing an extremely low jitter signal. A push switch activates 75 Ohms termination for the hi-impedance input.

SteadyClock, part of the PCI card, guarantees an excellent performance in all clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal, and provides it as reference clock at the two outputs.

Installation is done in a convenient manner using the supplied bracket. No PCI slot on the motherboard is required. The module is internally connected via a 10-pin connector and a flat ribbon cable to the PCI card. Thanks to several LEDs (power, termination, LOCK) and the highly integrated concept of installation, first operation and usage are simple even for the inexperienced user.

Package Contents • Word Clock Module
• Flat ribbon cable, 10 pins
• Quick Info guide
