256-Channel 192 kHz USB Audio Interface

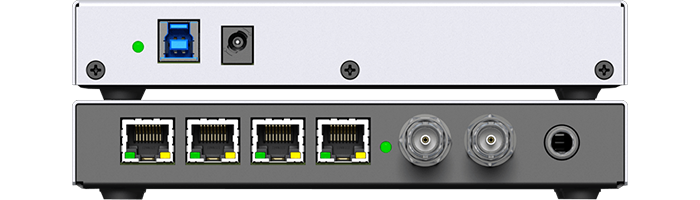

RME - Digiface Dante

RME Digiface Dante

Dante protocol with industry-renowned reliabilityThe Digiface Dante is a lightweight, portable audio interface that combinines Dante network connectivity and features with everything that RME is renowned for - USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation. Dante is an audio over IP protocol by Audinate. The Digiface Dante is a USB 3.0 from/to Dante interface, adding an external and fully mobile option to the internally used Dante PCIe card.

Digiface Dante uses RME's matured MADIface Series driver for Windows and macOS, with the lowest latency and industry leading stability. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output provide a quick listen to any audio channel, but can also be used as line output to provide an additional analogue stereo mixdown. Equipped with the largest Dante module 64 channel can be sent and received via network.

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Dante and MADI, 128 channels, are transferred via USB 3.0 and handled via both Dante control software and RME's TotalMix FX, for full and struggle-free control of all audio.

At A Glance • 256-Channel 192 kHz Dante/MADI/USB 3.0 Audio Interface
• Stream up to 64 channels of 192kHz audio using Dante network
• Dual Word Clock ports can function as a MADI I/O with up to 64 extra channels
• 2 banks of redundant Dante ports can work as a switch, connecting up to 4 network lines
• TotalMix FX mixing software offers unlimited input and output routing options
• Can be used as a handy 64-channel Dante-to-MADI converter sans USB

Connectivity & Features

RME USB 3.0

RME USB 3.0

1 x Phones Output

1 x Phones Output

TotalMix FX

TotalMix FX

ARC USB

ARC USB

Word Clock I/O

Word Clock I/O

4 x Gigabit Ethernet

4 x Gigabit Ethernet

1 x MADI I/O coaxial

1 x MADI I/O coaxial

DC-coupled Outputs (Phones)

DC-coupled Outputs (Phones)

Explore New Ways to Transport Audio

RME Digiface Dante

AVB & Dante Network SolutionFeaturing two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also provides the functionality of a switch, connecting up to 4 network lines, removing the need for further switches to distribute and collect network lines, or offers redundancy operation with 2-port connectivity for both the primary and secondary network.

Used without USB the Digiface Dante automatically turns into a 64-channel Dante / MADI converter. The analogue stereo output can be preconfigured to send out a mix of exactly those channels that are needed. Full network redundancy and switch functionality are also available. With USB bus power operation and an external power supply connection a stable and redundant power supply is ensured. As Dante has become AES67 compatible, the Digiface Dante supports another format on the network side for even greater flexibility and more applications.

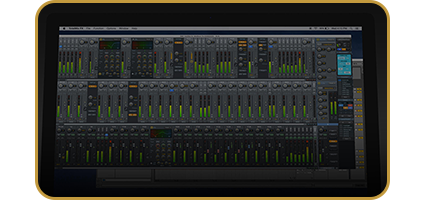

TotalMix FX & TotalMix Remote

RME Digiface Dante

powerful performanceJust like all the latest RME interfaces, the Digiface Series also comes with the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

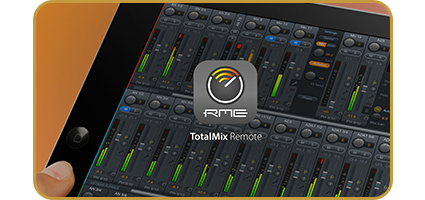

Additionally RME’s latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a simple set up process — just enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

Mixing/Routing with superior features for Studio and Live Work

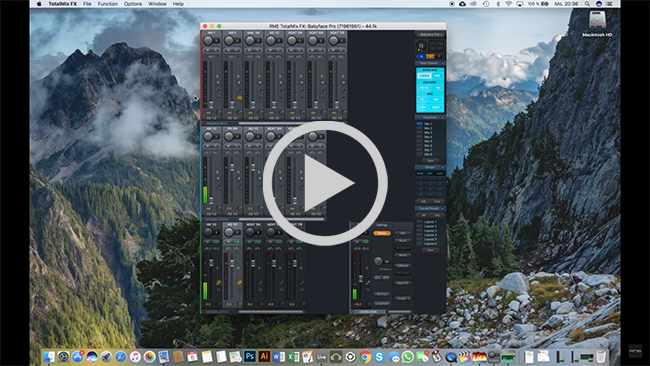

TotalMix FX

TotalMix FXSince 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

Transport Audio with Low Latency & Industry Leading Stability

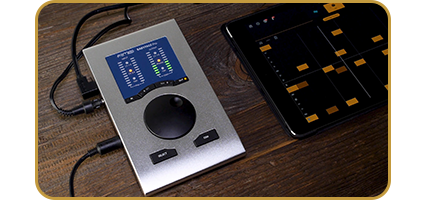

RME USB

RME USBUse your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay.

The Secret Weapon of High Resolution Audio Measurements

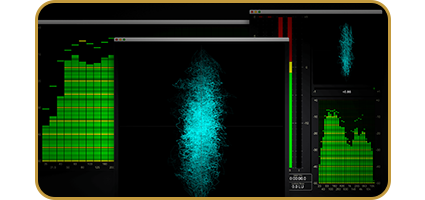

DigiCheck

DigiCheckRME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

RME Audio DIGICheck - Test, Measurement and Analysis Tool

DigiCheck - Test, Measurement and Analysis Tool for Mac & WindowsThe Interface comes with RME's unique software tool box for metering, testing, measuring and analyzing digital audio streams. On Mac OS X provides unique functions and features of the spectral analysis of the data calculated in hardware level right through to sophisticated multi-channel level meter. On Windows, an additional multi-track recorder and the display of playback data from an audio software are also available.

The Tech Spec

Features Specification
Computer Connectivity Ethernet
Form Factor Desktop
Simultaneous I/O 64 x 64 (Dante), 64 x 64 (MADI)
A/D Resolution Up to 24-bit/192kHz
Headphones 1 x 1/4"
USB 1 x Type B 3.0
Data I/O 2 x RJ-45 (primary), 2 x RJ-45 (secondary)
Network Dante, MADI
Clock I/O In/Out
Software TotalMix FX, TotalMix Remote (iOS, PC, Mac)
Bus Powered Yes
Power Supply 9V-15V DC power supply (sold separately)
Specifications
Computer Interface Type AVB Ethernet
Connections (Input) 1 x Headphone (TRS 6.35mm Jack)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
Dimensions (mm)
DSP Processing No
