RME ADI-2 FS 2 Channel AD/DA Converter

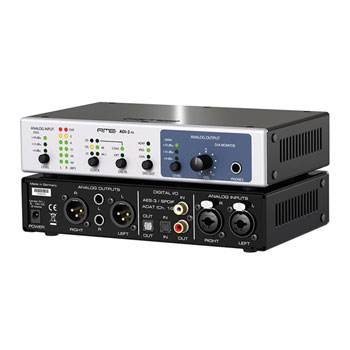

Simply Get ConnectedThe ADI-2 FS is a compact and extremely flexible 2-channel Hi-End AD/DA-converter. The small 9.5" unit offers first-class AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz providing outstanding compatibility. Whatever it is - simply get connected!
1 x Stereo Analog I/O
1 x ADAT I/O
1 x SPDIF I/O
1 x Phones Output
SteadyClock FS
Unexpected Versatility

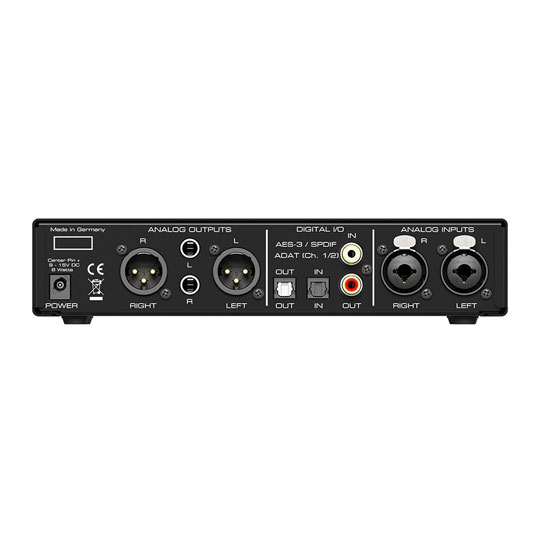

Connectivity and Features The ADI-2 FS is equipped with two servo-balanced analog line inputs via XLR/phones combo jacks, simultaneously usable balanced XLR and unbalanced phone jacks, an adjustable High Power headphone output on the front, SteadyClock FS for optimal conversion quality, an ADAT compatible optical SPDIF I/O, and a coaxial SPDIF I/O (RCA, AES/EBU compatible). These extensive connectivity options provide most flexible and uncompromised signal transmission.
High Power Headphone Output
Extreme Power output stage The ADI-2 FS uses a down-scaled version of the ADI-2 Pro's Extreme Power output stage. With power of up to 0.7 watts per channel, 0.1 ohm output impedance, a maximum output level of +19 dBu and very low THD (-110 dB), the High Power circuitry is universally applicable. A relay ensures click-free on and off switching.
The AD/DA Tech Spec
| Features | Specification |
|---|---|
| Signal to Noise ratio (SNR) @ +19 dBu | 117 dB RMS unweighted, 121 dBA |
| Frequency response | @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz |
| Frequency response | @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz |
| Frequency response | @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz |
| THD @ -1 dBFS | -114 dB, 0.00015 % |
| THD+N @ -1 dBFS | -112 dB, 0.00025 % |
| Channel separation | > 110 dB |
| Max Input Level AD | +19 dBu |
| Input | XLR or 1/4" TRS, electronically balanced |
| Input impedance balanced | 36 kOhm, unbalanced: 18 kOhm |
| Input sensitivity switchable | +4 dBu, +13 dBu, +19 dBu @ 0 dBFS |
DA Specifications
| Features | Specification |
|---|---|
| Signal to Noise ratio (SNR) | 117 dB RMS unweighted, 120 dBA |
| Frequency response | @ 44.1 kHz, -0.1 dB: 10 Hz – 20.2 kHz |
| Frequency response | @ 96 kHz, -0.5 dB: 5 Hz – 44.9 kHz |
| Frequency response | @ 192 kHz, -1 dB: 3 Hz – 88 kHzz |
| THD @ -1 dBFS | -114 dB, 0.00015 % |
| THD+N @ -1 dBFS | -110 dB, 0.00032 % |
| THD @ -3 dBFS | -116 dB, 0.00016 % |
| Channel separation | > 110 dB |
| Max Output Level DA | +19 dBu |
| Output | XLR balanced, 1/4" TRS unbalanced/balanced |
| Output impedance balanced | XLR balanced 150 Ohm, TS unbalanced 100 Ohm |
| Output level switchable | +4 dBu, +13 dBu, +19 dBu @ 0 dBFS |
