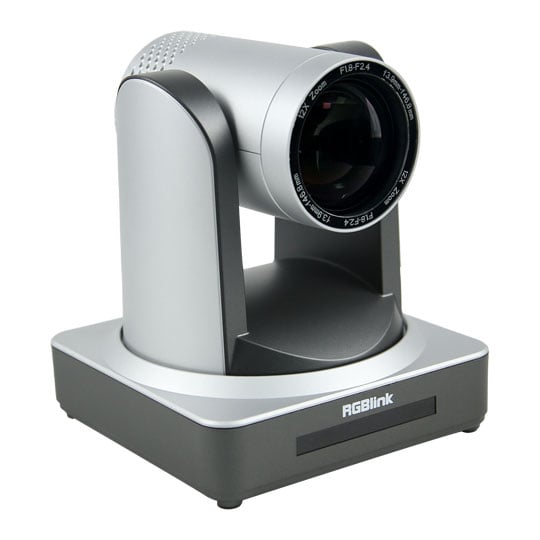

RGBlink PTZ IP Camera 12x
RGBlink RGB12X-PTZ-WH PTZ IP Camera, 12x Optical Zoom, 1080p60, HDMI/SDI, 3.5mm Audio, 72.5° Field of View
Email me when the availability or price changes
RGBlink - 'PTZ Camera 12x'
Professional PTZ CameraWhether outputting to HDMI, SDi or IP, RGBlink PTZ cameras provide a host of onboard features and functions. Advanced ISP image processing and algorithms enhance image performance from the sensor.
Full 340 degree horizontal and 120 vertical range along with up to a wide, 72.5 degree viewing angle are provided. Making RGBlink cameras suitable for demanding applications whether short throw or long.
Precision Motor Drive Control
Precise Head ControlWith built-in high precision motor drive control, the camera can be re-positioned in under a second by 60 degrees and a zoom speed of 0.1degree. Whether large movement or small, multi-speed movement is not only smooth and accurate, but super quiet. Automatic focussing powered with advanced algorithms enhances overall performance aiding ease of operation.
12x Optical & 10x Digital Zoom
12X Optical ZoomRGBlink PTZ cameras offer embedded 2D & 3D noise reduction and ISP image processing technology. The result is clear, vivid and balanced video regardless of zoom angle.
Store Up To 255 Presets
Multi-Scene PresetCreate and store up to 255 presets with position, zoom and focus via the web interface. Assign presets to buttons for instant recall.
Web Based Interface
Web PreviewPreview video and control camera via the web-browser based interface simply by connecting on a LAN. Use any video output for monitoring.
Full Interface Multi-ProtocolRGBlink PTZ cameras offer wide compatibility and interconnectivity in support of the broad range of application possibilities. Video connections are provided for SDI and HDMI as well as for IP based protocols. Control protocols include RTSP, VISCA and PELCO.
The Tech Spec

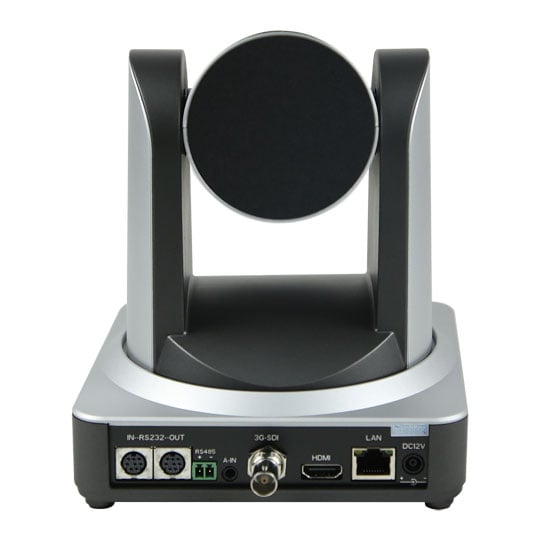

| Features | Specification | Video Output | 1x HDMI-A 1x BNC SDI |
|---|---|
| Audio Input | 1x 3.5mm mini-jack |
| Network | 1x RJ45 |
| RS232 | 2x DIN-8 |
| RS485 | 1x2 way Terminal Connector |
| Power | 1× HEC3800 DC Socket |
| Optical Zoom | 12x f=3.9～46.8mm |
| Digital Zoom | 10x |
| Viewing Angle | 12x 6.3°～72.5° |
| AV | 12x f1.8～f2.4 |
| Illumination | Min 0.5 lux (F1.8, AGC ON) |
| Noise Reduction (DNR) | 2D & 3D |
| White Balance | Auto | Manual | One Push | 3000K | 3500K | 4000K | 4500K | 5000K | 5500K | 6000K | 6500K |7000K |
| White Range (WDR) | OFF | Dynamic |
| Focus | Auto | Manual |
| Aperture/Shutter | Auto | Manual |
| BLC | ON | OFF |
| Adjustments | Brightness | Color | Saturation | Contrast | Sharpness | B/W | Gamma Curve |
| SNR | >55dB |
| Pixels | 2.07m, 16:9 |
| Pan | -170°～+170° |
| Tilt | -30°～+90° |
| Pan Speed | 0.1sec ～60° |
| Tilt Speed | 0.1sec～30°/S |
| Presets | Up to 255 |
| Output Resolutions | SDI | HDMI: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60 H.264 | H.265: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60 |
| Standards Supported | SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI HDMI: 1.3 IP Streaming: H.264 | H.265 Audio: AAC | MPEG3 | G.711A PTZ Control: VISCA | Pelco-D | Pelco-P Network: RTSP | RTMP | ONVIF | GB/T28181 | VISCA |
| Input Voltage | DC12V/1.5A (via Plug Pack supplied) |
| Max Power | 12W |
| Temperature | -10℃～50℃ |
| Humidity | 20%～80% RH |
| Weight | 1.4kg |
| Dimensions | 150mm x 150mm x 167.5mm |
