Scan code: LN149031 Manufacturer code: X670E GAMING PLUS WIFI

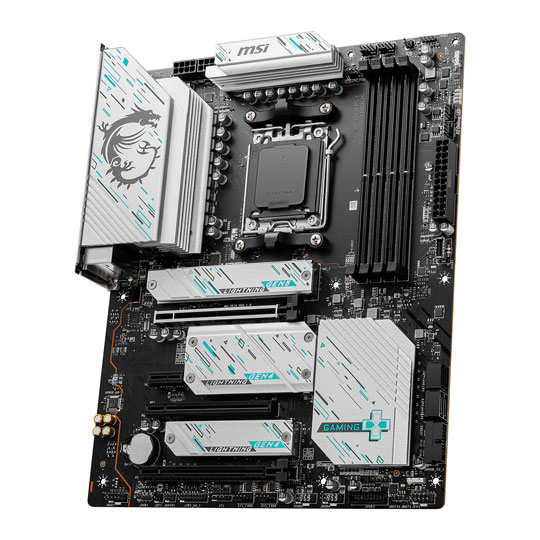

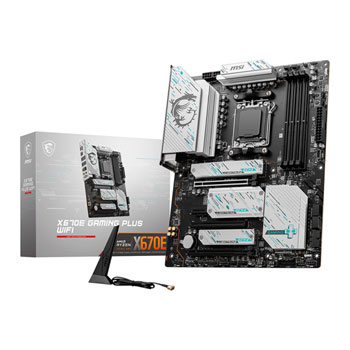

MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Open Box Motherboard

Open Box MSI X670E GAMING PLUS WIFI,AMD X670,S AM5,D5,SATA,PCIe 5.0,4x M.2,2.5GbE/WIFI 6E,USB 3.2 Gen2x2,AMD EXPO,ATX

Thumbnail 1 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Open Box  Motherboard Thumbnail 2 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Open Box  Motherboard Thumbnail 3 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Open Box  Motherboard Thumbnail 4 : MSI AMD X670E GAMING PLUS WIFI DDR5 ATX Open Box  Motherboard
Scan code: LN149031 Manufacturer code: X670E GAMING PLUS WIFI
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Was: £249.98
£224.99
Get it Tomorrow, 20 JulIn stock
From £10.99 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £20.39
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £224.99
Total inc. interest: £244.58
Monthly Payment: £10.99
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £224.99
Total inc. interest: £263.65
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Win the Competition

The X670E GAMING PLUS WIFI is a gaming oriented ATX motherboard constructed around the latest AMD X670 chipset that balances value with premium hardware.


Supports AMD Ryzen 7000 Series Processors

The X670E GAMING PLUS WIFI motherboard supports AMD Ryzen 7000 processors.


14+2+1 Duet Rail Power System with 80A Smart Power Stage

With its dual 8 pin power connectors and exclusive Core Boost technology, the X670E GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.


Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronise cooling with strategically placed pin-headers - including a dedicated pump-fan header.


Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


4 x DDR5 Dual Channel (7800+ MHz OC)

A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimised memory speed and stability.


Gen5 M.2 Connectors

The X670E GAMING PLUS WIFI motherboard features MSI's latest M.2 slots.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


Gen5 M.2 Connectors

The X670E GAMING PLUS WIFI motherboard features MSI's latest M.2 slots.


Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.


USB 3.2 Gen 2x2 Type-C

Connect to devices and transfer files at high bandwidth rates: 20Gb/s.


HD Audio

8-Channel (7.1) HD Audio with Audio Boost.

Features


• Extended Heatsink Design.
• Latest DDR5 Memory.
• Lightning Gen 5.
• Core Boost.
• Memory Boost.
• M.2 Shield FROZR
• Wi-Fi 6E.
• 2.5G Network Solution.
• Lightning USB 20G.
• Audio Boost.

Specifications
Core Specifications
Edition MAG X670E GAMING PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD X670E
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x LED connector
  • 6 x System Fan header
  • 1 x TPM 2.0 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG

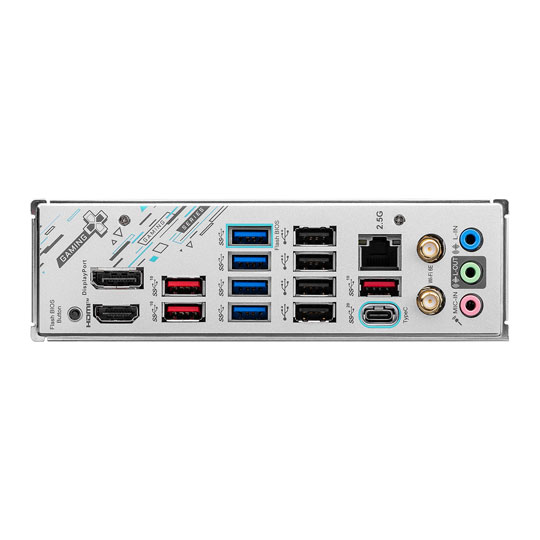

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Rear Speaker Out
  • 4 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN149031
Model Number X670E GAMING PLUS WIFI
GTIN 4711377170345
