Refurbished
Scan code: LN136766 Manufacturer code: PRO B650-P WIFI

MSI AMD PRO B650-P WIFI AM5 DDR5 ATX Refurbished Motherboard

Refurbished MSI PRO B650-P WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX

MORE INFO
MORE INFO
Thumbnail 1 : MSI AMD PRO B650-P WIFI AM5 DDR5 ATX Refurbished Motherboard Thumbnail 2 : MSI AMD PRO B650-P WIFI AM5 DDR5 ATX Refurbished Motherboard Thumbnail 3 : MSI AMD PRO B650-P WIFI AM5 DDR5 ATX Refurbished Motherboard Thumbnail 4 : MSI AMD PRO B650-P WIFI AM5 DDR5 ATX Refurbished Motherboard
Scan code: LN136766 Manufacturer code: PRO B650-P WIFI
Order by 8:30 PM today and get it tomorrow (upgrade to Saturday delivery at checkout)
£179.99
Add To Basket
Get it Tomorrow, 09 DecIn stock
From £15.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £179.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 11th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Business Elegance

The PRO B650-P WIFI is a business-oriented ATX motherboard featuring the latest AMD B650 chipset that includes ample RAM capacity.


Supports AMD Ryzen 7000 Processors

The PRO B650-P WIFI motherboard supports AMD Ryzen 7000 processors.


Integrated Cooling Features

• VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
• PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
• SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
• System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan


Gen4 M.2 Connectors

The PRO B650-P WIFI motherboard features MSI's latest M.2 slots.


Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


Memory Boost

A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.


2.5G LAN

A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.


Wi-Fi 6E

Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.


USB 3.2 Gen 2x2 Type-C

Connect to devices and transfer files at high bandwidth rates: 20Gb/s.


HD Audio

7.1-Channel High Definition Audio with Audio Boost.


Features


• Latest DDR5 Memory.
• Lightning Gen 4 Solution.
• Wi-Fi 6E.
• Extended Heatsink Design.
• M.2 Shield FROZR.
• 2.5G Network Solution.
• EZ Debug LED.
• Core Boost.
• Memory Boost.

Specifications
Core Specifications
Edition PRO B650-P WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG

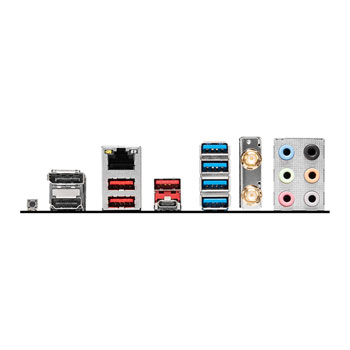

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 304.8mm mm
Note
Additional Information
Scan Code LN136766
Model Number PRO B650-P WIFI
GTIN 4711377010177
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
