Refurbished
Scan code: LN135362 Manufacturer code: MPG B650I EDGE WIFI

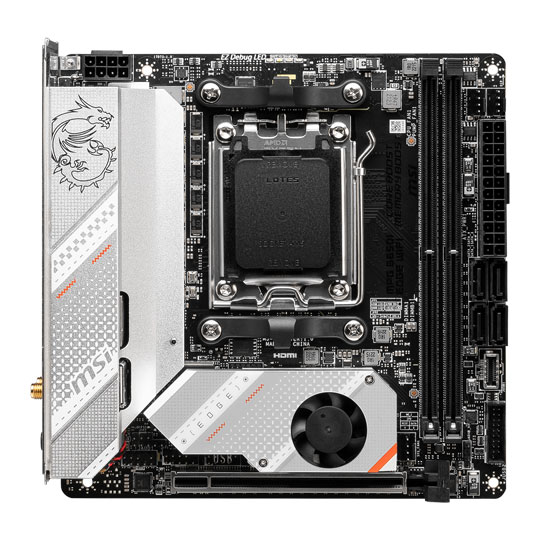

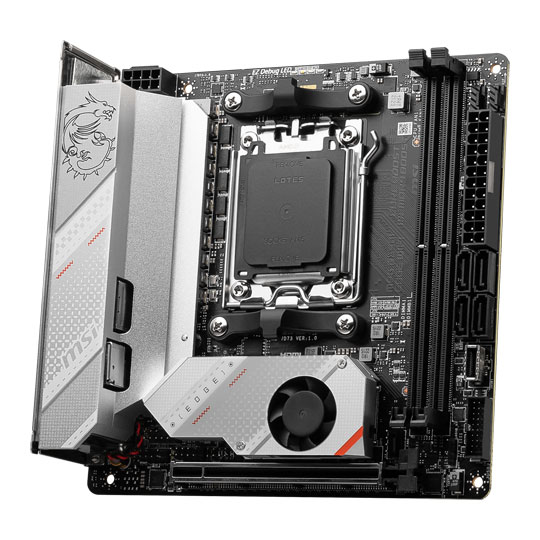

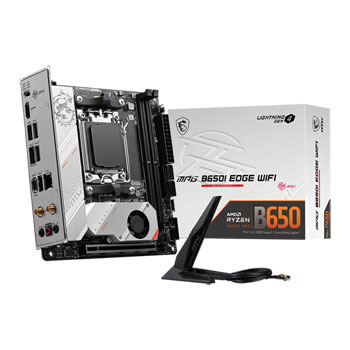

MSI AMD B650I EDGE WIFI AM5 PCIe5 DDR5 Mini-ITX Refurbished Motherboard

Refurbished MSI MPG B650I EDGE WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, AMD EXPO™, Mini-ITX

Thumbnail 1 : MSI AMD B650I EDGE WIFI AM5 PCIe5 DDR5 Mini-ITX Refurbished Motherboard Thumbnail 2 : MSI AMD B650I EDGE WIFI AM5 PCIe5 DDR5 Mini-ITX Refurbished Motherboard Thumbnail 3 : MSI AMD B650I EDGE WIFI AM5 PCIe5 DDR5 Mini-ITX Refurbished Motherboard Thumbnail 4 : MSI AMD B650I EDGE WIFI AM5 PCIe5 DDR5 Mini-ITX Refurbished Motherboard
Scan code: LN135362 Manufacturer code: MPG B650I EDGE WIFI
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£199.99
Get it Tomorrow, 20 JulIn stock
From £9.77 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £18.12
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £217.42
Monthly Payment: £9.77
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £234.33
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Perform in Style

The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.


Supports AMD Ryzen 7000 Processors

The MPG B650I EDGE WIFI motherboard supports AMD Ryzen 7000 processors.


Direct 8+2 Phase VRM with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650I EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings.


1 x Fortified PCI-e 4.0 x16 Slot

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen4 M.2 Connectors

The MPG B650I EDGE WIFI motherboard features MSI's Gen4 M.2 slots.


M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

Features

• Extended Heatsink Design.
• Lightning Gen4 Solution.
• Memory Boost.
• Core Boost.
• 2.5G Network Solution.
• Wi-Fi 6E.
• M.2 SHIELD FROZR.
• 2oz Thickened Copper PCB.

Specifications
Core Specifications
Edition MPG B650I EDGE WIFI
Form Factor Mini-ITX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x System Fan header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x 802.11ax WiFi + BT5.2

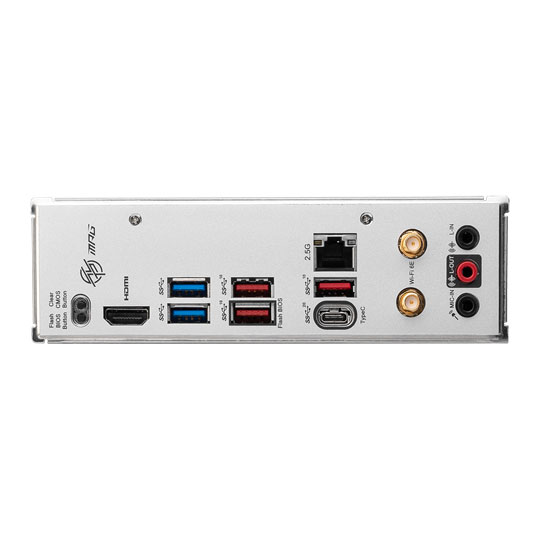

Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN135362
Model Number MPG B650I EDGE WIFI
GTIN 4711377010146
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
