MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
SaleRefurbished
MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
Scan code: LN140676 Manufacturer code: MPG B650 EDGE WIFI
Was: £209.99
£199.99
Add To Basket
Get it Tomorrow, 06 OctIn stock
  • Thumbnail 1 : MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
  • Thumbnail 2 : MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
  • Thumbnail 3 : MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
  • Thumbnail 4 : MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard
SaleRefurbished

MSI AMD B650 EDGE WIFI AM5 Refurbished ATX Motherboard

Refurbished MSI MPG B650 EDGE WIFI, AMD B650, S AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX
MORE INFO
MORE INFO

Scan code: LN140676 Manufacturer code: MPG B650 EDGE WIFI
Was: £209.99£199.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Add To Basket
Get it Tomorrow, 06 OctIn stock
  • By DPD On 7th Oct Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £9.77 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £18.12
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £199.99
    Total inc. interest: £217.42
    Monthly Payment: £9.77
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £199.99
    Total inc. interest: £234.33
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Perform in Style

The MPG B650 CARBON WIFI is a gaming oriented ATX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.


Supports AMD Ryzen 7000 Processors

The MPG B650 CARBON WIFI motherboard supports AMD Ryzen 7000 processors.


14+2+1 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650 EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings.


Fortified PCI-e 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen5 M.2 Connectors

The MPG B650 CARBON WIFI motherboard features MSI's latest M.2 slots.


M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

Features

• Premium Thermal Design.
• Latest DDR5 Memory.
• Lightning Gen 5 Solution.
• M.2 Shield FROZR.
• Wi-Fi 6E.
• 2.5G Network Solution.
• Lightning USB 20G.
• Audio Boost 5.
• Memory Boost.

Specifications
Core Specifications
Edition MPG B650 EDGE WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x2 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED connector
  • 2 x RGB LED connector
  • 6 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x 802.11ax WiFi 6E + BT5.2

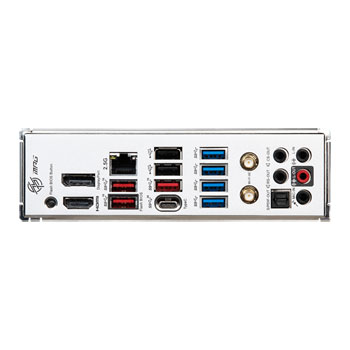

Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN140676
Model Number MPG B650 EDGE WIFI
GTIN 4711377010191
