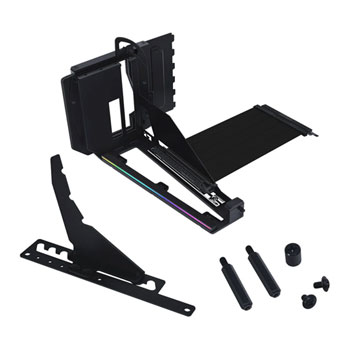

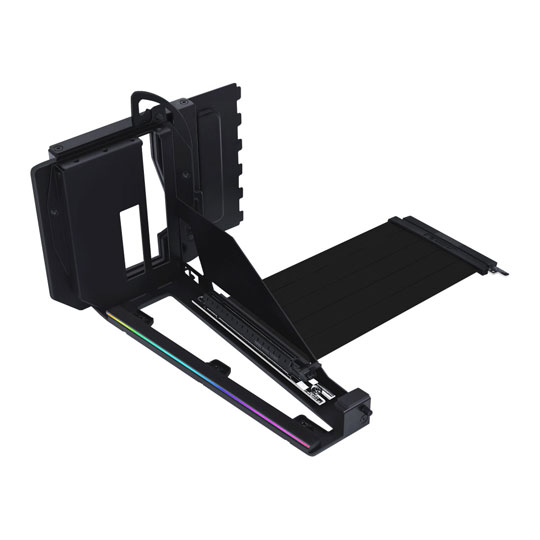

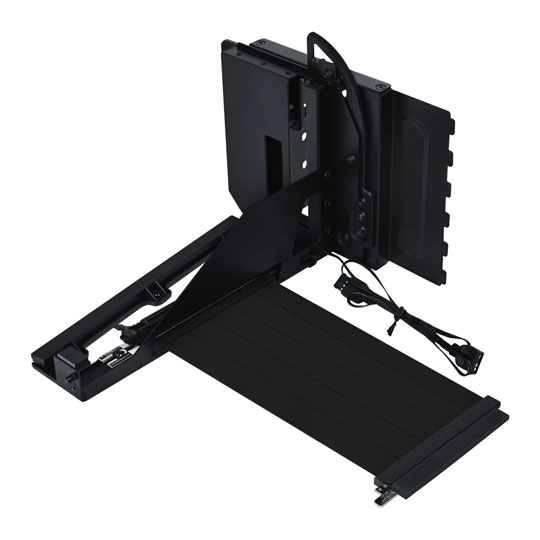

Refurbished 200mm Lian Li 4-slot Vertical GPU Kit v4 with ARGB PCIe 5.0 Riser Black

Lian Li 4 Slot Vertical GPU Kit (VG4v4)

The Lian Li 4-Slot Vertical GPU Kit transforms how you display and install your graphics card by mounting it vertically instead of the traditional horizontal layout. This vertical orientation not only elevates the visual appeal of your build - placing the GPU front and centre when viewed through a side panel - but also gives practical benefits: improved airflow, better clearance and enhanced compatibility with triple or quad-slot GPUs. The kit combines adjustable mounting height and angle, sturdy support to prevent sagging, and a high-bandwidth riser cable to ensure performance remains uncompromised. Slimline enough to fit most ATX-class chassis yet robust enough to support heavy modern GPUs, this bracket kit is an elegant solution for builders seeking both form and function.

Note: The VG4v4 is designed to be installed with the screws already included with your case. Simply use the PCI-E bracket screws from your chassis, and up to four screws (commonly the same type as PSU screws) to secure your GPU firmly in place.

Three-Level Height Adjustment

The bracket provides three mounting heights, each adjustable in 10.16mm increments with a simple one-screw adjustment, enabling precise GPU positioning and allowing clearance for bottom fans or larger CPU coolers with ease.

Adjusting the bracket to Level 2 or Level 3 improves compatibility with bottom-mounted fans or radiators.

Lowering the bracket to Level 1 enhances the visibility of AIO liquid coolers with built-in displays.

Three Display Angles

Each height level supports forward, neutral, and backward display angles, with dedicated mounting holes on the support arm for each position. All adjustments are quick, precise, and completely tool-free.

Forward Position
A forward tilt not only boosts airflow and thermal efficiency but also ensures better clearance for high-performance coolers.

Backward Position
A backward tilt showcases the graphics card with a more refined and visually appealing angle.

Reliable Anti-Sag Support

The anti-sag arm supports up to 10kg without bending and mounts directly to the motherboard standoffs. Also, it offers adjustable height settings for precise alignment, working seamlessly with 4-slot GPU configurations supported by the bracket.

Users can adjust the height of the support arm based on the height settings of the bracket. Multiple height options ensure compatibility, including adjustments after rotation.

Note: This anti-sag bracket is not compatible with GPU brackets installed in PCIe slots 3 through 8, so ensure compatibility based on your specific setup. Please check the GPU’s display height and tilt position, and adjust the support bracket before installation.

Dual Anti-Sag Support for ATX/M-ATX and E-ATX

The bracket offers two anti-sag configurations for secure installation across multiple board sizes. ATX and M-ATX share a standard support arm, while E-ATX uses its own extension arm for proper alignment and clearance.

A Touch of Brilliance

The built-in 5V ARGB lighting integrates effortlessly with major motherboard lighting software. Vivid effects bring the build to life and add visual depth to the system’s core.

Enhanced GPU Stability

The rubber pad has been refined to a slimmer profile, preventing the graphics card from being pushed upward and dislodged, ensuring a smoother and more secure installation experience.

Expanded Rear Bracket for Better Case Compatibility

The extended rear bracket design increases overall mounting length, improving compatibility with a wider range of cases. The enlarged rear opening also provides additional clearance, making it easier to plug in thicker HDMI cables and ensuring a smoother, interference-free installation.

PCIe 5.0 Cable Built for High Speed and Full Compatibility

The 200mm PCIe 5.0 riser cable delivers up to 32Gb/s bandwidth, which is twice the speed of PCIe 4.0. It supports PCIe 2.0 to 4.0 devices and ensures stable signal transmission with consistently high performance across wide range of GPUs.

Made to Match, Built to Adapt

This bracket features an adjustable slot design, supporting up to six slots for vertical installation or seven slots for angled mounting. It accommodates GPUs up to four slots thick, ensuring a perfect and secure fit for even the most high-end graphics cards.

Note: Once installed, the bracket shifts the GPU forward by 31mm. Please ensure your case has sufficient internal depth, as more compact chassis may have limited clearance.

Cases Support

In addition to LIAN LI cases, any chassis from other brands that meets the above specifications can also be paired with the bracket. Users can purchase it separately for flexible use, making it an easy upgrade option for most standard ATX setups.

LANCOOL 217INF/ 217 / 207D / 207 / 206 / 216 / III / 205 / 215
O11 Vision Compact / O11 Vision
O11D EVO RGB / O11D EVO RGB Lamborghini / O11D EVO / O11D EVO XL
Vector V100
O11D MINI V2 (limited use)

• Supports forward, neutral, and backward tilt for versatile GPU display angles.
• Three-level height adjustment with 10.16mm increments.
• Reinforced support arm rated up to 10kg.
• Integrated 5V ARGB lighting with full motherboard software synchronisation.
• 200mm PCIe 5.0 riser cable delivering up to 32Gb/s bandwidth.
• PCIe 2.0–4.0 backward compatible riser cable.
• ATX case compatible, supporting GPUs up to four slots thick.
• Dimensions (W x H x D): 147.5mm x 234.86mm x 168.63mm.
