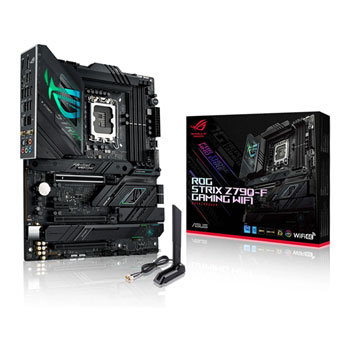

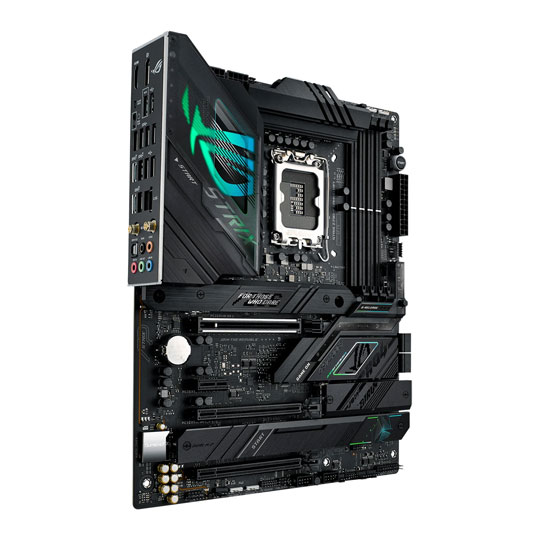

Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
Refurbished
Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN158516 Manufacturer code: 90MB1CP0-M0EAY0/refurbish
£324.98
Add To Basket
Get it Tomorrow, 16 JulIn stock
  • Thumbnail 1 : Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
Refurbished

Refurbished ASUS ROG STRIX Z790-F GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard

Refurbished ASUS ROG STRIX Z790-F GAMING WIFI, Intel Z790, S1700, D5, PCIe 5.0, 4x M.2, 2.5GbE, ax WiFi/BT, USB 3.2 Gen2
MORE INFO
MORE INFO

Scan code: LN158516 Manufacturer code: 90MB1CP0-M0EAY0/refurbish
£324.98
Order by 8:30 PM today and get it tomorrow
Add To Basket
Get it Tomorrow, 16 JulIn stock
Pay in 3 interest-free payments of £108.33

Email me when the availability or price changes

  • By DPD On 16th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • With a 10% deposit from just £8.64 / month (APR 19.9%)
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview

Intel® LGA 1700 Socket

Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors.


Robust Power Solution

16 + 1 power solution rated for 90A per stage with with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.


Optimised VRM Thermals

Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe.


High-Performance Networking

On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.


Intelligent Control

ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance.


Immersive Gaming Audio

ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III.


Unmatched Personalisation

ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers.


DIY-Friendly Design

PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button.


Renowned Software

Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.

Features

• 1 x PCIe 5.0 x16 slot.
• 4 x DDR5 DIMM, Max. 128GB.
• Wi-Fi 6E with Bluetooth 5.2.
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080.
• Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4.
• Ample M.2 Support: One PCIe® 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks.

Specifications
Core Specifications
Edition ROG STRIX Z790-F GAMING WIFI
Form Factor ATX
CPU Socket 1700
Chipset
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 4 x USB 2.0 Type-A Port
  • 1 x USB 3.1 Gen1 Header
  • 4 x USB 3.1 Gen1 Port
  • 2 x USB 3.2 Gen 2 Type-A
  • 1 x USB 3.2 Gen2 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x USB 3.2 Gen2x2
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 49 x 305 mm
Note
Additional Information
Scan Code LN158516
Model Number 90MB1CP0-M0EAY0/refurbish
GTIN 4711081938590
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
