ASUS ROG STRIX B850-A GAMING WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX B850-A Gaming Wi-Fi AMD AM5 Motherboard

Elevate your build with the ROG Strix B850-A Gaming Wi-Fi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and Wi-Fi 7, it's the ultimate blend of style and performance.

ASUS AI Intelligence

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of Wi-Fi 7.

EZ PC DIY

With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot. The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD. The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press. This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation. With Q-Antenna, attaching a Wi-Fi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

PCIe 5.0

Fully embracing the new standard, the Strix B850-A offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.

Power Design

1: Power Architecture
The VRM features 14+2+2 power stages, each rated to handle 80 amps.

2: Alloy Chokes and Durable Capacitors
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

3: Eight-Layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Memory

For those who want to fly past stock DDR5 speeds, the Strix B850-A is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

Cooling

Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors. High-quality thermal pads are utilised between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures. An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted. Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

Networking

The revolutionary Wi-Fi 7 is faster than standard Wi-Fi 6, thanks to tech like 160 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT. Onboard Intel 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

ASUS Wi-Fi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors.
• Intelligent Control: ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance.
• Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors.
• Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover.
• Latest M.2 Support: One onboard PCIe® 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions.

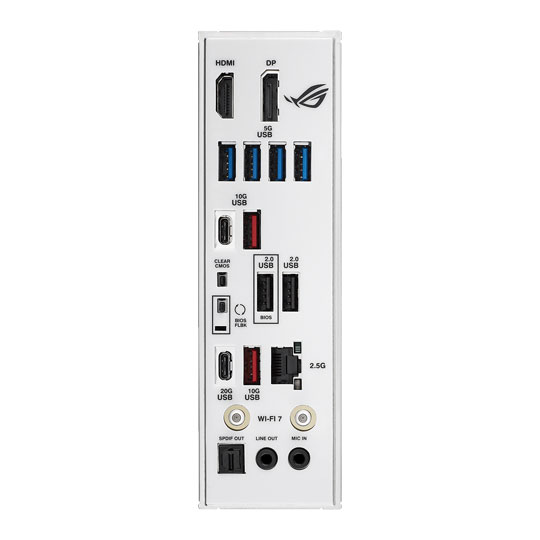

• Abundant Connectivity: USB 20Gbps Type-C®, USB 10Gbps Type-C®, USB 10Gbps Type-C® front-panel connector, six additional USB 5Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port and DisplayPort port.
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with Intel 2.5 Gb Ethernet.
• DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield.
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos.
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers.
• Renowned Software: ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
