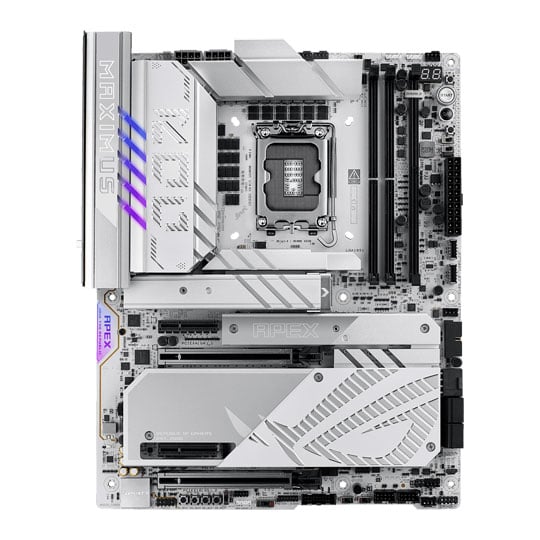

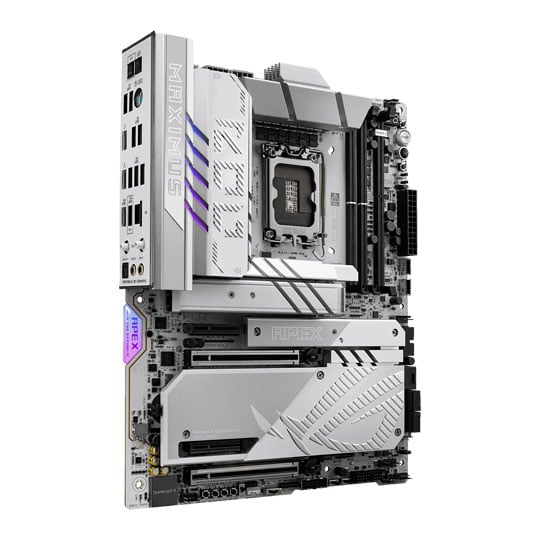

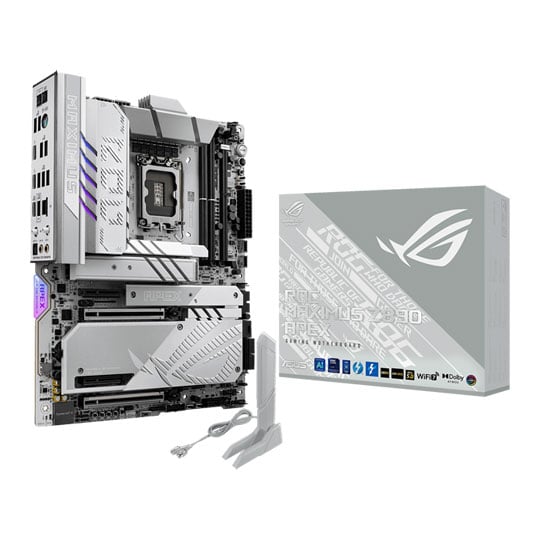

ASUS ROG MAXIMUS Z890 APEX DDR5 PCIE 5.0 ATX Motherboard

ROG Maximus Z890 HERO

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

ASUS AI Intelligence

AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI Networking II

Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.
Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength?
Direction Finder
Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
Gamefirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.

ASUS AI Advisor

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

DDR5 Domination

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Extreme, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

DIMM Fit

DIMM Fit offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.

NitroPath DRAM Technology

NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

ROG Ultimate Power Solution

8 + 8-pin ProCool II power connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
24+1+2+2 Power Stages
The VRM features 24+1+2+2 power stages, each rated to handle up to 110 amps.
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cutting-Edge Thermal Management

VRM and aluminium I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
3D VC M.2 Heatsink
The 3D vapour chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalisation plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.
High-conductivity thermal pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
M.2 heatsinks and backplates
Large aluminium heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.
Chipset heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

Four Onboard M.2 Slots

The ROG Maximus Z890 Extreme features four onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the other offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

ROG M.2 PowerBoost

ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads , while also helping to ensure the rated lifespan of an M.2 SSD.

PCIe 5.0 Expansion Slot

Both of the x16 expansion slots offer incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and both slots can be released easily with PCIe Slot Q-Release Slim.

Boost Your Connectivity

WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.
2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.

PCIE® SLOT Q-RELEASE SLIM

Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.?

M.2 Q-RELEASE

The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws.

NEW M.2 Q-LATCH

Tool-free installation or removal of M.2 SSDs with just one press.

M.2 Q-SLIDE

The new sliding M.2 latch design supports sizes 2242, 2260, and 2280 for easy device installation.

Q-ANTENNA

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Express Boundless Creativity

The ROG Maximus Z890 Extreme features a full-colour 5-inch LCD screen that can show exclusive ROG animations, system information, and even personalised services through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)
• Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
• Advanced Overclocking & Memory Technologies: NPU Boost, DIMM Fit, DIMM Flex and AEMP III
• Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimised Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe
• Latest M.2 Support: Three PCIe® 5.0 M.2 slots and one PCIe 4.0 M.2 slot onboard with ROG M.2 Power Boost, and two PCIe 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions
• ROG Memory Fan Kit: Cooling solution can unleash memory overclocking up to 9000+ MT/s

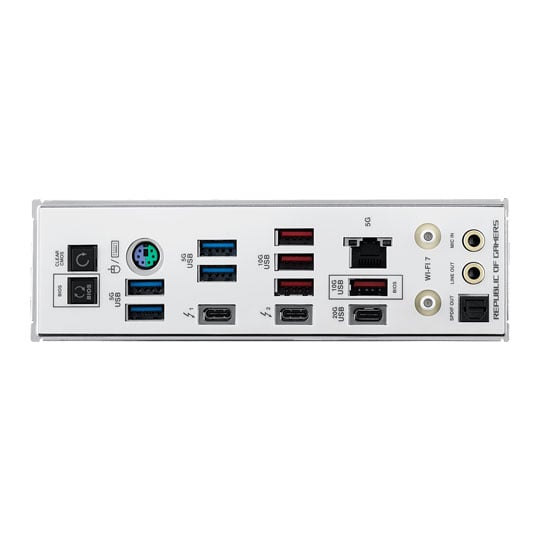

• Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, one USB 20Gbps Type-C port, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, four additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots with full support for next-gen graphics cards
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek® 5Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier
• Unmatched Personalisation: Three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
• Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and 1-year AIDA64 Extreme subscription
