Refurbished ASUS ROG CROSSHAIR X870E HERO BTF AM5 PCIe 5.0 ATX Motherboard

ASUS ROG CROSSHAIR X870E HERO BTF ATX Motherboard

The ROG CROSSHAIR X870E HERO BTF is a premium AMD AM5 motherboard crafted for high-performance gaming and enthusiast builds. Featuring ASUS’s innovative BTF ("Back to the Future") hidden-connector design, this board routes power and data cables such as CPU power, SATA, USB, and fan headers to the back edge of the motherboard for ultra-clean cable management and improved airflow. It includes a high-power PCIe 5.0 x16 slot on the front to deliver up to 600W directly to compatible BTF graphics cards, eliminating the need for bulky external GPU power cables while maintaining support for standard GPUs. With robust DDR5 memory support beyond 8200+ MT/s, Wi-Fi 7, dual 2.5Gb and 5Gb Ethernet, multiple USB4 Type-C ports, and comprehensive cooling, the HERO BTF balances extreme performance, advanced connectivity, and sleek aesthetics. Perfect for next-gen AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard empowers clean, powerful, and visually stunning PC builds.

Advanced BTF Design

With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF-compatible graphics cards. With a full set of BTF components, builders can eliminate visible cables for an ultra-clean aesthetic.

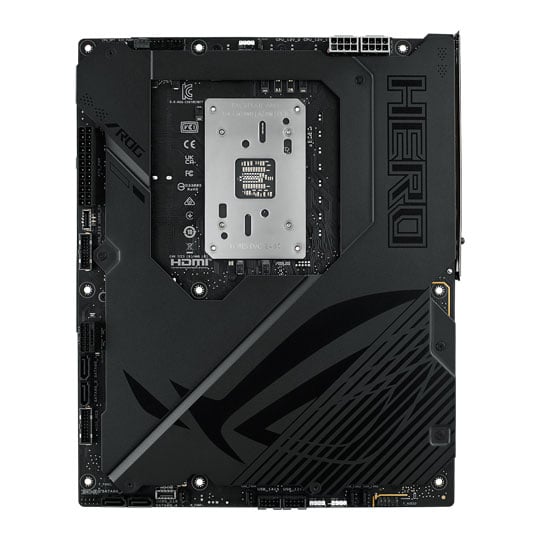

Hidden Connector Design
The hidden-connector design can be ideal for first-time builders because it provides easier cable management. The absence of visible cables also creates a clean and tidy look that would normally require an expert.

Learn More About ASUS BTF Ecosystem

High-Power GPU Slot
The graphics card high-power slot stands ready to supply all the wattage that a BTF graphics card needs. This special design can deliver up to 600 watts through the motherboard itself, eliminating the need for visible 8-pin or 16-pin power cables on the front.

ASUS AI Intelligence

ASUS AI Cache Boost
Supercharge your large language model (LLM) workflows with AI CACHE BOOST. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimises CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Overclocking
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI Cooling II
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI Networking II
AI Networking II combines intelligent technologies to continuously optimise network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Overclocking Enthusiast?

Dynamic OC Switcher
Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.

Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E Hero BTF features a built-in clock generator that isolates the CPU base clock from memory, PCIe, and the Infinity Fabric speed.

PBO Enhancements
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

Incredible Memory Performance

DDR5 Domination
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Crosshair X870E Hero BTF*.

*Memory overclocking may vary between CPU series. Please refer to the manufacturer's spec table for detailed information.

DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues, whereas DIMM Fit Pro is an advanced option that provides more extensive customisability for memory optimisation.

AEMP
AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

A Robust Power Solution

18+2+2 Power Stages
The VRM features 18+2+2 power stages, each rated to handle up to 110 amps

8 + 8-pin ProCool II Power Connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.

MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

An Impeccable Thermal Solution

VRM & Aluminium I/O Heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

M.2 Heatsinks & Backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard PCIe 5.0 M.2 slots has a dedicated backplate for additional heat dissipation.

Chipset Heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

High-Condusctivity Thermal Pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

Connectivity Bolstered by The Latest Gen Tech

PCIe 5.0 Expansion Slot
The first x16 expansion slot has the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices, with full support for next-gen graphics cards. To bear the brunt of massive graphics cards, it is also protected with SafeSlot retention bracket and can be released easily thanks to the PCIe Slot Q-Release Slim.

Five Onboard M.2 Slots
The ROG Crosshair X870E Hero BTF features five onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

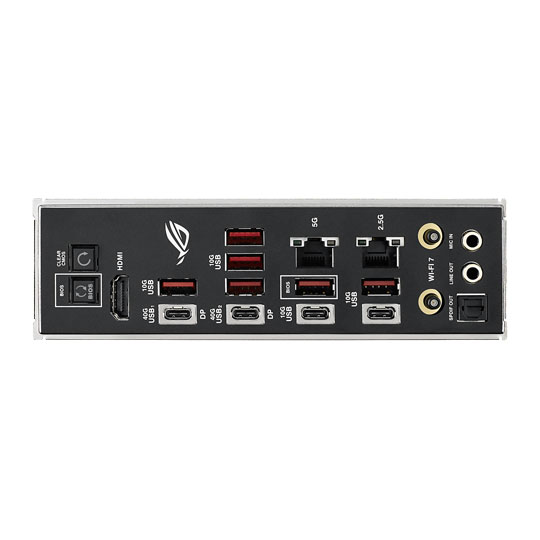

2.5 & 5 Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel and Realtek ethernet.

Two USB4 Type-C Ports
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

Two USB 20Gbps Type-C Front Panel Connectors
The ROG Crosshair X870E Hero BTF comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Advanced Mode
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

• Latest AMD AM5 socket supporting Ryzen 7000, 8000, and 9000 Series processors
• ASUS BTF hidden-connector design routes power and data cables to the motherboard's rear for cleaner builds and improved airflow
• PCIe 5.0 x16 high-power GPU slot delivers up to 600W to compatible BTF graphics cards, eliminating need for external GPU power cables
• Supports up to 256GB DDR5 memory with speeds beyond 8200+ MT/s using ASUS NitroPath DRAM technology
• Advanced cooling with multiple fan headers and AI Cooling II for optimal thermal management
• Comprehensive connectivity including Wi-Fi 7, dual 2.5Gb and 5Gb Ethernet, USB4 Type-C ports, and 5 M.2 slots with PCIe 5.0 support
• ASUS AI features like Dynamic OC Switcher and Core Flex for intelligent overclocking and system tuning
• Polymo Lighting II customizable RGB lighting for striking aesthetics
• Robust power delivery with 18+2+2 phase VRM design for stable performance during heavy workloads
