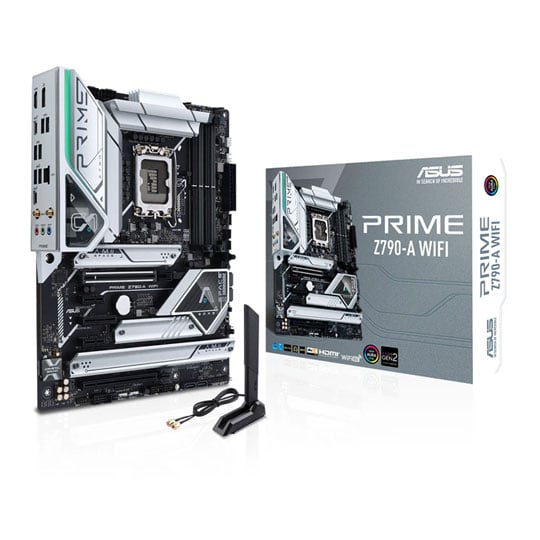

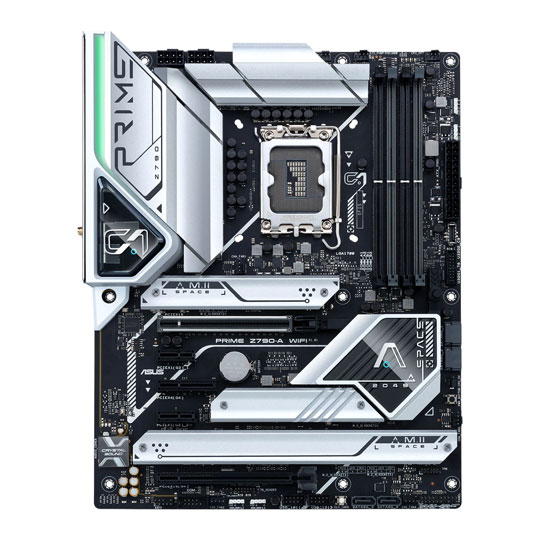

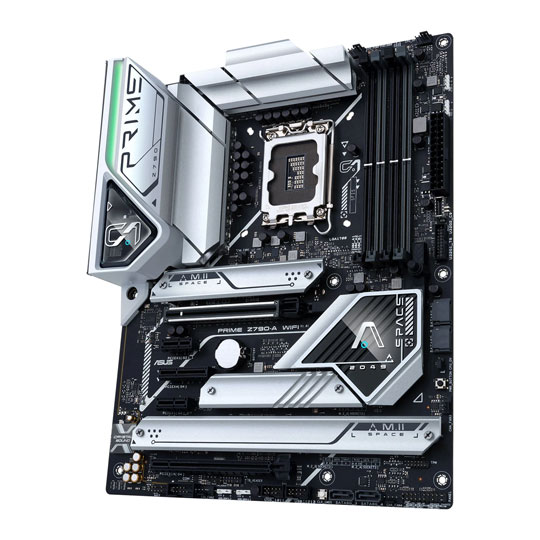

Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard
Refurbished
Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN157830 Manufacturer code: 90MB1CS0-M1EAY0/refurb
£245.99
Add To Basket
Get it Tomorrow, 30 AprIn stock
  • Thumbnail 1 : Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard
Refurbished

Refurbished ASUS PRIME Z790-A WIFI DDR5 PCIe 5.0 ATX Motherboard

Refurbished ASUS PRIME Z790-A WIFI, Intel Z790, S 1700, D5, PCIe 5.0, 4x M.2, 2.5GbE, WiFi 6E, USB 3.2 Gen2, ATX
MORE INFO
MORE INFO

Scan code: LN157830 Manufacturer code: 90MB1CS0-M1EAY0/refurb
£245.99
Order now and get it tomorrow, Wed 30th Apr
Add To Basket
Get it Tomorrow, 30 AprIn stock
Pay in 3 interest-free payments of £82.00

Email me when the availability or price changes

  • By DPD On 30th Apr Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview

Enhanced Power Solution

16 + 1 DrMOS, ProCool connectors, chokes and durable capacitors for stable power delivery.


Comprehensive Cooling

Large VRM heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 provides effective cooling.


Exclusive AI & Memory Technology

AI Cooling II, Two-Way AI Noise-Cancelation, ASUS Enhanced Memory Profile II and ASUS OptiMem II offer an enhanced user experience.


PC DIY Design

PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot make offer a more simplistic building experience.

Features

• 1 x PCIe 5.0 x16 slot.
• 4 x DDR5 DIMM, Max. 128GB.
• Wi-Fi 6E with Bluetooth 5.2.
• Realtek S1220A 7.1 Surround Sound High Definition Audio.
• Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 4 PCIe® 4.0 M.2.

Specifications
Core Specifications
Edition PRIME Z790-A WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x2
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via RAID 0/1/10/5 (Intel RSTe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 4 x M.2 Connector
  • 1 x Power button
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN157830
Model Number 90MB1CS0-M1EAY0/refurb
GTIN 4711081939320
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
