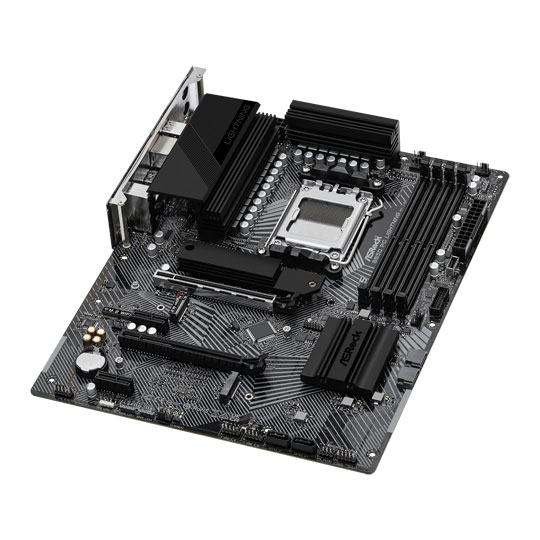

ASRock AMD B650 PG Lightning ATX Refurbished Motherboard
Refurbished ASRock AMD B650 PG Lightning AMD B650, S AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX
Optimised VRM Design
14+2+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
8 Layer PCB Design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
Extreme Overclocking Performance
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
XXL M.2 Heatsink
The extra large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
• Supports AMD Ryzen™ 7000 Series Processors.
• 14+2+1 Phase Power Design, SPS.
• 4 x DDR5 DIMMs, supports up to 6400+(OC).
• 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi.
• Graphics Output Options: 1 HDMI.
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.
• 1 Blazing M.2 (PCIe Gen5x4).
• 1 Hyper M.2 (PCIe Gen4x4).
• 1 M.2 (PCIe Gen4x2).
• 4 SATA3.

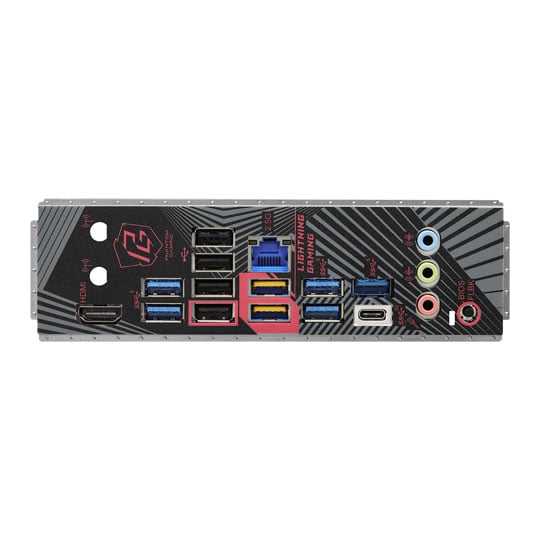

• 1 USB 3.2 Gen2x2 Type-C (Rear).
• 1 USB 3.2 Gen2 Type-C (Front).
• 9 USB 3.2 Gen1 (7 Rear, 2 Front).
• 8 USB 2.0 (4 Rear, 4 Front).
• Realtek 2.5G LAN.
