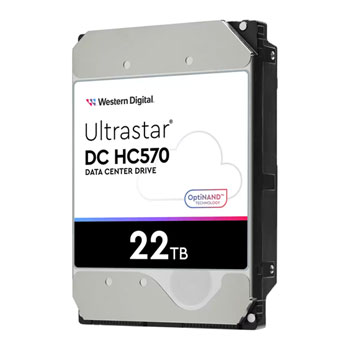

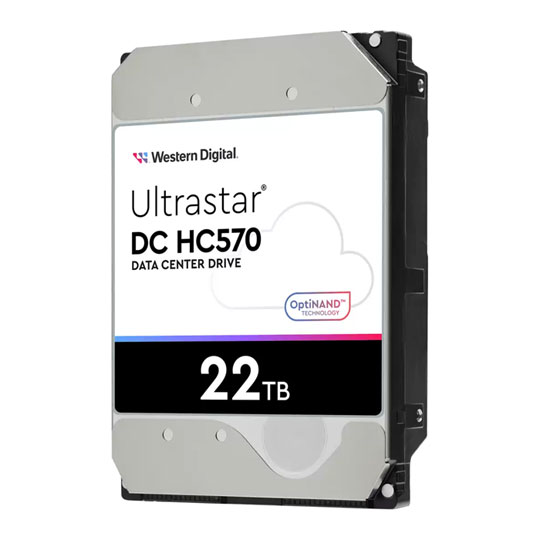

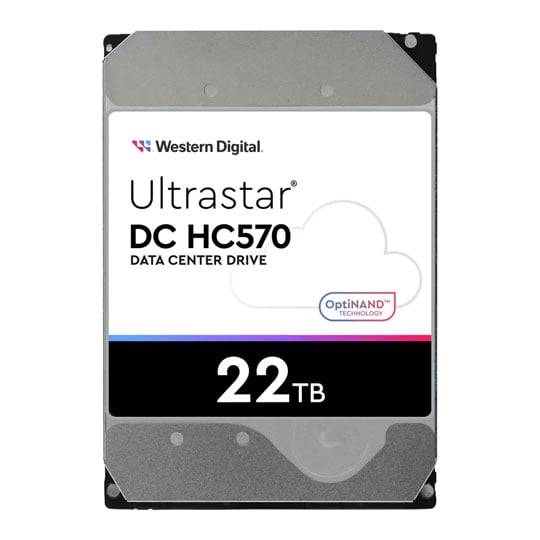

Refurbished WD Ultrastar DC 0F48155 22TB 3.5" SATA Enterprise HDD/Hard Drive 7200rpm
End Of LifeNewRefurbished
Refurbished WD Ultrastar DC 0F48155 22TB 3.5" SATA Enterprise HDD/Hard Drive 7200rpm
Scan code: LN152369 Manufacturer code: 0F48155 /openbox
End Of Life
  • Thumbnail 1 : Refurbished WD Ultrastar DC 0F48155 22TB 3.5" SATA Enterprise HDD/Hard Drive 7200rpm
  • Thumbnail 2 : Refurbished WD Ultrastar DC 0F48155 22TB 3.5" SATA Enterprise HDD/Hard Drive 7200rpm
End Of LifeNewRefurbished

Refurbished WD Ultrastar DC 0F48155 22TB 3.5" SATA Enterprise HDD/Hard Drive 7200rpm

Refurbished 22TB Western Digital Ultrastar SATA Hard Drive, 3.5" HDD, SATA 3, 7200rpm, 512MB Cache, 512E/4096N

Scan code: LN152369 Manufacturer code: 0F48155 /openbox
End of life
This product is no longer available to purchase.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

22TB to Fuel Data Center Expansion

The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fuelling growth in data centers. HDD innovation drives the ability to capture, store, analyse, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency.

The Ultrastar DC HC570 22TB data center HDD with OptiNAND™ technology is the next leap in data density. This 22TB data center HDD enables an incredible 22.44PB of raw storage in a typical rack. This higher volumetric density allows data centers to maximize their storage, especially in footprint- and power-constrained environments.

The Ultrastar DC HC570 combines several industry-first technologies on a 10-disk CMR drive, delivering the performance, quality, and reliability that data center customers require.


Low Power for Lower Operating Costs

Ultrastar HDDs are designed for optimal power over a variety of workloads. The DC HC570 features low power sequential read/write and mixed random read/write workloads.


OptiNAND Technology Benefits

The Ultrastar DC HC570 is the 2nd-generation platform with OptiNAND technology, which integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media.

Western Digital's 2.2TB/disk areal density leadership is extended to a new 10-disk platform, delivering 22TB capacity with CMR recording format. More disks and high areal density work together to maximize data storage efficiency.

OptiNAND improves drive resiliency in the event of an emergency power off (EPO) by increasing the amount of non-volatile memory (NVM) available to flush critical metadata to the iNAND.

ArmorCache™ is a feature enabled by OptiNAND that combines the performance of write cache enabled (WCE) mode and the data protection of write cache disabled (WCD) mode, offering the best of both scenarios. When operating in WCE mode, ArmorCache ensures that the DRAM cache will be safely written in event of an EPO and no data is lost. When operating in WCD mode, the drive will ensure that all user data in DRAM is safely written upon EPO, and the drive will operate with WCE-equivalent performance. Performance and data protection are now identical across both WCE and WCD modes.



Trusted Reliability and Quality for Data at Scale

The Ultrastar DC HC570 meets modern data center reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It is performance-optimized for heavy application workloads and is designed to handle workloads up to 550TB per year. It offers security and encryption options to help protect data from unauthorized use, including SED models.

Trust Western Digital and the Ultrastar DC HC570 hard drive to deliver the highest capacity and greatest value for your data center.

Features


• 22TB capacity in a standard 3.5-inch form factor.
• OptiNAND technology for highest capacities, with ArmorCache™ providing enterprise power loss protection and increased performance.
• Reliable, field-proven, 8th-generation HelioSeal® design.
• Low power for common data center sequential and random read/write workloads.
• Industry-leading HDD technologies: ePMR, triplestage actuator (TSA), HelioSeal.
• 2.5M hours (projected) MTBF rating and 5-year limited warranty.
• No Encryption. Sanitize Overwrite only.
