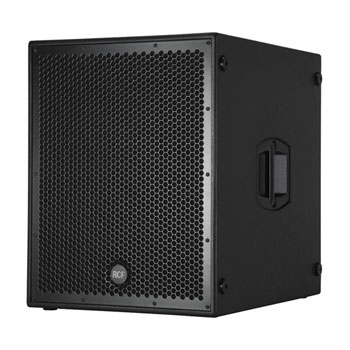

Active High Power 18" Subwoofer
RCF - SUB 8004-AS
'one of the most powerful 18” subwoofers in pro-sound'The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations.The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.
Powerful class D amplifiersRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
136 dBMax SPL
30Hz - 120HzFrequency Response
2500WPeak Power
at a glance

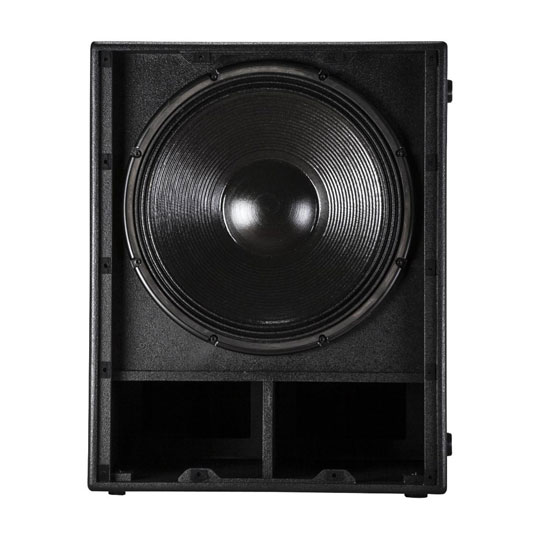

• 18" Woofer, 4.0" voice coil vented woofer
• DSP controlled Input section with selectable presets
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A
• Delay control
The Transducers Innovators
advanced transducer technologyRCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids.
With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming.
'The First Choice Of Many Sound Engineers'
Legendary SubwoofersRCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response - 30 Hz ÷ 120 Hz |
|---|---|
| Transducers | Woofer - 1 x 18'', 4.0'' v.c |

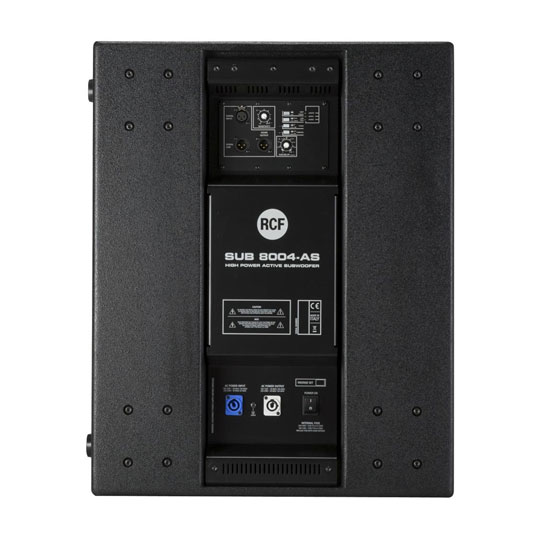

| Input/Output section | Input signal - bal/unbal Input connectors - XLR Output connectors - XLR Input sensitivity - -2 dBu/+4 dBu |
| Processor section | Hi-Pass Frequencies - 120 Hz Low-Pass Frequencies - 90 Hz Protections - Thermal, RMS Limiter - Fast Limiter Controls - Xover, Phase switch, Deep/Punch, Outuput Delay Settings, Cardioid |
| Power section | Total Power - 2500 W Peak, 1250 W RMS Low frequencies - 2500 W Peak, 1250 W RMS Cooling - Convection Connections - Powercon IN/OUT |
| Standard compliance | Safety agency - CE compliant |
| Size | Height - 700 mm / 27.56 inches Width - 558 mm / 21.97 inches Depth - 700 mm / 27.56 inches Weight - 56 kg / 123.46 lbs |
