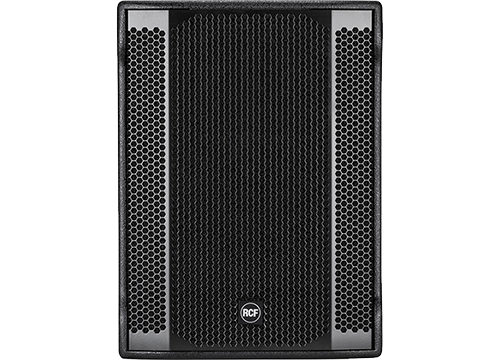

(Ex Demo)) RCF - Sub 8003-AS II 18" Bass Reflex Active Sub
(Ex Demo) RCF - Sub 8003-AS II, 18" Bass reflex Active Sub, 1100Wrms, 2200Wpeak
18" Active Subwoofer
RCF - Sub 8003-AS II
powerful bass reinforcement in a compact designRCF's SUB 8003-AS II active subwoofer features the latest generation of RCF woofer technology, digital amplifiers and DSP processing with higher power and enhanced performance. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands and DJs.
at a glance
• 2200 W
• 18" Woofer, 4.0" v.c.
• 35 Hz - 120 Hz frequency response
• 135 dB max SPL
'A Superior Bass Experience'
Legendary subwoofersRCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.
Cabinet & mechanicsThe RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.
Powerful class D amplifiersRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation.
The Tech Spec
| Features | Specification | Frequency Response | 35 to 120 Hz |
|---|---|
| Maximum SPL | 135 dB |
| Woofer | 18", 4" voice coil |
| Input / Output Connectors | Stereo XLR |
| Input Sensitivity | -2 dBu / 4 dBu |
| Crossover Frequencies | Selectable |
| Protections | Thermal, RMS |
| Controls | Gain, EQ, phase, xover, delay, cardioid |
| Power | Total Power: 2200 W peak, 1100 W RMS |
| Material | Baltic birch |
| Dimensions | 27.3 x 20.6 x 27.6" / 69.4 x 52.3 x 70 cm |
| Weight | 43.5 kg |
