RCF - NXL 24-A MK2 - Active PA System
RCF - NXL 24-A MK2 - Active PA System
Email me when the availability or price changes
Finance this product
- From £50.47 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £44.71 / month (APR 15.9%)
Active Two-Way Array System
RCF - NXL 24-A MK2

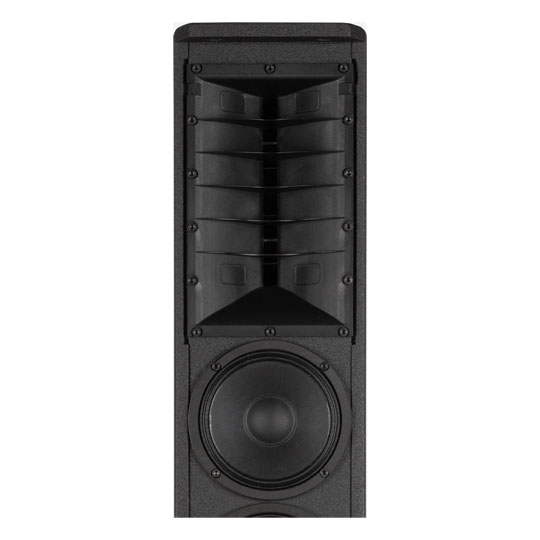

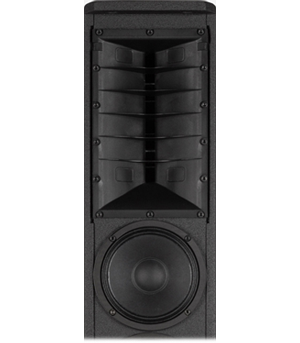

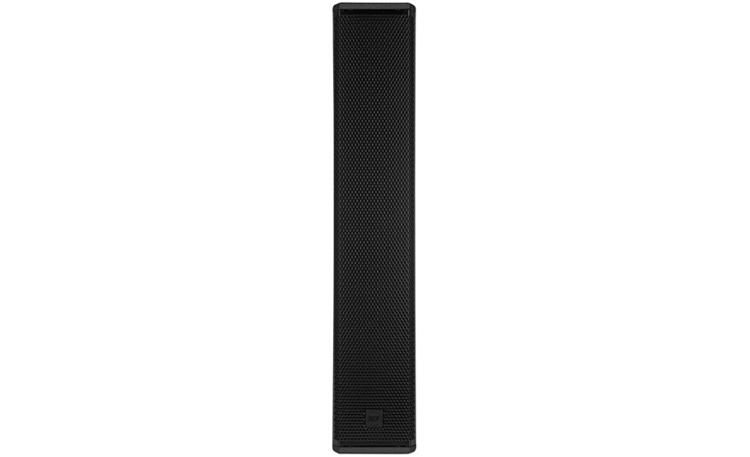

professional Two-Way Array SystemNXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2100W two-channel amplifier produce coherent 100° x 30° coverage for the listening area with up to 132 dB. The two-way design features four 6” neodymium woofers and a 3” driver on an asymmetrical waveguide.
The horn’s design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 60 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 24-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 24-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.
132 dBMax SPL @ 1m
60 Hz - 20000 HzFrequency Response
30°Vertical Coverage Angle
at a glance
• Up to 132 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 30° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 4 x 6" High Power Neodymium Woofers
• 60-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 4 x M8 Rigging Points and 4 x Quick Lock
Superior Transducers
high performance driversLightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.
Bass Motion Control
BMC (Bass Motion Control)When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
A New Perspective on Linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response
60 Hz - 20000 Hz Max SPL @ 1m 132 dB Horizontal coverage angle 100° Vertical coverage angle 30° |
|---|---|
| Transducers | Compression Driver
1 x 1.4'' neo, 3.0'' v.c Woofer 4 x 6.0'' neo, 1.5'' v.c |
| Input/Output section | Input signal
bal/unbal Input connectors Combo XLR/Jack Output connectors XLR Input sensitivity +4 dBu |
| Processor section | Crossover Frequencies
800 Protections Thermal, Excurs., RMS Limiter Soft Limiter Controls Linear/2 Speakers/High-Pass presets, Volume |
| Power section | Total Power
2100 W Peak High frequencies 700 W Peak Low frequencies 1400 W Peak Cooling Convection Connections Powercon TRUE1 TOP IN/OUT |
| Physical specifications | Cabinet/Case Material
Baltic birch plywood Hardware 4 x M8, 4 x quick lock Handles 2 side Pole mount/Cap 35 mm insert Grille Steel Color Black |
| Size / Weight | Height
1051 mm / 41.38 inches Width 198 mm / 7.8 inches Depth 290.4 mm / 11.43 inches Weight 24.4 kg / 53.79 lbs |
