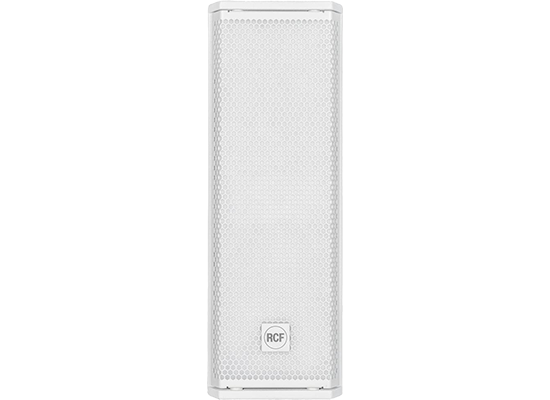

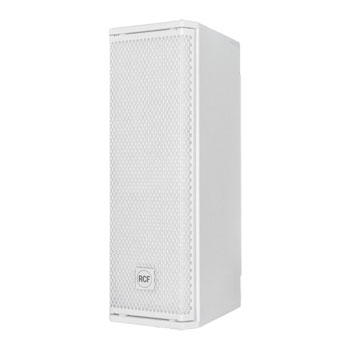

Compact Active Point Source Speaker
RCF - NXL 14-A
(White)
small size. huge sound.The RCF NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.
Symmetrically aligned transducers ensure coherent wavefront projection and smooth response, providing consistent directional control in both horizontal and vertical orientation. The rotatable 100º x 70º waveguide produces precise, constant coverage. This special configuration allows for excellent control of directional characteristics, significantly increasing intelligibility in difficult acoustic environments.
128 dBMax SPL
70 - 20000 HzFrequency Range
2100WPower
At A Glance
• 128 dB max SPL
• 2100W Class-D Bi-Amplification
• 70-20000 Hz linear frequency range
• 1.75" PKX / Neodymium Compression Driver
• 2 x 6" High Power Neodymium Woofers
• Rotatable 100° x 70° TRW Waveguide
• FiRPHASE and Bass Motion Control
The Most Powerful Amplifier In Its Class
Power that MovesRCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy efficient, so there's no need for a cooling fan.
The amplifier is attached to a solid aluminum heat exchanger at the rear of the enclosure, with no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.
RCF Precision Transducers

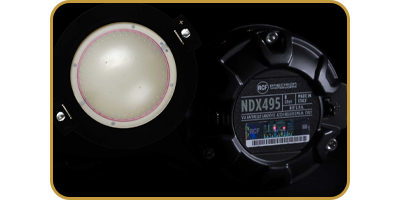

High FrequenciesThe 1.75" compression driver features a newly developed dome made of PKX (Modified Polyether Ether Ketone). PKX is a rigid yet lightweight colorless organic polymer. It is possibly the best of the thermoplastic resin films for their specification in audio applications.
Developed by the RCF Precision Transducers laboratory and enhanced with reinforcing ribs for high-performance slim dome designs, this new compression driver offers greater precision and reliability.
Robust Performance

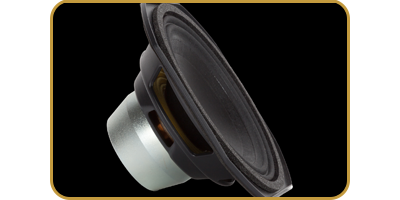

Low FrequenciesThe dual woofer configuration features two 6” neodymium woofers designed for robust bass performance. The cone is crafted from water-resistant fiber-doped material, ensuring durability and consistent sound quality in various environments.
It also includes a polycotton M-roll surround which enhances its efficiency and overall audio output. Additionally, the hypervented magnetic structure allows for better cooling and improved power handling, resulting in a clearer and more reliable sound reproduction.
Pair it with SUB AX
full potentialUnlock your NXL 14-A’s true potential with RCF’s SUB AX Series. The key to optimizing your sound system is the precise match between your subs and tops. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.
With internal factory-tuned crossover presets for NXL 14-A, your sound system is show-ready in a few easy steps. Simply connect your speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.
Available in 15” and 18” models, SUB AX subwoofers deliver earth-shaking bass (up to 135 dB) with pristine clarity by combining powerful 2200-Watt Class-D amplifiers with high-power, long-excursion transducers. Featuring stereo crossovers, 8-band EQs, delays, factory-tuned crossover presets, a color touch panel, and remote control via Bluetooth®, the SUB AX lets you tailor your live sound effortlessly. Built for the road with a rugged design and cardioid configuration option, the SUB AX is the perfect solution for powerful, solid bass on the go.
Engage Your Audience
pristine soundBased on RCF Precision Transducers and wooden enclosures, the NXL Series is RCF’s most flexible active speaker system when high-power and pristine sound are required. The internal DSP has a wide range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve a coherent sound distribution without phase distortion and deep, tight bass at any volume. With its streamlined design and small footprint, the NXL Series provides a powerful sound system when the space for speakers is limited.
Built for Everyday Use
Rig it anywhereDesigned as the ideal portable sound system for daily use, the NXL 14-A offers a variety of features for professional users. The weatherproof enclosure is constructed from high-strength plywood and coated with robust, scratch-resistant polyurea paint. Its sleek look provides ultimate flexibility for tight spaces and small stages with extreme power and without blocking critical sightlines. A strong powder-coated metal grille protects the front, while an acoustically transparent foam backing inside the grille shields against dust and humidity.

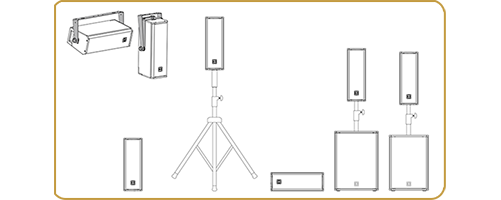

With multiple rigging accessories and the unobtrusive form factor of the cabinet, NXL 14-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

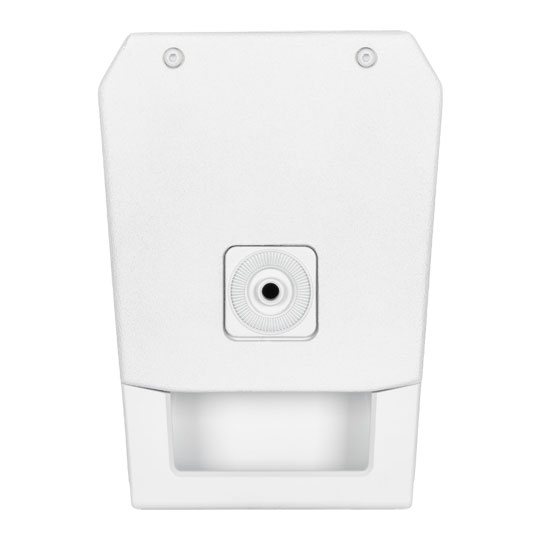

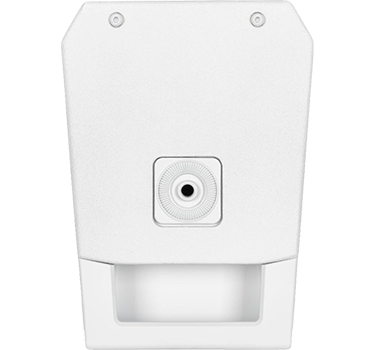

Rigging the speaker is quick and straightforward. The convenient Quick Fit socket at the top and bottom of the enclosure allows for rapid attachment to accessories. No matter the setup, you'll always find a spot for the NXL 14-A.
Tour Ready Construction

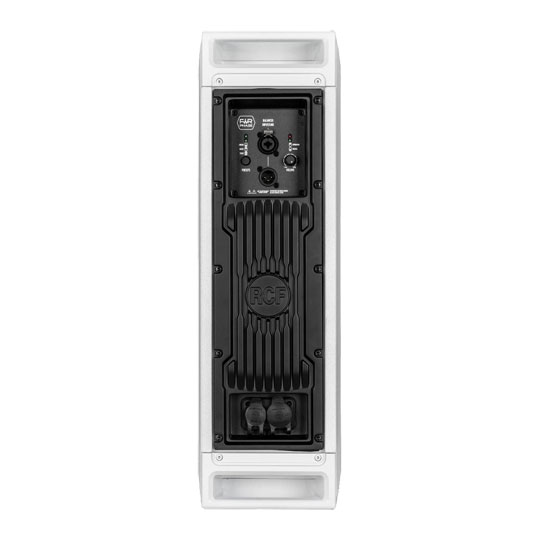

Ultra-durableAttached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation.

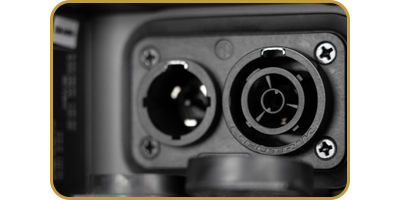

The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON® TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Bass Motion Control
advanced featuresWhen searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
New Perspective On Linearity
minimal latencyRCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The Tech Spec
| Features | Specification | Acoustical Specifications | Frequency Response: 70 Hz ÷ 20000 Hz Max SPL @ 1m: 128 dB Horizontal coverage angle: 100° Vertical coverage angle: 70° |
|---|---|
| Transducers | Compression Driver: 1 x 1.0'' neo, 1.75'' v.c Woofer: 2 x 6.0'' neo, 2.0'' v.c |

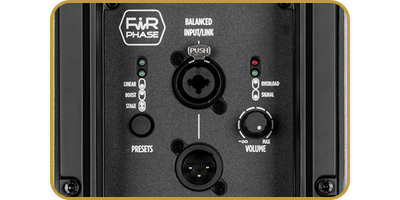

| Input/Output Section | Input signal: bal/unbal Input connectors: Combo XLR/Jack Output connectors: XLR Input sensitivity: -2 dBu/+4 dBu |
| Processor Section | Crossover Frequencies: 1200 Protections: Excurs. Limiter: Fast Limiter Controls: Linear/Boost/Stage Presets, Volume. |
| Power Section | Total Power: 2100 W Peak High frequencies: 700 W Peak Low frequencies: 1400 W Peak Cooling: Convection Connections: Powercon TRUE1 TOP IN/OUT |
| Standard Compliance | Safety agency: CE compliant |
| Physical Specifications | Cabinet/Case Material: Plywood Hardware: 2X M10 TOP AND BOTTOM, 2X PIN D.10 Handles: 2 TOP AND BOTTOM Pole mount/Cap: Quick-fit socket Grille: Steel Colour: White - RAL 9003 |
| Dimensions | Height: 567 mm / 22.32 inches Width: 197 mm / 7.76 inches Depth: 270 mm / 10.63 inches |
| Weight | 12.8 kg / 28.22 lbs |
