RCF - NXL 14-A & Sub15AX (White) with Stand and Spacer -

the ultimate compact sound systemScan Pro Audio are proud to offer this outstanding RCF sound system bundle, giving you everything you need for a complete audio entertainment set up. This bundle includes a set of White RCF NXL 14-A Compact Active Point Source Speakers and SUB 15-AX Professional Active 15" Subwoofers, with two RCF PMK60679 Stand Adapters, Gravity SP 2332 B Adjustable Speaker Poles and four UK Truecon Power Supples. If you're looking for the ultimate compact sound system, with the technology, performance features and convenience for an incredible sonic experience, look no further!

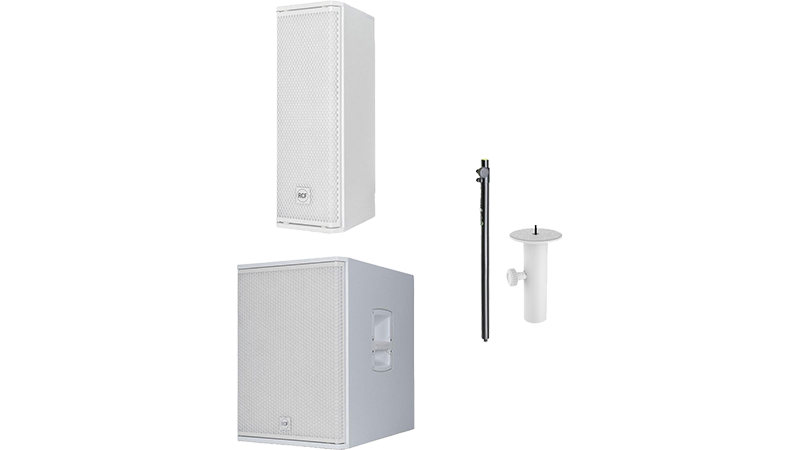

What's Included • 1 x RCF NXL 14-A Compact Active Point Source Speaker (White)
• 1 x RCF SUB 15-AX Professional Active 15" Subwoofer (White)
• 1 x RCF PMK60679 Stand Adapter (White)
• 1 x Gravity SP 2332 B Adjustable Speaker Pole
• 2 x UK Truecon Power Supply

Compact Active Point Source SpeakerThe RCF NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

Symmetrically aligned transducers ensure coherent wavefront projection and smooth response, providing consistent directional control in both horizontal and vertical orientation. The rotatable 100º x 70º waveguide produces precise, constant coverage. This special configuration allows for excellent control of directional characteristics, significantly increasing intelligibility in difficult acoustic environments.

At A Glance • 128 dB max SPL
• 2100W Class-D Bi-Amplification
• 70-20000 Hz linear frequency range
• 1.75" PKX / Neodymium Compression Driver
• 2 x 6" High Power Neodymium Woofers
• Rotatable 100° x 70° TRW Waveguide
• FiRPHASE and Bass Motion Control

pristine soundBased on RCF Precision Transducers and wooden enclosures, the NXL Series is RCF’s most flexible active speaker system when high-power and pristine sound are required. The internal DSP has a wide range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve a coherent sound distribution without phase distortion and deep, tight bass at any volume. With its streamlined design and small footprint, the NXL Series provides a powerful sound system when the space for speakers is limited.

Rig it anywhereDesigned as the ideal portable sound system for daily use, the NXL 14-A offers a variety of features for professional users. The weatherproof enclosure is constructed from high-strength plywood and coated with robust, scratch-resistant polyurea paint. Its sleek look provides ultimate flexibility for tight spaces and small stages with extreme power and without blocking critical sightlines. A strong powder-coated metal grille protects the front, while an acoustically transparent foam backing inside the grille shields against dust and humidity.

With multiple rigging accessories and the unobtrusive form factor of the cabinet, NXL 14-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

Rigging the speaker is quick and straightforward. The convenient Quick Fit socket at the top and bottom of the enclosure allows for rapid attachment to accessories. No matter the setup, you'll always find a spot for the NXL 14-A.

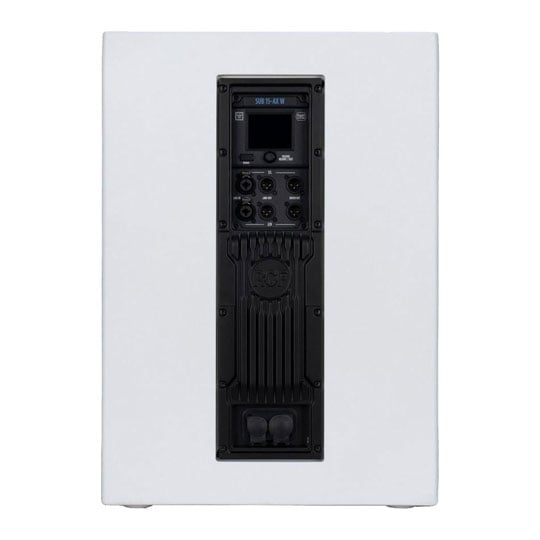

Advanced Subwoofer with Crossover Presets for RCF SpeakersThe RCF SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a colour touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel. With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

With 2,200 Watts of power, the Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss. The stereo input circuit features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section combining high efficiency with minimum weight.

at a glance • 2200 Watt Class-D Amplifier
• 133 dB Max SPL
• 15” Woofer, bass reflex housing
• Digital Crossover w/ Presets
• Multi-ply hardwood polyurea-coated
• LiveRemote App
• Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
• Bass Motion Control excursion management
• Powercon True1 Top Sealed AC Connector

quick set upRCF cabinets are made of high-quality multi-ply hardwood coated with a rugged black (or white) polyurea finish. Subs are stackable and lightweight, have ergonomic handles with rubber grips, and are designed for easy set-up and tear-down. The M20 threaded pole mount on the top of the cabinet supports RCF speakers of various sizes. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect transducers from dust. SUB AX Series subwoofers are built to last, with powerCON® TRUE1 TOP mains connectors, so you can be sure that they will stand up to the rigors of use and transport.

minimum weight designLightweight and powerful, RCF woofers are a reference in high performance. RCF Precision Transducers engineers have developed new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight. The magnetic circuit topology is capable of delivering the highest, balanced level of performance in three specific areas: maintenance of a consistent, high integrity magnetic flux gap, exceptionally low distortion and efficiently integrating the magnetic circuit in a minimum weight design. The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice coil movement within the gap.

for mounting loudspeakersThis RCF PMK60679 adapter is used to mount loudspeakers on standard 35 mm diameter pole commonly used for loudspeaker stands. Pole not included.

At a glance • RCF Approved Original Accessory
• Steel Construction
• Painted with White, Scratch Resistant Paint

Solid and durable constructionThe SP 2332 B is a 35 mm pole to mount satellite speakers on subwoofers. The heavy duty construction of powder coated steel is height adjustable from 82 to 140 cm. The SP 2332 B features an M20 bottom end and steel collar with set screw and safety pin to lock the extension pole in place. It comes with a convenient rubber retainer to secure the safety pin during transport.
