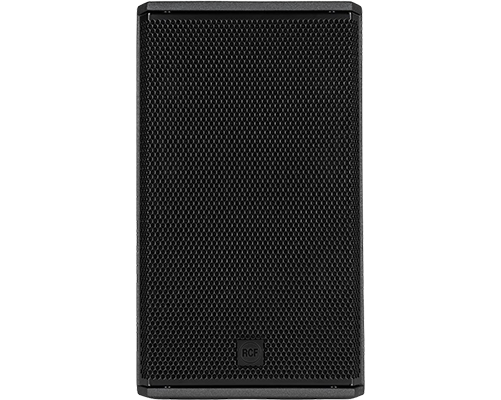

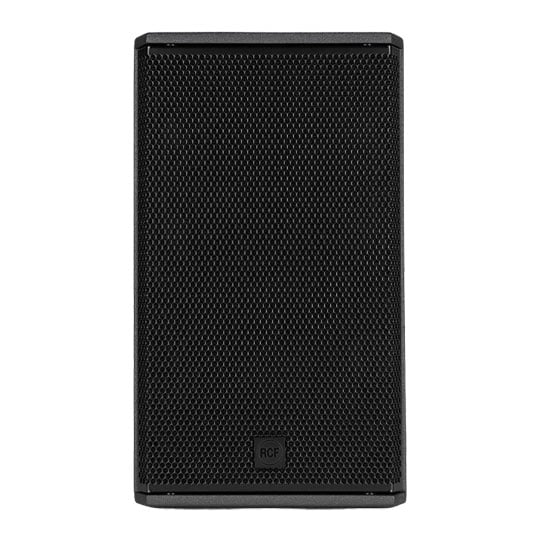

RCF NX 932-A Professional Active Speaker
RCF NX 932-A Professional Active Speaker
Scan code: LN148698 Manufacturer code: NX 932-A
£1,199.00
Get it Tomorrow, 09 FebIn stock
  • Thumbnail 1 : RCF NX 932-A Professional Active Speaker
  • Thumbnail 2 : RCF NX 932-A Professional Active Speaker
  • Thumbnail 3 : RCF NX 932-A Professional Active Speaker
  • Thumbnail 4 : RCF NX 932-A Professional Active Speaker

RCF NX 932-A Professional Active Speaker

RCF - NX 932-A, Two-Way Active Speaker System 12" + 3" v.c., 2100 W Peak

Scan code: LN148698 Manufacturer code: NX 932-A
£1,199.00
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 09 FebIn stock

Email me when the availability or price changes

  • By DPD On 10th Feb Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £33.81 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £99.92
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £1,199.00
    Total inc. interest: £1,199.00
    Monthly Payment: £49.96
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £1,199.00
    Total inc. interest: £1,199.00
    Monthly Payment: £41.99
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,199.00
    Total inc. interest: £1,511.47
    Monthly Payment: £33.81
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,199.00
    Total inc. interest: £1,622.65
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £31.86 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Professional Active Speaker
RCF - NX 932-A

RCF NX 932-A

Premium Sound QualityThe RCF NX 932-A is expertly engineered from the ground up to deliver pristine audio performance for sound providers, small bands and DJs. Together, a 3" titanium/neodymium compression driver, 12" neodymium woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide creates coherent 100° x 70° coverage for the listening area with up to 133 dB SPL, distortion-free sound.

Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 932-A blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience total sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

132 dBMax SPL

40Hz - 20kHzFrequency Range

2100WPower

Amazing Features • Up to 133 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 45-20000 Hz linear frequency response
• 3" Titanium/Neodymium Compression Driver
• 12" neodymium Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
• Six M10 and four Quick Lock rigging points

Legendary Transducers

RCF NX 932-A

Potent wooferThe low-frequency transducer is a high-power 12" neodymium woofer with a 2.5" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

Superior compression driversThe ND940 Compression Driver in pure Titanium with a 3-inch voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and improved efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

Direct Drive TechnologyThe voice coil features a high-temperature Kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’s suspension has been designed following extensive research and development aimed at minimizing distortion and extending low-frequency range.

Power That Moves

RCF NX 932-A

The most powerful amplifier in its classRCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.

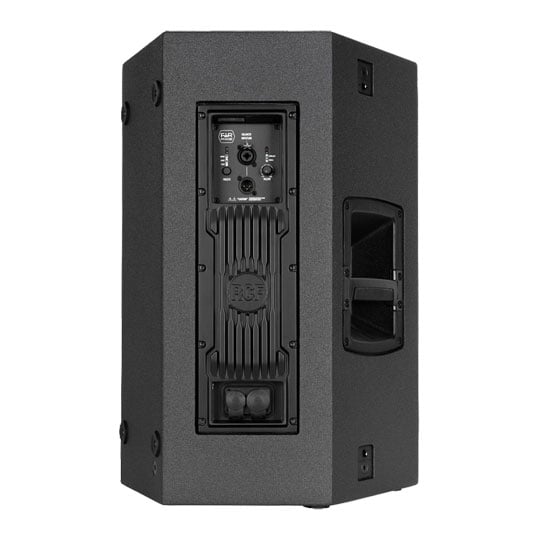

NX 9 is energy-efficient removing the need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet without moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section merging high-efficiency with minimum weight.

Bass Motion Control

RCF NX 932-A

advanced woofer excursion managementWhen looking for extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. NX 9 Series with BMC can handle the lowest audible frequencies without affecting the woofer stability, providing extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer to create a custom algorithm that only limits over-excursions. This provides complete freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the BMC algorithm breaks this rule. Together with FiRPHASE technology, NX 9 has a new level of audio performance in this range of speakers.

New Perspective On Linearity

FiRPHASE

FiRPHASEZero degrees phase linearity for a rich, consistent sound. The advanced digital FiR technology delivers a transparent signal and perfect imaging to the listener.

RCF FiRPHASE filters allow a coherent distribution of sound without phase distortions, providing minimum latencies within the system.

Tour-Proven Workhorse

RCF NX 932-A

maximum strengthThe NX 9 can work as both a main system or as a floor monitor. This flexibility makes it a smart choice for a wide variety of live sound applications. The rugged all-wood cabinet is easy to carry with handles on both sides. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole.

Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points, Quick Lock pins, and special accessories. From the wood cabinet to the final texture and protective grille, NX 9 Series provides maximum strength for extensive use on the road and can be used for fixed installation.

Ready for Heavy-Duty Applications

RCF NX 932-A

True Outdoor ProtectionThe highly innovative entertainment industry is always evolving by higher demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment.

The speaker features True Outdoor Protection (TOP) PowerCON TRUE1 power input connectors. These ruggedized sealed connectors feature IP protection and UV resistance approved according to UL50E.

The Tech Spec

Features Specification
Frequency Response 45 Hz ÷ 20000 Hz
Max SPL @ 1m 132 dB
Horizontal Coverage Angle 100°
Vertical Coverage Angle 70°
Compression Driver 1 x 1.4" neo, 4.0" v.c
Woofer 12" neo, 2.5" v.c
Input Signal bal/unbal
Input Connectors Combo XLR/Jack
Output Connectors XLR
Input Sensitivity -2 dBu/+4 dBu
Crossover Frequencies 700Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Linear, Boost, Stage, Volume
Total Power 2100 W Peak
High Frequencies 700 W Peak
Low Frequencies 1400 W Peak
Cooling Convection
Connections Powercon TRUE1 TOP IN/OUT
Safety Agency CE compliant
Hardware 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
2 each side quick lock pin seat
Handles 1 x Side
Pole Mount/Cap Yes
Dimensions User Manual, Warranty Card
Dimensions Width: 362 mm / 14.25 inches
Height: 620 mm / 24.41 inches
Depth: 405 mm / 15.94 inches
Weight 22.9 kg / 50.49 lbs
Specifications
Number of Input Channels 2
Frequency Response -3dB 45-20000 Hz dB
Frequency Response -10dB N/A
Max SPL 132 dB
Power rating (Peak) 2100 Watts (Peak)
Power rating RMS 1050 Watts (RMS)
Speaker size 12 Inches
Enclosure Type Wood
Dimensions 362 x 620 x 405
Net weight 22.9 KG
Shipping weight 0 KG
Connectivity 1 x XLR / Jack Combi
Connectivity (Output) 1 x XLR
Colour Black
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable Yes
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House Yes
Floor Monitor Yes
Additional Information
Scan Code LN148698
Model Number NX 932-A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
