Active Coaxial Stage Monitor
RCF - NX 15-SMA
designed for professional performers and sound engineers
who demand exceptional clarity and reliability

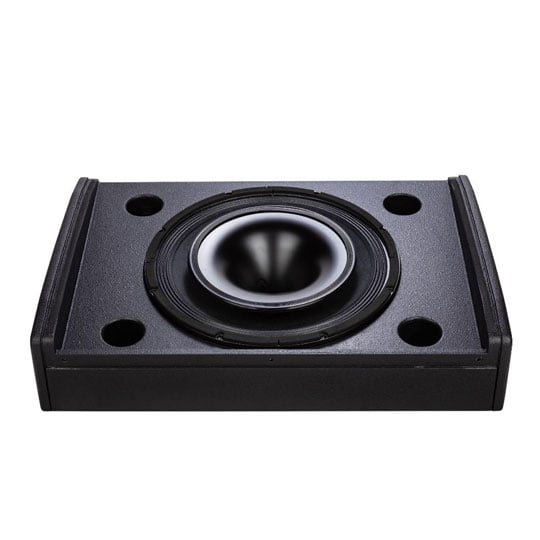

The NX 15-SMA is equipped with new high power 700 W digital amplifier and a newly designed 15” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 15-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side.
In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes:- Floor, for stage monitoring; Free Field, for the use of the speakers as a stand-alone PA system.Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road.An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
130 dBMax SPL @ 1m
50 Hz - 20 kHzFrequency Response
60°Horizontal Coverage Angle
at a glance
• 1400 Watt Peak, 700 Watt RMS digital bi-amplification
• 15" High power neodymium woofer, 2.5" voice coil
• 1.7" kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection
• Combo xlr/jack input, xlr signal output
Innovative Bass Motion Control
'a forward-thinking tone-shaping system'Instead of a conventional high-pass filter, the RCF NX 915-SMA features an innovative Bass Motion Control (BMC) system, designed to deliver exceptional low-end performance. This advanced tone-shaping technology actively manages woofer excursion, allowing the speaker to reproduce even the deepest frequencies with outstanding clarity, stability, and definition. How it works: BMC maps the woofer’s behavior in real time and applies a custom algorithm that only limits excessive excursion. The result is powerful, well-defined bass that retains its natural phase response, ensuring tight, precise low-frequency performance without compromise.
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response - 50 Hz - 20000 Hz Max SPL @ 1m - 130 dB Horizontal coverage angle - 60° Vertical coverage angle - 60° |
|---|---|
| Transducers | Compression Driver - Coaxial 1.0'' neo, 1.75'' v.c Woofer - Coaxial 15'' neo, 2.5'' v.c |
| Input/Output section | Input signal - bal/unbal Input connectors - XLR, Jack Output connectors - XLR Input sensitivity - +4 dBu |
| Processor section | Crossover Frequencies - 1700 Hz Protections - RMS, HF Limiter - Soft Limiter Controls - Freefield, floor |
| Power section | Total Power - 1400 W Peak, 700 W High frequencies - 400 W Peak, 200 W RMS Low frequencies - 1000 W Peak, 500 W RMS Cooling - Convection Connections - Powercon IN/OUT |
| Standard compliance | Safety agency - CE compliant |
| Physical specifications | Cabinet/Case Material - Baltic birch plywood Handles - 1 on side Pole mount/Cap - 35 mm insert Grille - Steel Color - Black |
| Size / Weight | Height - 362 mm / 14.25 inches Width - 650 mm / 25.59 inches Depth - 468 mm / 18.43 inches Weight - 20.2 kg / 44.53 lbs |
