RCF HDL 6-A Active 2-Way Line Array Module x8 + RCF 8008-AS
RCF - HDL 6-A, 1400W Dual 6" Active Line Array Module (Black) x8 + RCF 8008-AS
Email me when the availability or price changes
Finance this product
- From £450.99 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £399.50 / month (APR 15.9%)

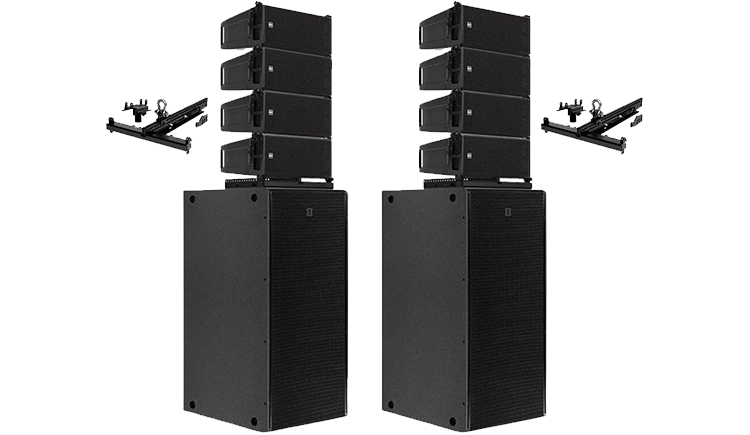

RCF HDL6A / SUB8008-AS Bundle
Active Line-Array Ground-Stacked System
RCF HDL6A / SUB8008-AS Active Line-Array Ground-Stacked SystemScan Pro Audio's PA and Live Sound Experts have pieced together this RCF HDL6A / SUB8008-AS Active Line-Array Ground-Stacked System bundle, comprised of 8x RCF HDL 6-A Active 2-Way Line Array Modules, 2x RCF SUB 8008-AS Active Subwoofers and all the necessary pole mount kits and speaker poles you'll need for the ultimate live sound experience.
what's included?
• RCF - HDL 6-A Active 2-Way Line Array Module (x8)
• RCF SUB 8008-AS Active Subwoofer (x2)
• RCF - FL-B HDL 6 Fly Bar for HDL6 (x2)
Active Line Array Module
RCF - HDL 6-A
1400W Dual 6" Active Line Array ModuleThe HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.
The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
1400WTotal Power
100° H x 10° VCoverage Angle
131 dB Maximum SPL
at a glance
• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing
Custom Designed Waveguide
'a superb, linear high frequency response'The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
Symmetrical Design
'intelligibility, definition and signal strength'Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.
The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.
The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.

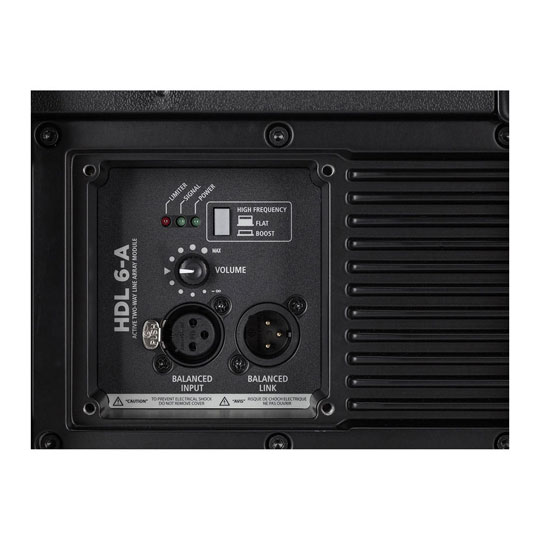

RCF HDL6-A - A Closer Look
Professional Powered Dual 18" Subwoofer
RCF - SUB 8008-AS
Tour-ready workhorseThe SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling.
Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
Legendary subwoofersRCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, internal delay control, long-term reliability, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
137dBMax SPL @ 1m
30Hz - 120HzFrequency Response
4400W PeakTotal Power
at a glance
• Up to 137 dB Sound Pressure Level
• 4400W Class-D Bi-Amplification
• 30-120 Hz linear frequency response
• 2 x 18" High Power Woofers
• IP Rated Powercon TRUE1 TOP IN/OUT
• 8 Crossover Presets and 4 Cardioid Presets
RCF HDL 6-A Active 2-Way Line Array Module
The Tech Spec
| Features | Specification | Enclosure Type | Line Array |
|---|---|
| Total Power Capacity | 1400 W Peak |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1" / 2.5 cm Compression Driver |
| HF Voice Coil | 1.75" / 4.45 cm |
| LF Driver | 2x 6" / 152.4 mm Woofer |
| LF Voice Coil | 2" / 5.1 cm |
| Magnet | Neodymium |
| Frequency Response | 65 Hz to 20 kHz |
| Maximum SPL | 131 dB |
| Coverage Angle | 100° H x 10° V |
| Input Sensitivity | +4 dBu |
| Protections | RMS, Thermal |
| Audio I/O | 1x XLR 3-Pin Female Balanced Input (Lockable) 1x XLR 3-Pin Male Balanced Output |
| Crossover | 900 Hz (Active) |
| Dynamic Processing | Multiband Limiter |
| Digital Signal Processing | 32-Bit Floating Point DSP: FIR Filter |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |
| AC Power I/O | 1x powerCON Input 1x powerCON Output |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |
| Handles | 2x Rear |
| Dimensions | 9.314.8 x 18.5" / to 37.7 x 47 cm |
| Weight | 11.6 kg |
RCF SUB 8008-AS Active Subwoofer
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response -
30 Hz ÷ 120 Hz Max SPL @ 1m - 137 dB |
|---|---|
| Transducers | Woofer - 2 x 18'', 4.0'' v.c |
| Input/Output section | Input signal - bal/unbal Input connectors - XLR Output connectors - XLR Input sensitivity - -2 dBu/+4 dBu |
| Processor section | Crossover Frequencies - Selectable Protections - Thermal, Excurs., RMS Limiter - Soft Limiter Controls - Xover, Phase switch, Deep/Punch, Output Delay Setting |
| Power section | Total Power - 4400 W Peak Low frequencies - 4400 W Peak Cooling - Convection/Forced Connections - Powercon TRUE1 TOP IN/OUT |
| Standard compliance | Safety agency - CE compliant |
| Physical specifications | Cabinet/Case Material - Plywood Hardware - 2 x M20 Handles - 2 x side Grille - Steel Color - Black |
| Size | Height - 550 mm / 21.65 inches Width - 1180 mm / 46.46 inches Depth - 700 mm / 27.56 inches Weight - 80 kg / 176.37 lbs |
