RCF RCF HDL6A / SUB8004-AS Active Line-Array Ground-Stacked System
RCF - HDL 6-A, 1400W Dual 6" Active Line Array Module (Black) X4 + RCF 8004 SUB x2
RCF HDL6A / SUB8004-AS Bundle
Active Line-Array Ground-Stacked System

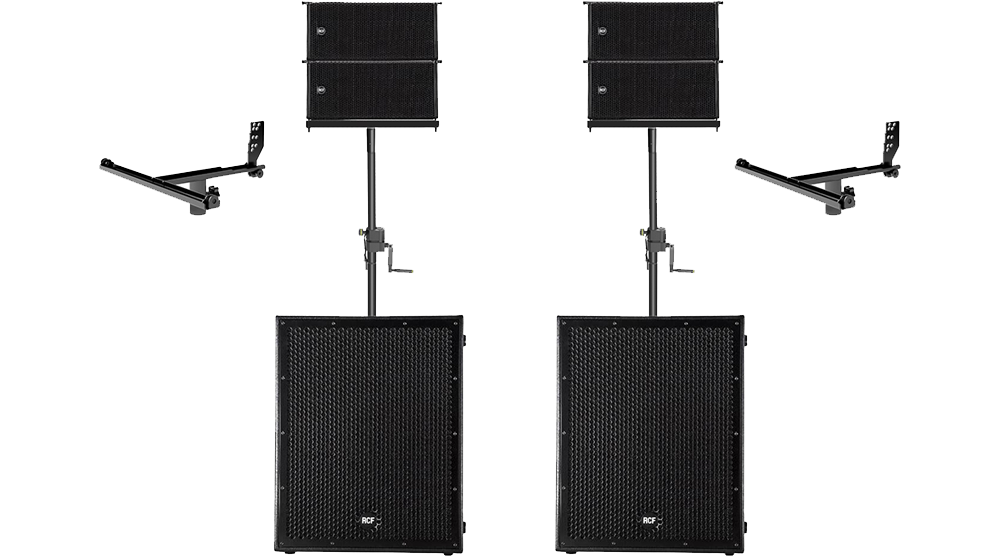

RCF HDL6A / SUB8004-AS Active Line-Array Ground-Stacked SystemScan Pro Audio's PA and Live Sound Experts have pieced together this RCF HDL6A / SUB8004-AS Active Line-Array Ground-Stacked System bundle, comprised of 4x RCF HDL 6-A Active 2-Way Line Array Modules, 2x RCF - SUB 8004-AS 18" Active Subwoofers and all the necessary pole mount kits and speaker poles you'll need for the ultimate live sound experience.
what's included?
• RCF - HDL 6-A Active 2-Way Line Array Module (x4)
• RCF - SUB 8004-AS 18" Active Subwoofer (x2)
• Gravity - SP 2472 B Adjustable Speaker Pole (x2)
• RCF - PM-KIT 3X HDL 6 Pole Mount Kit (x2)
Active Line Array Module
RCF - HDL 6-A
1400W Dual 6" Active Line Array ModuleThe HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.
The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
1400WTotal Power
100° H x 10° VCoverage Angle
131 dB Maximum SPL
at a glance
• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing
Custom Designed Waveguide
'a superb, linear high frequency response'The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
Symmetrical Design
'intelligibility, definition and signal strength'Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.
The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.
The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
RCF HDL6-A - A Closer Look
Active High Power 18" Subwoofer

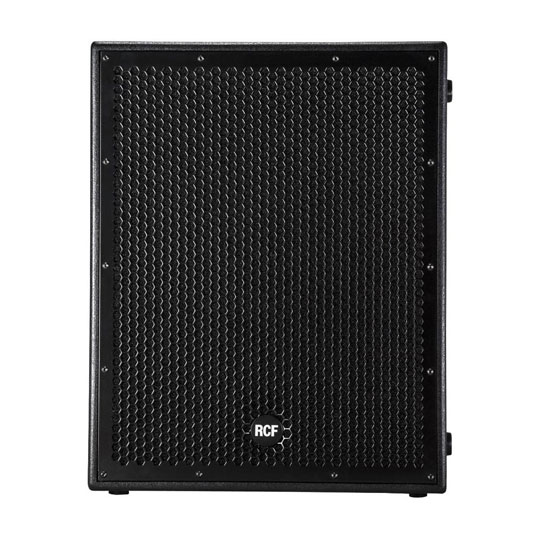

RCF - SUB 8004-AS
'one of the most powerful 18” subwoofers in pro-sound'The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations.The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.
Powerful class D amplifiersRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
136 dBMax SPL
30Hz - 120HzFrequency Response
2500WPeak Power
at a glance
• 18" Woofer, 4.0" voice coil vented woofer
• DSP controlled Input section with selectable presets
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A
• Delay control
The Transducers Innovators
advanced transducer technologyRCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids.
With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming.
'The First Choice Of Many Sound Engineers'
Legendary SubwoofersRCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.
RCF HDL 6-A Active 2-Way Line Array Module
The Tech Spec
| Features | Specification | Enclosure Type | Line Array |
|---|---|
| Total Power Capacity | 1400 W Peak |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1" / 2.5 cm Compression Driver |
| HF Voice Coil | 1.75" / 4.45 cm |
| LF Driver | 2x 6" / 152.4 mm Woofer |
| LF Voice Coil | 2" / 5.1 cm |
| Magnet | Neodymium |
| Frequency Response | 65 Hz to 20 kHz |
| Maximum SPL | 131 dB |
| Coverage Angle | 100° H x 10° V |
| Input Sensitivity | +4 dBu |
| Protections | RMS, Thermal |

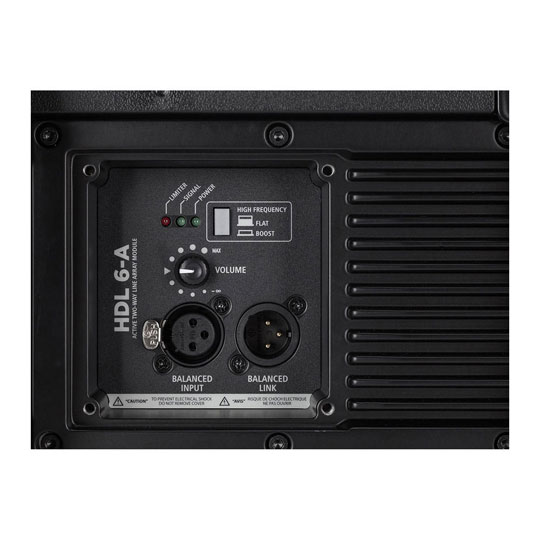

| Audio I/O | 1x XLR 3-Pin Female Balanced Input (Lockable) 1x XLR 3-Pin Male Balanced Output |
| Crossover | 900 Hz (Active) |
| Dynamic Processing | Multiband Limiter |
| Digital Signal Processing | 32-Bit Floating Point DSP: FIR Filter |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |
| AC Power I/O | 1x powerCON Input 1x powerCON Output |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |
| Handles | 2x Rear |
| Dimensions | 9.314.8 x 18.5" / to 37.7 x 47 cm |
| Weight | 11.6 kg |
RCF - SUB 8004-AS 18" Active Subwoofer
The Tech Spec
| Features | Specification | Acoustical specifications | Frequency Response - 30 Hz ÷ 120 Hz |
|---|---|
| Transducers | Woofer - 1 x 18'', 4.0'' v.c |
| Input/Output section | Input signal - bal/unbal Input connectors - XLR Output connectors - XLR Input sensitivity - -2 dBu/+4 dBu |
| Processor section | Hi-Pass Frequencies - 120 Hz Low-Pass Frequencies - 90 Hz Protections - Thermal, RMS Limiter - Fast Limiter Controls - Xover, Phase switch, Deep/Punch, Outuput Delay Settings, Cardioid |
| Power section | Total Power - 2500 W Peak, 1250 W RMS Low frequencies - 2500 W Peak, 1250 W RMS Cooling - Convection Connections - Powercon IN/OUT |
| Standard compliance | Safety agency - CE compliant |
| Size | Height - 700 mm / 27.56 inches Width - 558 mm / 21.97 inches Depth - 700 mm / 27.56 inches Weight - 56 kg / 123.46 lbs |
