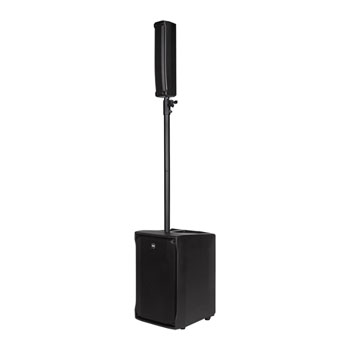

RCF - EVOX JMIX8 Evox J8 with Digital Mixer
RCF - EVOX JMIX8 Active 12" 2-Way 1400W Portable Line Array PA System with 8-Input Mixer
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Portable Line Array PA System with 8-Input Mixer
RCF - EVOX JMIX8
For Live Stage, Theater, and DJ Setups
Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8.
Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer
at a glance
• 128 dB Max SPL
• 1400 Watt 2-way power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 12" woofer, high power 2.5" voice coil
• DSP Processing with FiRPHASE

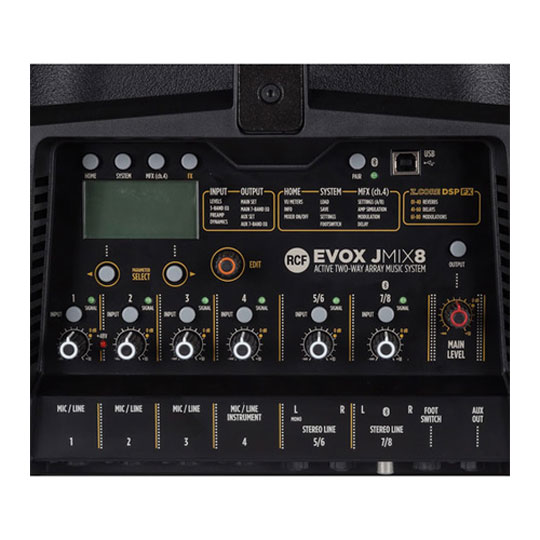

• Onboard digital mixer

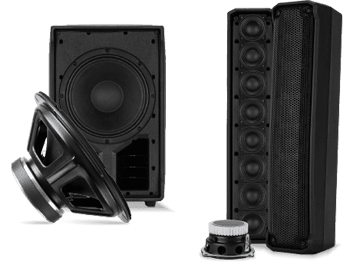

Superior Transducers

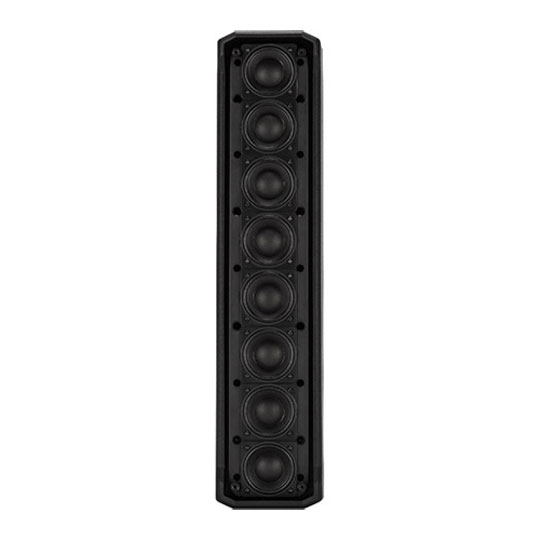

HIGH FREQUENCIESThe ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.
LOW FREQUENCIESThe high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
J System Configurations
huge versatilityFrom solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task.
Check out some standard configurations to understand the system set-up.
Ready To Play in a Few Simple Steps
PORTABILITYIn addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTINGScrew the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY!Carrying and mounting your audio system has never been so quick.
A New Perspective on Linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The Tech Spec
| Features | Specification | Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | LF:
1000 W Peak
500 W RMS HF: 400 W Peak 200 W RMS |
| Amplifier Class | Class-D |
| Full-Range Driver | 8 x 2" / 5.1 cm |
| HF Voice Coil | 1" / 2.5 cm |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| LF Voice Coil | 2.5" / 6.4 cm |
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 128 dB |
| Coverage Angle | 120° H x 30° V |
| Input Sensitivity | +4 dBu / -2 dBu |
| Gain Range | 0 to 45 dB |
| Audio I/O | 1 x 1/4" TRS Footswitch Input 4 x Combo XLR-1/4" TRS 1 x XLR 3-Pin Female Input 1 x XLR 3-Pin Male Output 2 x 1/4" TS Input 1 x Stereo RCA Input 1 x speakON NL2 Input 1 x speakON NL2 Output 1 x 1/4" TRS Aux Output |
| USB | 1 x USB Type-B |
| Construction Material | Metal Grille, Polypropylene |
| Dimensions | 24.5 x 15.7 x 18.1" / 62.3 x 40 x 46 cm |
| Weight | 53.8 lb / 24.4 kg |
