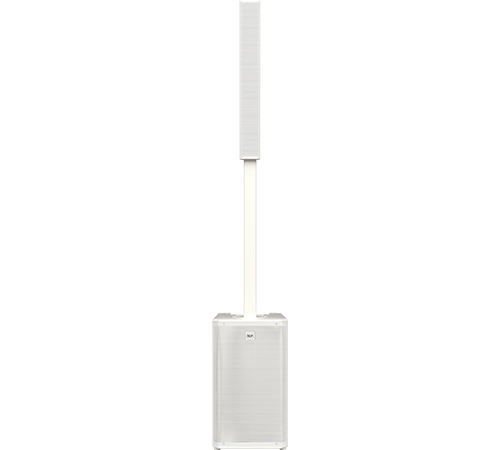

RCF EVOX J9 Active Three-way Portable Column Speaker (White)
RCF - EVOX J9, Active Three-way Portable Column Speaker, 2100 W Class-D Amplifier - Built-In DSP (White)
Email me when the availability or price changes
Finance this product
- From £33.39 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £29.57 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
RCF - EVOX J9, Active Three-way Portable Column Speaker, 2100 W Class-D Amplifier - Built-In DSP (Black)RCF EVOX J9 Active Three-way Portable Column Speaker (Black)
LN167741
No customer reviewWas: £1,099.00
Active Three-way Portable Column Speaker
RCF - EVOX J9
(White)
power and clarityThe RCF EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
130 dBMax SPL
40 Hz - 20 kHzFrequency Response
2100 WTotal Power (Peak)
Amazing Features
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 × 3” Full-Range Neo Transducers
• 12” RCF Precision Low-Frequency Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet With Aluminum Stand Mount
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included
• VDE Mains Connector
Please note: The images used below are for display purposes only. This is the WHITE model.
Fast Transients. Zero Compromise.
2100 WATTS OF SHEER POWERPowered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
True 3-Way Design
outstanding performanceNeodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage. The forward radiation of the array of 6 X 3” neodymium drivers combined with the centered waveguide deliver and a balanced point-source response. 12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
SUB AX ACE Presets for EVOX J
extra umph!When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button.
RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
Variable Height Configuration
refined designBlack or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look.
An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.
Quick Setup
Ready to PlayEVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup.
Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.
Ready for the Road
column transport bag includedEvery EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options).
For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.
Digital Signal Proficiency
Bass Motion ControlEVOX J speakers equipped with Bass Motion Control (BMC) deliver the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. The BMC method creates a complete map of the woofer's dynamic behavior to generate a custom algorithm that limits overexcursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer while enabling full freedom in signal reproduction.
New perspective on linearityEVOX J loudspeakers are engineered with proprietary FiRPHASE processing to deliver transparent sound, exceptional clarity, and precise imaging. FiRPHASE optimizes phase response across the listening area, helping provide consistent coverage and a natural transient response while maintaining low system latency. The algorithm refines the transducer transfer function and, where needed, corrects amplitude, reducing the effects of cabinet-related resonances and acoustic cancellations.
The Tech Spec
| Features | Specification | Frequency Response | 40 Hz - 20000 Hz |
|---|---|
| Max SPL @ 1m | 130 dB |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 40° |
| Compression Driver | 1 x 0.75" neo, 1.75" v.c |
| Fullrange | 6 x 3.0" neo, 1.0" v.c |
| Woofer | 1 x 12", 2.5" v.c |
| Input Signal | bal/unbal |
| Input Connectors | Combo XLR/Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu/+4 dBu |
| Crossover Frequencies | 160 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| Total Power | 2100 W Peak |
| High Frequencies | 700 W Peak |
| Low Frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | VDE |
| Safety Agency | CE compliant |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole Mount/Cap | Quick-fit socket |
| Grille | Steel |
| Dimensions | Width: 350 mm / 13.78 inches Height: 2080.1 mm / 81.89 inches Depth: 462.6 mm / 18.21 inches |
| Weight | 28.3 kg / 62.39 lbs |
