1400W Active Portable Two Way Array
RCF - EVOX J8

RCF EVOX J8

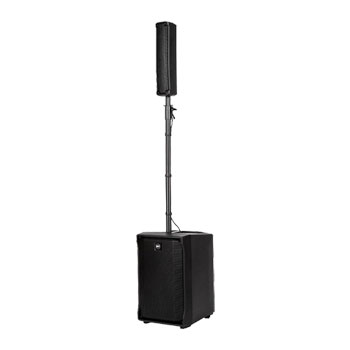

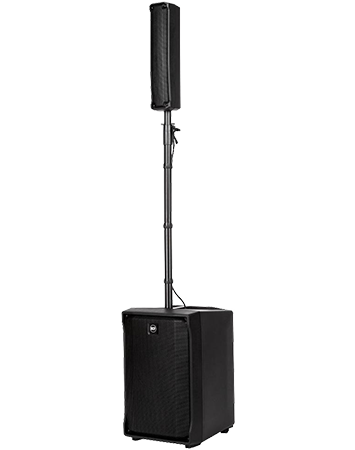

Superior Sound TechnologyThe RCF EVOX J8 is a portable two way array system that features a line source satellite module with eight 2” full-range drivers joined with a high-powered 12” woofer in a bass reflex enclosure. All powered by a 1400 W Class D amplification. The EVOX J Series maintain a similar footprint to the original EVOX systems, but in a now portable composite enclosure. This unit provides incredible sound performance with crystal-clear vocal reproduction and unparalleled musical response.

RCF's Class-D power amplifier technology hosts huge performance operating with high efficiency into a lightweight format. D-Line amplifiers deliver ultra-fast attack, realistic transient response and outstanding audio performance. The amplifier comes with a solid mechanical aluminium structure which stabilises the amplifier during transportation along with helping the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

1400WTotal Power

40 Hz - 20 kHzFrequency Response

128 dBMax SPL

At A Glance • 12" woofer, high power 2.5" voice coil
• DSP Processing with FiRPHASE
• 1400 Watt 2-way power
• 128 dB Max SPL

Enhanced Transducers

RCF EVOX J8

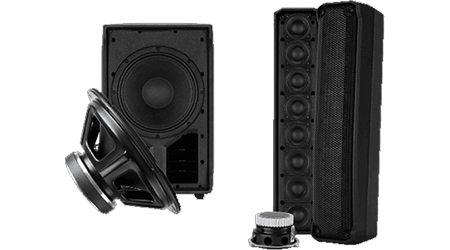

HIGH FREQUENCIESThe ultra-compact full-range 2” RCF drivers can handle high SPL and power with incredible sound performance.

LOW FREQUENCIESThe high excursion 12” RCF woofer extends to the lowest frequencies, providing quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design enables constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to ensure consistent sound coverage for the entire audience.

Ready To Play In A Few Simple Steps

RCF EVOX J8

PORTABILITYAlong with the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley which is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

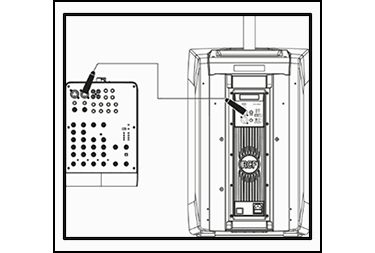

MOUNTINGScrew the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and you're good to go! An adjustable fastener also allows the pole’s length to be adapted.

Best Possible Listening Experience

RCF EVOX J8

0° phase responseFrom solo musicians to big DJ parties, the EVOX J system flexibility is crucial. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is made easy.

The Tech Spec

Features Specification
Frequency Response 40 Hz - 20000 Hz
Max SPL @ 1m 128 dB
Horizontal coverage angle 120°
Vertical coverage angle 30°
Transducers Fullrange: 8 x 2.0'', 1.0'' v.c
Woofer: 12'', 2.5'' v.c
Woofer 12'', 2.5'' v.c
Input signal bal/unbal
Input connectors XLR, Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Crossover Frequencies 220 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Volume, Boost, Mic/Line
Total Power 1400 W Peak, 700 W RMS
High frequencies 400 W Peak, 200 W RMS
Low frequencies 1000 W Peak, 500 W RMS
Cooling Convection
Connections VDE
Cabinet/Case Material PP Composite
Handles 1 Top
Grille Steel
Colour Black
Dimensions Width: 400 mm / 15.75 inches
Height: 2285 mm / 89.96 inches
Depth: 460 mm / 18.11 inches
Weight 20.2 kg / 44.53 lbs
Specifications
Number of Speakers 9
Number of Input Channels 0
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Coverage (Dispersion H x V ) 120° x 30°
HF wattage (RMS) 200 Watts (RMS)
LF Wattage (RMS) 500 Watts (RMS)
Maximun SPL 128 dB
Power rating (Peak) 1400 Watts (Peak)
Power rating RMS 700 Watts (RMS)
Speaker size 8 Inches
Enclosure Type Composite
Dimensions 400 x 2285 x 460 mm (WxHxD)
Net weight 20.2 KG
Shipping weight 0 KG
Connections (Input) 1 x XLR / Jack Combi
Connections (Output) 1 x XLR
Colour Black
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable Yes
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
