500 Series Instrument Preamplifier

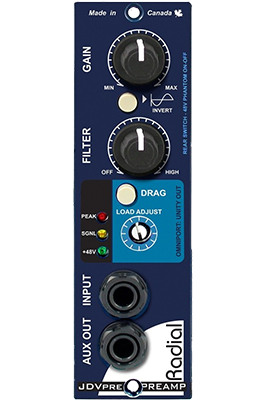

Radial - Workhorse JDV-Pre
An effective class-A instrument preamplifierThe Radial JDV-Pre is a 100% discrete class-A 500 series instrument preamp purposely designed to capture the natural tone and distinct character of the instrument. Featuring AccuState gain control that allows for low noise at all levels, a variable low frequency cut for acoustic instruments and a feed-forward input stage with zero negative feedback.
At A Glance
• 100% discrete class-A instrument preamplifier
• Feed-forward input stage with zero negative feedback
• AccuState gain control for low noise at all levels
• Variable low frequency cut for acoustic instruments
Ways To Use The JDV-Pre
JDV-Pre

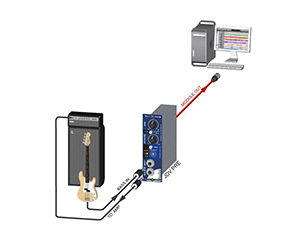

standard setupThe standard DI setup would be a bass guitar with magnetic pickups connected to the front panel jack and the instrument signal is thruput to a stage amp. The JDV-Pre's balanced output connects to your recording or PA system.
Acoustic Instruments

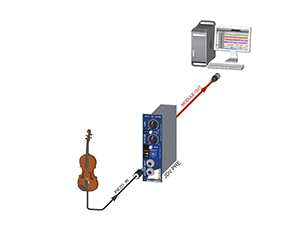

with piezo pickupsAcoustic instruments like violin, cello and string bass often use a piezo pickup atached to bridge. The JDV-Pre features a variable input impedance that can be switched to an ultra-high 4meg Ohms mode that brings out all the tone from piezo transducers.
JDV-Pre with
a microphoneConnecting a condenser instrument mic to the rear XLR input enables you to use the JDV-Pre as a mic-preamp. Shown here is a DPA 4099G clip-on microphone with acoustic guitar. The JDV-Pre's balanced output connects to your recording or PA system.
The Tech Spec
| Features | Specification | Audio Circuit Type | 100% Discrete Class-A |
|---|---|
| Frequency Response | 20Hz - 20kHz, +0/-4dB |
| Dynamic Range | >93dB |
| Gain | +46dB |
| Input Impedance | 3.9 megOhms (1/4'' Input, Drag Off) 22k Ohms - 500k Ohms (1/4'' Input with Drag) 50 Ohms - 2.7k Ohms (XLR Input with Drag) |
| Equivalent Input Noise | -90dBu |
| Chassis | 14-Gauge Steel |
| Power Supply | 80mA |
| Dimensions (L x W x D) | 229mm x 165mm x 51mm 9" x 6.5" x 2" |
| Weight | 0.7kg 1.5lbs |
