1x4 Line Distribution Amplifier
Radial - Workhorse ChainDrive
An effective solution to audio distributionThe Radial ChainDrive is a unique 1×4 distribution module designed to send any audio signal to multiple processers, effects, or remote audio systems simultaneously. The ChainDrive features individual output level controls with balanced or unbalanced operation and is compatible with all 500 series rack units.
At A Glance
• 1×4 line level distribution amplifier
• Balanced or unbalanced operation
• Individual output level controls
• Compatible with all 500 series racks
Ways To Use The ChainDrive
Multiband compressionThe ChainDrive allows you to split the signal to feed multiple dynamic processors for multi-band compression and have different frequencies cause compression to occur depending on the program material.
Feeding multiple effectsAdd character spice and effects to any track by sending it into the ChainDrive and then have it feed various effects processors simultaneously. Use Shuttle modules and the Workhorse for return paths and mix each stem as needed.

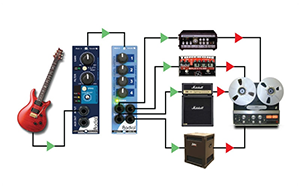

Feeding amps and pedalsUse the ChainDrive as a guitar distro to feed various guitar amps and effects simultaneously. Add mics and then mix to create possible audio!
The Tech Spec
| Features | Specification | Audio Circuit Type | Op-Amps |
|---|---|
| Frequency Response | 20Hz - 20kHz |
| Input Connectors | 500 Series Connection |
| Output Connectors | 4 x 1/4" Jacks |
| Dynamic Range | 124dB |
| Input Impedance | 10k Ohms |
| Common Mode Rejection Ratio | 53dB |
| Equivalent Input Noise | -104dBu |
| Maximum Input | +24dBu |
| Maximum Output | +28dBu |
| Data Compression | ±16V @ 31mA |
| Dimensions (L x W x D) | 229mm x 165mm x 51mm 9" x 6.5" x 2" |
| Weight | 0.7kg 1.5lbs |
