Muting DI Box
Radial - StageDirect

Radial StageDirect

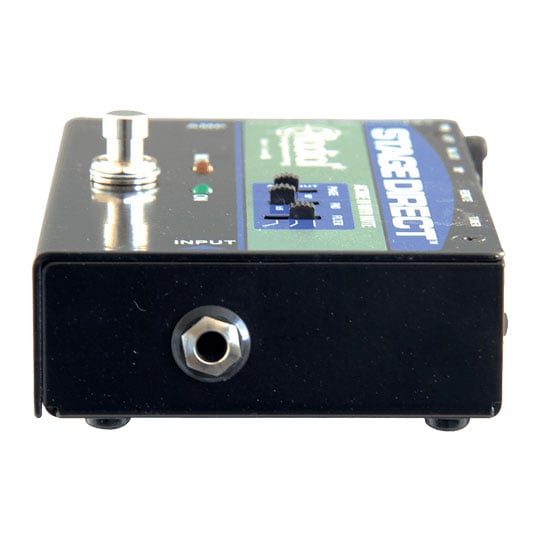

Active DI with footswitch mute & tuner outThe Radial StageDirect is a state-of-the-art active direct box designed for musicians who require extra control when they are on stage. As with most DIs, the StageDirect is equipped with a Hi-Z input for the instrument, a thru-put for the stage amplifier and a balanced Low-Z output for the PA system.

Unlike most DIs, the StageDirect also features a second Hi-Z input, with an AB select footswitch that allows you to instantly change between instruments. There is also a dedicated tuner out and a mute footswitch that cuts the signal going to the PA and stage amplifier while leaving the tuner output active. This enables the artist to mute the guitar when not in use or quietly tune in between songs.

At A Glance • Silently switch instruments on stage without noise
• Eliminates feedback when instrument is not in use
• Remote control lets stage tech mute signal when switching

Innovative Design

Radial StageDirect

exceptional audioThe innovative circuit design is a combination of a class-A FET input driver with a low noise op-amp to deliver incredible audio at all frequencies. A -10dB pad can be inserted for extra high output instruments such as active basses or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback.

A 180° polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic ‘hot spots’ on stage by electronically removing the problem. A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform.

Switching is done locally using the select and mute footswitches, while the mute function can also be controlled remotely by connecting a momentary (non-latching) footswitch to the dedicated ¼” connector. This allows the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. It can be powered by standard 48V phantom from the mixing console or by using the included 15VDC power supply. The StageDirect is just as effective for acoustic guitar or bass, and works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system.

StageDirect Applications

Radial StageDirect

Acoustic guitarAeamlessly switch between instruments on stage, while sending a clean signal to the PA as well as a stage amp. LEDs provide instant visual feedback to let you know which instrument is active.

Radial StageDirect

Electric bassUse the StageDirect to quietly switch between your active and passive basses. Sends a balanced DI signal to the PA while also feeding a stage amp. Use the mute switch to silently tune between songs.

Radial StageDirect

Mandolin / dobroUse a remote switcher like the Radial JR1-M™ to mute when tuning or changing instrument cables, making it easier for the multi-instrumentalist to focus on their performance and worry less about switching inputs.

The Tech Spec

Features Specification
Audio circuit type Active Buffer with class-A FET front end
Frequency Response 20Hz - 20kHz
Dynamic Range 100dB
Instrument Input Impedance 250k Ohms
Maximum Input +13dBu
XLR Output Impedance 250 Ohms
Intermodulation Distortion 0.012%
Remote Switch Momentary (pulse) ¼” contact closure
Power 48V phantom or 15V/400mA power adapter
Construction 14 gauge steel chassis and outer shell
Finish Durable powder coat
Circuit Active
Channels 2 Channels
Transformer Isolator No
Battery Option No
Thru No
