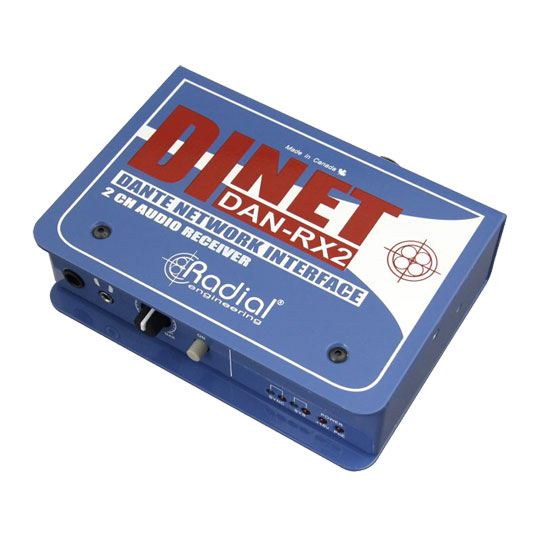

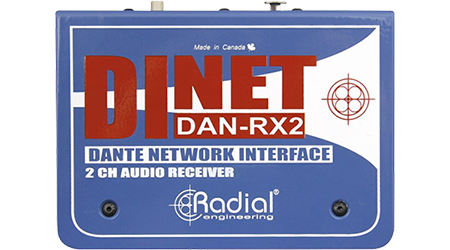

Radial DiNET DAN-RX2 2-Channel Dante Network Receiver
Radial DiNET DAN-RX2 - Dante Ethernet Receiver 2-Channel, 24bit/96kHz Digital to Analogue Endpoint
2-Channel Dante Network Receiver
Radial - DiNET DAN-RX2

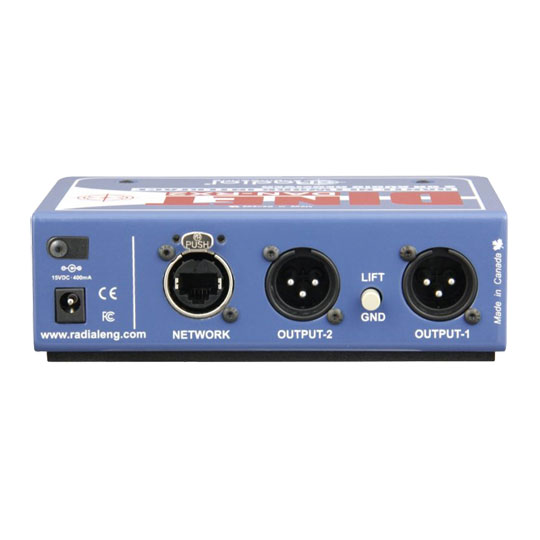

Dual Output Dante EndpointThe Radial DAN-RX2 is a road-readyy digital receiver capable of delivering two channels of analogue audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs feature a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring.
The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for vital applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.
at a glance
• Stereo analogue output device for Dante networks
• Balanced XLR outputs for connection at mic or line level
• Built-in headphone amplifier for personal monitoring
• 24bit/96kHz digital to analogue conversion
• Compliant to AES67 specifications
DiNET DAN-RX2 Applications

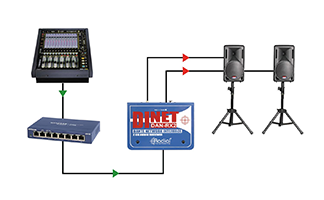

Using the DAN-RX2
to connect a small PA systemQuickly route a stereo feed to small PA systems in overflow rooms or remote locations within the venue.

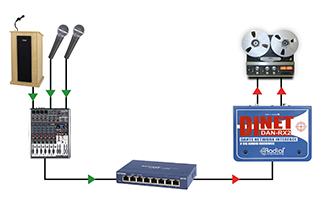

Using the DAN-RX2
for press distributionPress recorders are often placed in different rooms away from the live event. The DAN-RX2 is an easy solution to send audio to these rooms to connect directly to a recorder or to feed a press box when necessary.

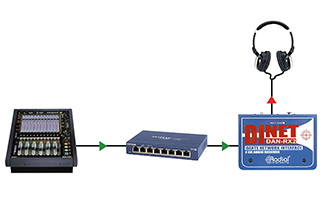

Using the DAN-RX2
for personal monitoringThe dedicated headphone outputs on the DAN-RX2 allow it to be used as a personal monitoring system. The sound engineer can create a unique mix for musicians, producers or any other event staff that need to monitor a feed in any location on the network.
Radial Engineering DAN TX2 DAN RX2
The Tech Spec
| Features | Specification | Audio circuit type | High current balanced active output device |
|---|---|
| Number of channels | 2 |
| Frequency response | 20Hz-20kHz |
| Dynamic range | >100dB |
| Gain | +18dBu max @ 0dBFS |
| Total harmonic distortion | 0.007% @ -6dBFS |
| Output Impedance | 150Ω |
| Sample Rate | 44.1kHz, 48kHz, 88.2kHz, and 96kHz |
| Input Connectors | 2x XLR male, 1x 3.5mm & 2x 1/4” headphone out |
| Output Connectors | 2x XLR male, 1x 3.5mm & 2x 1/4” headphone out |
| Extras | Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >75dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af |
| Construction | 14-gauge steel |
| Finish | Durable powder coat |
| Power | 15VDC 400mA (included) or PoE |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Warranty | Radial 3-year, transferable |
| Size (L x W x D) | 4.5” x 2” x 6” 121 x 6 x 147mm |
