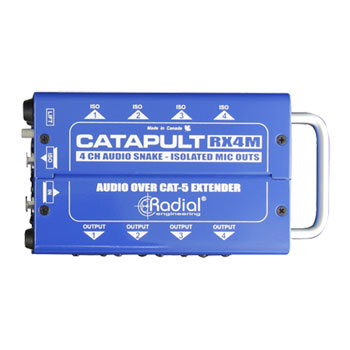

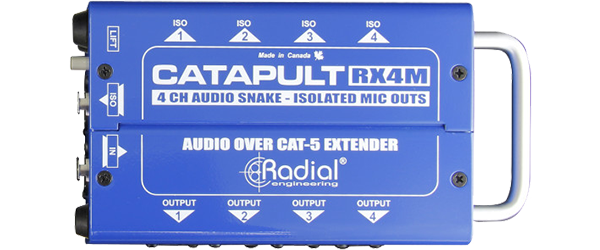

Radial Catapult RX4M 4-Channel Cat5 Snake Receiver
Radial Catapult RX4M 4-Channel Receiver, Balanced Outs, Mic-Level Transformers
4-Channel Cat5 Snake Receiver
Radial - Catapult RX4M
Cat5 Snake for Mic-Level RoutingThe Catapult RX4M is four-channel mic level splitter and isolator that enables you to split four mic feeds and send them over a single standard cat5 shielded twisted pair cable. This allows you to split mics to three different locations; such as front-of-house, monitors, and a recording device.

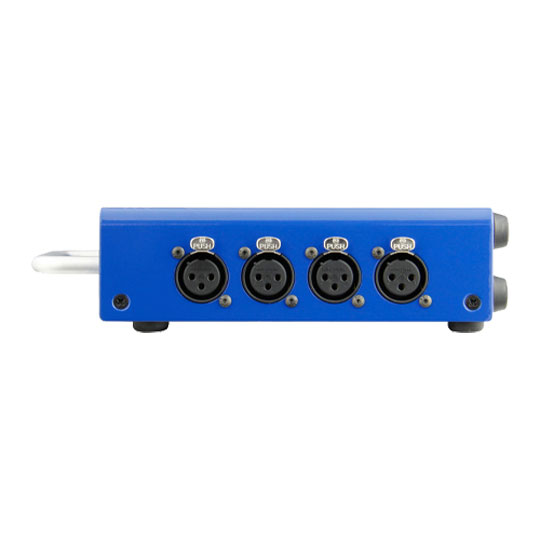

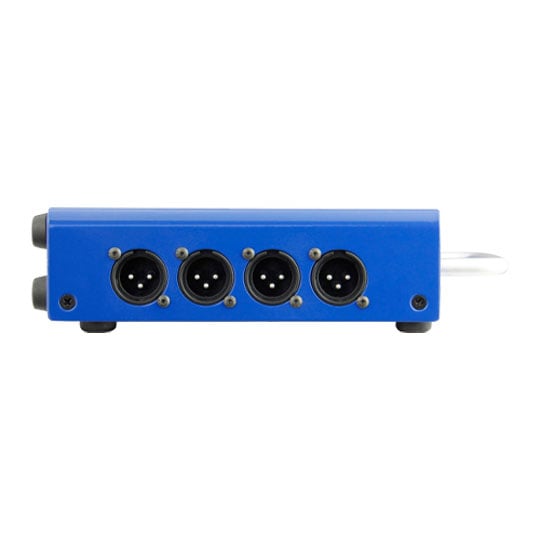

Mic level isolation transformers in both units keep each destination isolated from the others, removing any problems that occur from ground loops such as buzz and hum. The RX4M has four direct XLR-M outputs and four isolated XLR-M outputs and features RJ45 type Ethercon connections with ground lift switches. Phantom power can be provided to the mics via the direct outputs, as long as a shielded Cat 5 cable is used.
140dBDynamic Range
7Hz - 20KHzFrequency Response
+35dBuMaximum Input
Amazing Features
• 4 x XLR through-outputs with line-level transformer isolation for extra routing
• Ethernet through-output allows for adding extra Catapult models
• Minimal noise and flat frequency response
• Tough glass-filled nylon XLR connectors
• Long lasting nickel-silver contacts
How to Connect Analogue Audio Through Cat 5 Ethernet with the Radial Catapult
The Tech Spec
| Features | Specification | Audio circuit type | Passive mic splitter, transformer based |
|---|---|
| Frequency response | 7Hz - 20KHz |
| Dynamic range | 140dB |
| Total harmonic distortion | 0.001% |
| Common Mode Rejection Ratio | 113dB |
| Maximum Input | +35dBu |
| Features | Ground lift Input Connectors: XLR, RJ45 Output Connectors: XLR, RJ45 |
| Construction | 14 gauge steel chassis & outer shell |
| Power | Passive, no power required |
| Size (L x W x D) | L: 8 1/8 x W: 4 1/8 x H: 2 |
| Weight | 2.6 LBS |
