Adastra Rack Mixer with Bluetooth & USB/FM Player - MM321
Adastra - MM321 Rack Mixer with Bluetooth & USB/FM Player
Email me when the availability or price changes
Finance this product
- From £15.31 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Rack Mixer With Bluetooth & USB/FM Player
Adastra - MM321
Versatile yet easy to use mixerThe Adastra MM321 rack-mountable 1U mixer features a built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function.

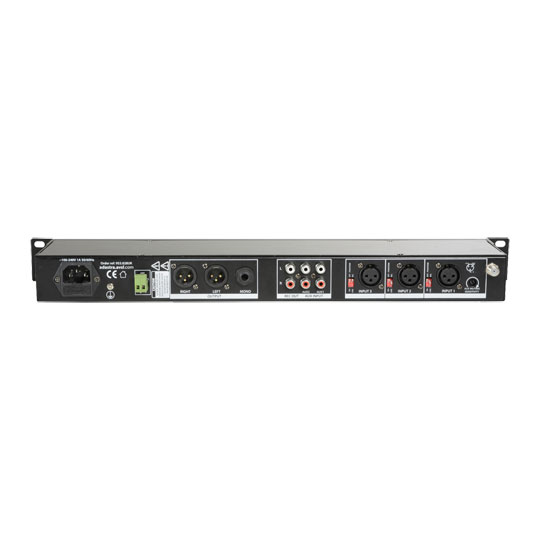

Dual stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.
at a glance
• Bluetooth receiver built-in
• Internal USB player and FM tuner
• Mono or stereo operation
• Switchable +20V phantom power
• 24V emergency mute contacts
The Tech Spec
| Features | Specification | Power supply | 100-240Vac, 50/60Hz (IEC) |
|---|---|
| Inputs : mic/line | 3 x XLR (bal/unbal) |
| Audio source | Internal Bluetooth, USB & FM player |
| Outputs | L+R XLR, Mono 6.3mm jack, Record out (RCA) |
| Emergency control | 24V contacts mute all except channel 1 |
| Phantom power | +20V (switchable channels 1-3) |
| Fuse | T1AL |
| Controls | Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level |
| Inputs : aux | 2 x L+R RCA |
| Input : line | 3.5mm jack to media player |
| Rear panel controls | Priority muting level, mic/line and phantom DIP switches |
| Input impedance | 2.2k Ohms (mic/line), 10k Ohms (aux) |
| Frequency response : mic | 20Hz - 18kHz |
| Frequency response : line | 14Hz - 20kHz |
| Frequency response : aux | 10Hz - 23kHz |
| Input sensitivity : mic/line | -45dBV |
| Input sensitivity : aux/line | -10dBV |
| Signal to noise ratio : mic | 55dB |
| Signal to noise ratio : aux/line | 60dB |
| THD | 0.05% |
| Dimensions | 482 x 130 x 44mm |
| Weight | 1.43kg |
