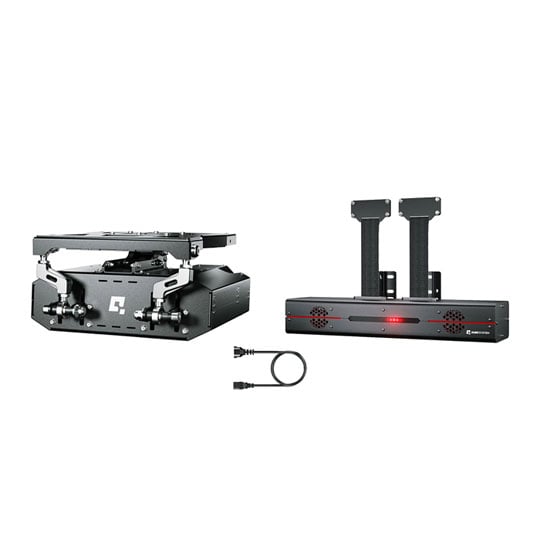

QUBIC SYSTEM QS-H13 Seat Mover + QS-BT1 Seat Belt Tensioner Bundle for Racing Sims

Qubic System QS-H13 Seat Mover and QS-BT1 Belt Tensioner Bundle

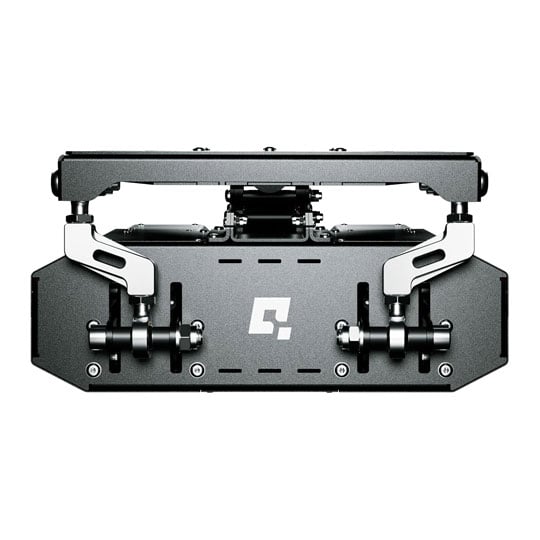

Qubic System QS-H13 2DOF Seat Mover

2DOF Seat Mover QS-H13 Challenger sets a new benchmark in the world of motion systems for those seeking a compact and ultra-quiet solution for their driving or flight simulator.
The Qubic System seat mover - QS-H13, built using the same advanced technology as the QS-220 actuators, outperforms and challenges all currently available seat mover solutions.

By delivering smooth and precise motion across two axes (pitch/roll), it accurately simulates the forces experienced during braking, cornering in a car, or executing sharp manoeuvres in an aircraft.

Next Level Seat Mover

QS-H13 2DOF Seat Mover, designed for individuals with limited space for a simulator who still want to elevate their immersion experience without cluttering their environment.

Built with industrial-grade components and exceptional structural rigidity, ensuring the platform remains stable and delivers a seamless connection with the vehicle, allowing users to feel details such as suspension behaviour with precision.

Easy to install, requiring no special manual skills or technical knowledge. It is compatible with most aluminium cockpits without the need for additional brackets or drilling holes.

Operates on 115/230V, eliminating the need for voltage converters. Simply plug it in and play. Additionally, it features low power consumption compared to other systems on the market.

Vibrations and Haptics

Say goodbye to external devices like bass shakers or other vibration generators for effects such as engine feedback. With QS-H13, you get integrated functionality delivering a wide range of low- and high-frequency vibrations. This enhances your ability to feel diverse effects, improving your connection with the vehicle and helping you become a better driver or pilot

The system efficiently transfers these vibrations to the seat and cockpit hardware, so you can distinctly feel engine pulses, RPM changes, gear shifts, and a wealth of road texture - from micro-bumps to curbs and rumble strips.

These features are typically found only in high-end products, setting this device apart from lower-cost alternatives that lack vibration effects. It highlights the superior quality of Qubic System's Seat Mover.

Precision Without Delay

One of the greatest challenges in the world of simulation is ensuring that a device can keep up with telemetry signals and accurately reflect the input without unnecessary delays.

The QS-H13 Seat Mover has been fully engineered, both in hardware and software, to eliminate perceptible latency while driving. It features ultra-low latency of just 10 ms - measured from the moment a telemetry signal is received to the exact moment the machine responds with real physical motion.

True G-Force Dynamics

2DOF Seat Mover features a deeply positioned pivot point, located very close to the user's seat, enhancing the realism of G-forces during operation.

This design closely mimics the dynamics of a real vehicle, improving immersion and delivering a heightened sense of "being in the vehicle". Users can fully experience the subtle shifts and forces during acceleration, braking, and cornering for a truly authentic simulation experience.

Quietness and Smoothness

Utilizing the same technology as the QS-220, QS-H13 ensures ultra-quiet operation by eliminating gearboxes and DC motors commonly found in other solutions.

Despite offering rich haptics, the system is neighbour-friendly - vibrations do not transfer into the floor. The actuator architecture avoids the vertical "up-down" frequency that would otherwise knock on the floor and propagate through the building structure. As a result, structure-borne noise is significantly reduced and any residual vibration is greatly minimized.

Thanks to its silent, low-transfer behaviour, the simulator can be used freely in residential spaces and during late hours without disturbing other household members or neighbours.

Full Immersion Experience

The QS-H13 Seat Mover is fully compatible with the QS-BT1 Seat Belt Tensioner - the most advanced solution of its kind on the market. Together, they create a perfectly synchronized system that combines motion and physical immersion. While the QS-H13 precisely replicates vehicle dynamics, the QS-BT1 adds realistic tension feedback during acceleration, braking, and cornering, letting you literally feel the forces acting on your body.

This combination transforms any simulation into a fully immersive experience, allowing you to dive deep into the world of racing or flight and experience every manoeuvre with remarkable authenticity.

Additionally, the QS-H13 comes with dedicated mounting brackets for the QS-BT1, ensuring easy and seamless installation on any aluminium cockpit frame.

Designed for Aluminium Cockpits

The 2DOF Seat Mover - QS-H13 Challenger is built to fit perfectly with most aluminium cockpits and cockpits from other popular brands. Its design makes it easy to install and compatible with a wide range of setups, whether they are standard or custom-made.

It also works flawlessly with other devices from the Qubic System family, like the QS-210, QS-220, QS-CH2, and QS-BT1. This makes it simple to expand your setup and ensures all components work well together for the best simulation experience.

In-House Software

Qubic Manager is an in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released. The Qubic Manager is a powerful engine, yet it's simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

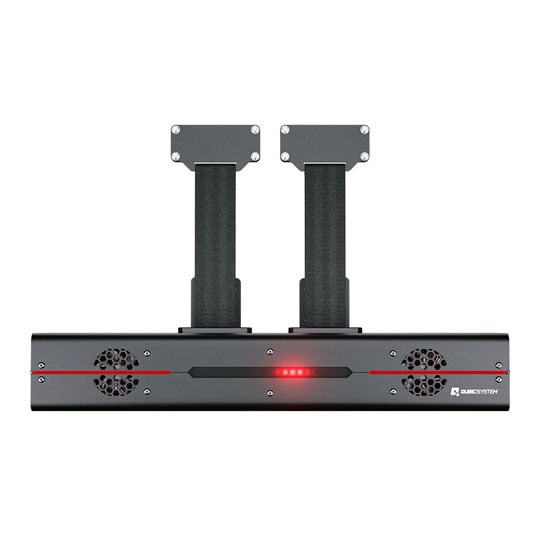

Qubic System QS-BT1 Belt Tensioner

Qubic System QS-BT1 Belt Tensioner

Driven by the same technology as breathtaking QS-220, QS-BT1 is a multi-purpose, dual channel, direct drive seat belt tensioner that increases sim racing immersion like no other device in its class and price range. It can complete not only force feedback offered by direct drive wheels, but also move up the level of overall experience offered by already really immersive QS motion platforms and if needed, it can even act as a standalone independent device.

Simulation of braking, lateral accelerations, high speed cornering, wheel locks and traction loss are among list of primary features of QS-BT1. Asymmetrical engine vibrations and road surface effects like rumble strips are also available for games that support them and despite being designed mainly for sim racing application, with its 200 N of force per channel, QS-BT1 can also successfully be used in flight simulators, to make you feel gigantic forces during high G manoeuvres.

Enhancing Car Braking Simulation Experience

Belt tensioner QS-BT1 significantly enhances the level of realism, providing you with an unparalleled opportunity to deeply engage in the intricate dynamics of braking.

This innovative device transforms car simulations into an exhilarating and exceptionally authentic experience, setting a new standard for the intensity and authenticity of virtual driving.

Advanced Steering Simulation with Dual Tensioner Tech

The advanced technology of the dual-channel seat belt tensioner enables precise steering motion simulation, creating a dynamic and realistic experience when turning.

Feel subtle reactions on corners and have full control over the steering wheel, just like in a real vehicle.

Vibration to Increase Immersion

QS-BT1 is an advanced seat belt tensioner equipped with innovative engine vibration technology. With this device, you can literally feel the pulsation of the engine power, adding realism and intensity to their virtual driving experience.

Engine vibrations are precisely tailored to reflect changing road conditions, responding to dynamic accelerations and gear shifts. QS-BT1 allows you to fully immerse themselves in simulated automotive emotions, delivering unforgettable sensations for both racing simulator enthusiasts and those seeking realistic automotive experiences.

Gear Shifting Realism

Seat belt tensioner QS-BT1 goes beyond traditional simulation experiences by introducing the sensation of gear shifting. Through its sophisticated technology, you can distinctly feel the transition between gears as the seat belts respond accordingly to gear changes.

This innovative integration enhances the overall realism of the driving simulation, providing you with tactile feedback that replicates the nuanced dynamics of a real vehicle, making the virtual driving experience even more immersive and engaging.

Compatibility with Other Devices

Device alone is not able to create sensation of forward acceleration and high speed cruising, especially when driving electric vehicle, where engine vibrations are absent and there is only road noise. Even with all effects tuned up, there is a feeling that something is still missing on long straight, in formula car, driving 300 km/h. Fortunately QS-BT1 is compatible with all motion platforms that are powered by Motion Systems technology (QS, PS, HS) and also with our simple to build, fully OpenSource, DIY WindSim which can easily demonstrate you what it is like to drive a car without a roof… in winter… wearing a wig.

Beyond 4 Wheels

Being jet fighter pilot is your dream? You want to experience the overload (G) that pilot feels?

QS-BT1, with its astonish 41 kg/90 lbs of sustained pulling force, allows to experience and feel differences between 1G, 2G, 3G or even 9G. Positive G, negative G or both, everything depends on your preferences, sky it the limit, literally. Centrifugal forces, engine vibrations, cannon fire, missiles launch or flares dispose - all of them generate an accurate feedback through QS-BT1 and immerse you deeply into the simulation. The missing factor that binds your body to the seat, the stress you feel on your body during tight manoeuvres, making you wonder if you really wish to repeat the same manoeuvre, are all finally there to make the gap between reality and the simulation once again smaller.

High-stress Simulations

Professional racing harnesses are built for extreme conditions, offering superior safety and durability over sim racing harnesses. Their robust construction withstands dynamic movements from the QS-BT1 platform, essential for realistic g-force simulation.

Unlike sim racing harnesses, which wear out faster and offer less safety, professional harnesses feature a secure locking mechanism that prevents accidental release during use, yet allows quick disengagement under load for safety. This balance ensures both security and ease of exit in high-stress simulations and ease of use.

Ready For 24h Endurance Racing

The QS-BT1 provides extremely quiet operation thanks to the technology used as in the QS-220. As a result, with the near-silent performance, QS-BT1 can be used at late hours without disturbing the rest of the household and is perfect for long endurance races where there is a driver changeover - your racing partner will be able to rest or sleep peacefully next to the running QS-BT1.

When No Motion Is Just Better

Classical motion platforms have no choice and have to depend on Earth's gravity when it comes to prolonged accelerations. Even having 20 deg pitch gives only about 3.3 m/s2 of perceptible sustained acceleration, which assuming 50 kg as human's chest weigh, equals to only 165 N of force. Doing any trail-braking, which requires both pitch and roll to simulate it correctly, reduces mentioned forces drastically. When compared to QS-BT1, which generates 200 N per channel , it is obvious that they belong to two different leagues. When both systems are combined, the motion platform does not need to emphasize that much on simulating prolonged accelerations anymore and can utilize the full extent of its capability on everything else.

Seat Mover:
• 10-Degree Travel: Enough to shift body weight in corners
• Vibration Feedback: Built-in 0-100 Hz haptics replace a bass shaker
• Sub-10ms Response: Fast enough that motion matches the visuals, even in VR
7 No Floor Space Needed: Mounts on the seat rail, not under the cockpit - adds motion without changing the room

QS-H13 Seat Mover Set:
Main unit (QS-H13)
Set of cables
External power supply
Mounting & Accessories
Mounting adapters for aluminium cockpits
Mounting adapter for QS-BT1
Motion-Lock jumper + interlink cable

Belt Tensioner:
• Powerful Performance: 360W rated power with 3A/115VAC and 2A/230VAC power source.
• Dual-Channel Capability: Two independent channels for a versatile and dynamic simulation experience.
• Advanced Protection: Class 1 protection for enhanced safety during operation.
• Versatile Connectivity: USB interface for seamless integration with Windows PC.
• Pulling Force: 20.5kg/45lbs/200N per channel, providing realistic feedback.
• Multifunctional RGB: Illuminated with customizable RGB lighting for a visually immersive experience.
• Compact and Lightweight: Streamlined dimensions and device weight for practical use.
• Motion Platforms Compatibility: Compatible with QS, PS, HS motion platforms for extended versatility and most cockpits available on the market.
• Effect Diversity: Supported effects vary based on the specific game in use.
• User-Friendly Setup: Maximum length of USB and Motion-Lock cables at 3m for flexible positioning.
