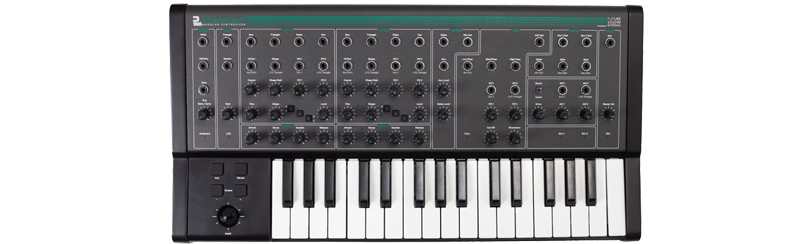

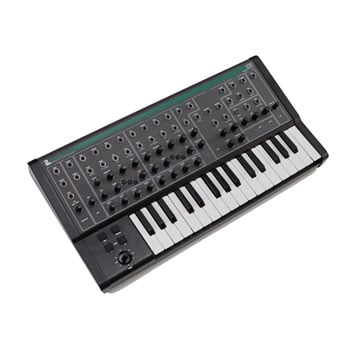

PWM - Malevolent, Semi Modular Analogue Synthesiser
PWM - Malevolent, Semi Modular Analogue Synthesiser, 32 Velocity-sensitive mini-keys, 2 VCOs, USB bus-powered
Email me when the availability or price changes
Semi-Modular Analogue Synthesiser
PWM - Malevolent

PWM's debut synthesiser
-Malevolent-
Malevolent has been designed by Paul Whittington in collaboration with Bristol based synth manufacturer Future Sound Systems who have provided the analogue circuitry, and Ben Supper who developed the control interface.
Paul has a had a long career in developing products for some of the biggest names in the industry and is now using his expertise to build instruments, bringing in talents from friends he’s made during his tenure in development.
Future Sound Systems are a renowned Bristol based synthesiser manufacturer, who are responsible for some of most forward-thinking designs on the market, they specialize in modular and semi-modular synthesiser & their design prowess is very apparent in Malevolent.
Despite it’s diminutive size, Malevolent sounds big, aggressive and is capable of everything from soaring leads, huge bass sounds, percussive phrases, weird sound FX and more.
It's form factor, user interface and price point make it a great option for those taking their first step in the modular domain, but it's unique sound, extensive modulation capabilities and the options for integrating seamlessly with other synthesisers, makes it a great option an for experienced user who's looking for something a little different.
at a glance
• Wave-shaping VCO’s, with three switchable / mixable waveforms
• Multi-mode 2-pole Sallen-Key topology filter with resonance
• High quality VCA circuit with a superb overdrive
• Monophonic USB / MIDI to CV Converter
• 6 mode arpeggiator with hold
• Can be powered by USB BUS power
• Vast expansion possibilities with Eurorack standard 1V/Oct gear
what's included?
• 1 x Malevolent
• 4 x Coloured Patch Cables
• 1 x Quick Start Guide
• 1 x USB-C Cable
• 1 x Power Supply
PWM // Malevolent // Official Promo

The Tech Spec
Features | Specification | Pure Analogue signal path designed by Future Sound Systems | Pure VCOs 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching Normalised signal path for immediate sound Malevolence Additional rear panel line out Additional headphone out |
---|---|
2 Voltage Controlled Oscillators | Saw / Triangle / Pulse outputs plus Mix for each oscillator 1V/Oct pitch control input Shape control / pulse width modulation input 2x Frequency Modulation inputs Coarse / Fine tune control Shape mod amount control FM1 and 2 mod amount controls Shape control Selectable waveforms for the mix output Individual osc level control |
LFO (Low Frequency Oscillator) | Triangle / Square wave outputs Rate control |
2x Envelopes | Individual ADSR controls for each envelope Individual gate inputs Individual envelope outputs |
Multi-mode 2 pole VCF (Voltage Controlled Filter) | Low pass / Band pass / High Pass individual inputs 2x Frequency Modulation inputs with amount controls Filter cutoff Filter resonance |
Mixer | Noise w/level control Aux input w/level control |
Keyboard Control | 32 Velocity-sensitive mini-keys Octave shift +/- 4 octaves Pitch output Velocity output Gate output Local Off mode for DAW use |
Weight | 220g |
Headphones | Yes |
Effects Loop | Yes |
MIDI I/O | In |
USB | 1 x Type B |
Footswitch I/O | 2 x 1/4" (GA-FC, Exp pedal) |
Footswitch Included | No |
Computer Connectivity | USB |
Software | BOSS Tone Studio |
Weight | 19.4 lbs |
