PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX
PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX
Scan code: LN118342 Manufacturer code: PUV-1610TX
£203.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX
  • Thumbnail 2 : PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX
  • Thumbnail 3 : PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX

PUV-1610TX 5-Play HDBaseT™ Transmitter (up to 100m) Power from RX

PUV-1610TX 5-Play HDBaseT™ Transmitter (inc. PoH & single LAN, up to 100m) Power from RX
MORE INFO
MORE INFO

Scan code: LN118342 Manufacturer code: PUV-1610TX
£203.99
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £68.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £9.96 / month (APR 16.9%) for 24 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

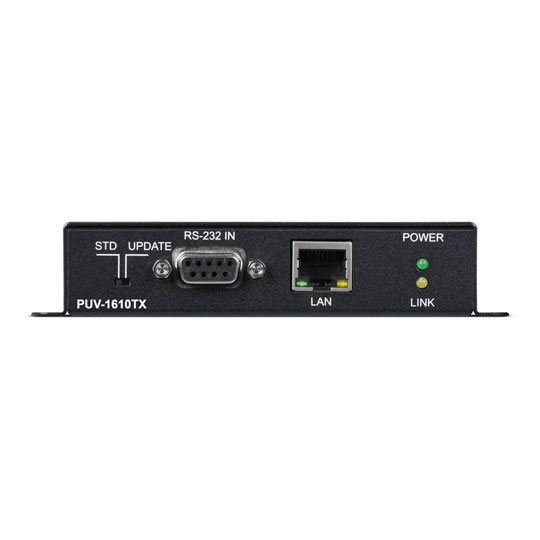

PUV-1610TX 5-Play HDBaseT™ Transmitter

The PUV-1610TX Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing commercial AV systems.

Features


• Supports uncompressed video/audio up to 10.2Gbps.
• HDCP2.2 Compliant.
• Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings.
• 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7.
• 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7.
• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD.
• 5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232).
• Supports 3D signals.
• PoH received from the mains powered RX.

Specifications
Edition
Interface
Video Input Signal
Audio Input Signal
Audio Input Format
Input/Pass-through Resolution
Input/Pass-through Chroma Subsampling
Video Output/Pass-through Signal
Audio Output/Pass-through Signal
Audio Output/Pass-through Format
Codec
Capture Resolution
Capture Chroma Subsampling
Audio Capture Format
Maximum Recording Quality
Input Ports
Output/Pass-through Ports
Supported Software
Compatible Operating Systems
Minimum CPU Requirements
Minimum Graphics Card Requirements
Minimum Memory Requirements
Dimensions
Weight
Additional Information
Scan Code LN118342
Model Number PUV-1610TX
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
