Proel WX10A Stage Monitor
Proel - WX10A, Active 2-Way Coaxial Stage Monitor
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Active 2-Way Coaxial Stage Monitor
Proel - WX 10A
'a professional yet affordable monitoring solution'WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.
The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.
The lightweight 500W CLASS D amplifier module with SMPS provides a high output that results in an unexpected SPL for such small loudspeakers. The sophisticated analogue processing provides a detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if necessary.
The WX monitors are available in two models, offering the right solution for different monitoring situations. The ultracompact WX8A can provide a high-quality monitoring also in very small spaces and it can give its best with speech, vocals and acoustic instruments. WX10A, with a higher SPL and a full-range response, is ideal for vocals, guitar, horns and electronic instruments or as a monitor for DJs.
123 dBMax SPL
70Hz - 20kHzFrequency response
60°Angular Coverage
At a glance
• Active 2-way coaxial stage monitor
• 1” compression driver with 1” VC
• 10” woofer with 2” VC
• 500 W total power
• Class D power amplifier with SMPS
• Dual LIMITER circuit
• 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
• SPL MAX 123 dB
• Frequency response 70 Hz - 20 KHz
• Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint
• Reinforced metal grille
• Recessed handle for easy transport
• Pole socket
WX Stage Monitor Series
The Tech Spec
| Features | Specification | System type | 2-way coaxial vented stage monitor |
|---|---|
| Low Frequency Device | 10” woofer with 2"VC |
| High Frequency Device | 1” compression driver with 1"VC |
| Angular Coverage | 60° |
| Frequency response | 70 Hz - 20 kHz |
| Max SPL at 1mt (peak) | 123 dB |
| Amplifier Continuous Power | 250W CLASS D with SMPS |
| Input Impedance | 30 kohm balanced, 15 kohm unbalanced |
| Input Sensitivity | -10 dBu |

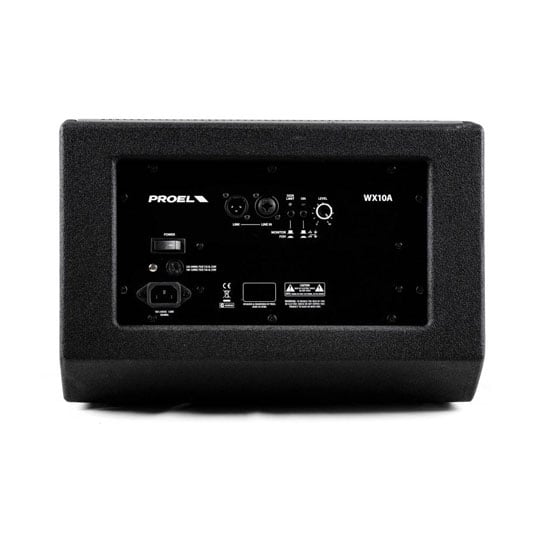

| Controls | LEVEL, PRESET selector (MONITOR, FOH), GND lift |
| Connectors | INPUT: COMBO (XLR-F/JACK), LINK: XLR-M |
| Power Supply | 230 VAC or 115 VAC - 50/60 Hz |
| Rated Consumption | 200 W |
| Construction | MDF with black anti-scratch polyurethane paint |
| Pole Adapter | 1 x side |
| Handles | 1 x side |
| Weight | 10 kg |
| Dimensions (W x H x D) | 390 x 396 x 270 mm |
