Proel U24H Wireless Handheld Microphone System
Proel - U24H, 2.4GHz USB Wireless Handheld Microphone System
- SCANPROTECT Protect against installation damage for 28 days. More info
2.4GHz USB Wireless Handheld Microphone System
Proel - U24H
crystal clear transmissionThe Proel U24 USB Wireless Microphones are professional wireless systems with high-definition, interference-free transmission thanks to the 2.4GHz technology and featuring an ultra-compact USB receiver. The receiver is powered thru the USB interface and features a dual-mode audio interface for an auto-sensing connection both to analogue and digital devices. It features plug-and-play operation without any driver installation and it can be connected to any PC/MAC for recording directly into your favourite DAW application. Using a proper USB type-A adapter it can be also connected to IOS or Android devices for digital stand alone applications.

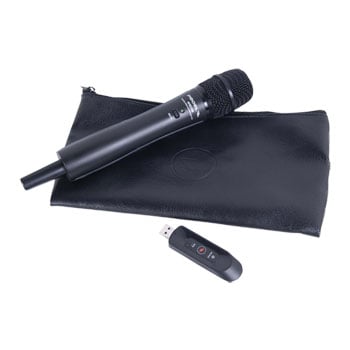

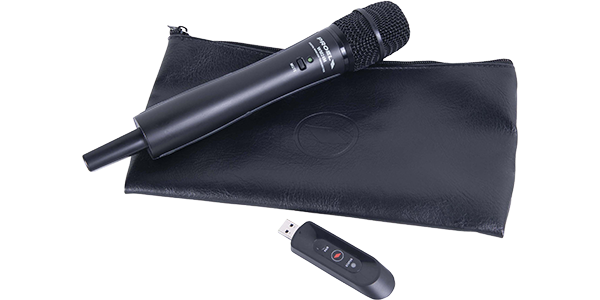

It can also be plugged into any Proel device with a USB WIRELESS input (such as V FREE and V WAVE speakers) for using a professional microphone system in a flash and without the hassle fo cables. The digital 2.4GHz wireless technology offers superior sound quality and maximum reliability, avoiding interferences from television stations and other broadcast devices. The transmitter is automatically paired to the receiver and the intelligent frequency hopping ensures a stable connection. U24H includes a handheld microphone featuring a high-quality dynamic capsule for dedicated vocal applications.
100ftRange
50Hz - 15kHzFrequency Response
2.4GHzFrequency Band
At A Glance
• 2.4 GHz ISM license-free operating band with Intelligent Frequency Hopping
• Ultra-compact USB receiver with dual-mode audio interface
• Easy pairing and memorization of matched devices
• Over 25 meters (100 ft) operating range in open spaces
• High-quality dynamic capsule
U24 - Receiver
The Tech Spec
| Features | Specification | Frequency Range | 2.404 – 2.476 GHz |
|---|---|
| RF Sensitivity | -78 dB |
| Frequency Response | 50 Hz – 15 KHz |
| Sampling | 16 bit @ 38.5KHz |
| THD | <0.05% @ 1KHz |
| SN Ratio | >85 dB |
| Transmission Delay | 18.3 mS |
| Output Connector | USB Type-A |
| Audio Output Level | 4dBu (1000mV) |
| Current | <55mA |
| Operating Temperature | -10 °C ~ 50 °C |
| Dimensions (WxHxD) | 94 x 26 x 9.5 mm |
WM24M - Handheld Transmitter
The Tech Spec
| Features | Specification | Frequency Range | 2.404 – 2.476 GHz |
|---|---|
| Transmitting Power | < 10 dBm |
| Transmission Distance | Up to 25m (open space) |
| Frequency Response | 50 Hz – 15 KHz |
| Sampling | 16 bit @ 38.5KHz |
| THD | <0.05% @ 1KHz |
| SN Ratio | >85dB |
| Transmission Delay | 18.3 mS |
| Power Supply | Battery 2x1.5V AA alkaline type |
| Operating Time | Up to 20 hours |
| Dimensions H | 278 x Ø: 47 mm |
