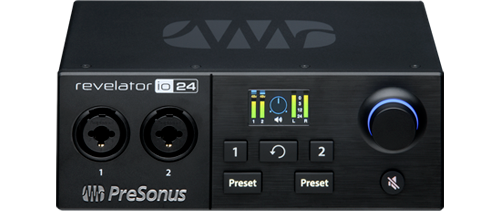

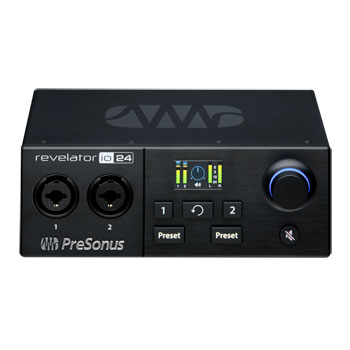

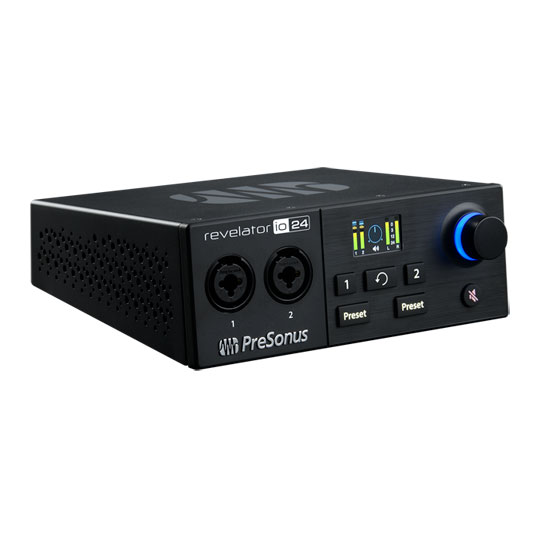

PreSonus - Revelator IO24 Audio Interface
PreSonus - Revelator IO24 - Livestreaming Audio Interface, 2 Mic Preamps, DSP Mixer - 2 Channels for Skype / Discord
USB-C Compatible Audio Interface
PreSonus - Revelator io24
featuring Integrated Loopback Mixer
and Effects for Streaming, Podcasting and More!Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Quickly record Zoom calls for your podcast, add backing tracks to your live stream performance, and more.
Produce a great mix for your stream fast by engaging Stream Mix mode and with the click of a button, your complete DSP mix–analog inputs, loopback channels, reverb, and effects–are patched to the USB stream, where you can easily send it to your streaming software. No complex routing or extra hardware required.
You’ll also get over $1000 USD of software to record, produce, and polish your podcasts and music, including: Studio One Artist, Ableton Live Lite, and the Studio Magic Suite. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is built to ‘cast.
USB 2.0Connectivity
2 x 4Simultaneous I/O
2 x micNo of Preamps
at a glance
• Add Revelator power and flexibility to any XLR microphone
• 2 XMAX-L mic preamps with +48V phantom power for professional XLR mics and crystal-clear sound
• 2 stereo loopback streams for mixing audio from Zoom, Skype, backing tracks, and more
• Professionally-crafted presets make you sound like a pro at the press of a button—or design, save, and share your own
• Stream Mix mode lets you create a complete stereo mix with Revelator io24 hardware inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
• Over $1000 worth of software including Studio One Artist, Ableton Live Lite, and Studio Magic Suite
Presonus - Revelator IO24
2 Channel DSP Mic Processing + Mixer for 2 Remote Callers
Don't think of this as an interface, think of it more as a 2 Channel Digital Studiolive desk with a software mixer that not only has physical and headphone outputs, but also two 'loopback' channels that you can use to connect in people on applications like Zoom, Teams, Skype or Discord and create separate mixes for them.
Want one to hear you, the other and both of them hear game sound, or a music bed? ... that's not a problem here, in fact its about the most advanced DSP routing that we've seen in a USB interface.
The Tech Spec
| Features | Specification | Computer Connectivity | USB 2.0 |
|---|---|
| Form Factor | Desktop |
| Simultaneous I/O | 2 x 4 |
| Number of Preamps | 2 x mic |
| Phantom Power | Yes |
| A/D Resolution | Up to 24-bit/96kHz |
| Effects | Highpass Filter, Noise Gate/Expander, Compressor, EQ, Limiter, Delay, Reverb, Detuner, Doubler |

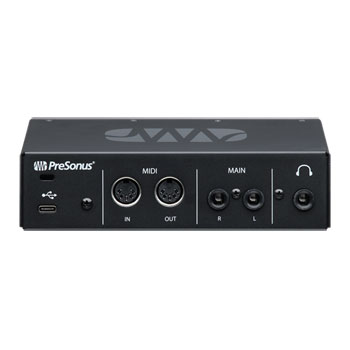

| Analogue Inputs | 2 x XLR-1/4" combo (mic/line) |
| Analogue Outputs | 2 x 1/4" |
| Headphones | 1 x 1/4" |
| MIDI I/O | In/Out |
| USB | 1 x USB-C |
| Software | Studio One Artist, Studio Magic Plug-in Suite |
| OS Requirements - Mac | macOS 10.13 or later, iOS 9.0.3 or later |
| OS Requirements - PC | Windows 10 or later, Chrome OS (limited features) |
| Bus Powered | Yes |
| Power Supply | USB bus powered |
| Height | 2.5" |
| Width | 6.25" |
| Depth | 6.25" |
| Weight | 2 lbs. |
