PowerColor AMD Radeon RX 9070 HELLHOUND 16GB GDDR6 Graphics Card
PowerColor Radeon RX 9070 HELLHOUND 16GB GDDR6 Graphics Card, RDNA4, 3584 Streams, 2590 MHz Boost
Email me when the availability or price changes
A New Dawn for Hellhound: Power in Every Shade

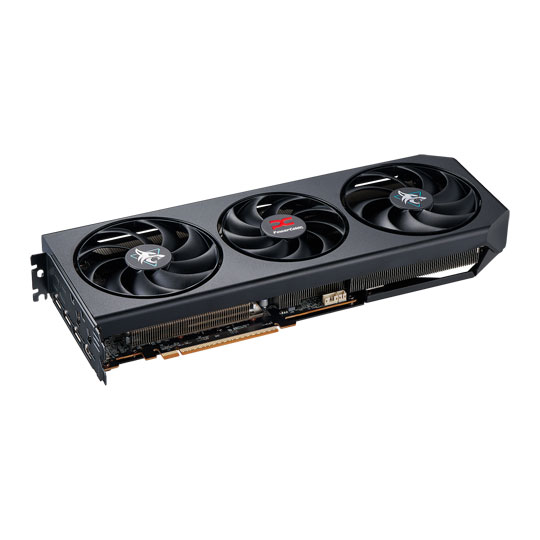

The PowerColor Hellhound AMD Radeon™ RX 9070 16GB GDDR6 is a cutting-edge graphics card built for demanding gamers standing as the steadfast guardian of the gaming realm. Powered by AMD RDNA™ 4 architecture, it combines high performance with advanced cooling technology, featuring a triple-ring fan design and four nickel-plated copper heatpipes. The card's 8+1 phase power design with dedicated memory power supply ensures stability during intense gaming sessions. With PCIe 5.0 support, dual BIOS options, and customizable Ice Blue LED lighting, the Hellhound RX 9070 delivers exceptional performance and style for AAA gaming and beyond.
Forged for Power and Precision
The PowerColor Hellhound RX 9070 Series delivers unmatched performance and reliability. Featuring a triple-ring fan design , 4 x 6 mm heatpipes, and a copper plate in direct contact with the GPU and VRAM, it ensures exceptional cooling efficiency. Engineered with a excellent phase VRM design and DrMOS with IMON real-time digital monitoring, it's built to provide stable, high-performance output for intense gaming sessions. The Hellhound is your ultimate ally in the heat of battle.
High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Intelligent Fan Controller
Utilising temperature detection from a smart chip, fans will start running when the GPU reaches 60°C and shut down below 50°C. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of more accurate temperature monitoring

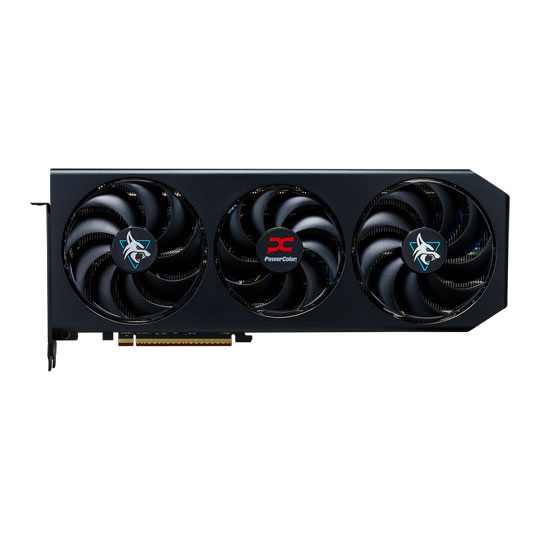

High-Efficiency Ring Blade Fans
Engineered for passionate gamers seeking the ultimate cooling experience, the Hellhound features an exclusive triple-ring blade design with up to 9 blades. This innovative design boosts fan speed while maintaining remarkably low noise levels, significantly enhancing air pressure and airflow to achieve exceptional cooling performance.
Low-Turbulence Reverse Fan Design
The outer two fans feature a reverse-rotation design that effectively reduces air turbulence during intake, enhancing cooling efficiency. This design not only improves airflow and air pressure but also reduces operational noise, allowing you to enjoy efficient cooling with a quieter gaming experience.
Direct-Contact Copper
The Hellhound's cooling system features a large, smooth nickel-plated copper base plate that efficiently conducts heat at all times. Covering both the GPU and memory, this plate rapidly absorbs and evenly dissipates heat, ensuring effective cooling even during high-intensity gaming sessions. This design maintains optimal performance and stability, allowing the GPU to operate at peak efficiency under demanding conditions.
Optimum Heatpipe Arrangement
A set of 4 x 6? nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.
High-Thermal Conductivity Honeywell PTM7950
The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
High-Efficiency DrMOS Power Module
Providing reliable support for every gamer, the Hellhound features a 8+1 phase power design, along with a dedicated 3+2 phase memory power supply. Equipped with conductive polymer capacitors, it ensures long lifespan, high conversion efficiency, and effectively reduces power loss during transmission.
High Quality PCB Design
Utilizes a 12-layer high thermal conductivity PCB material with a 2oz power layer, reducing signal attenuation during high-frequency transmission. This design meets the stability and high-current demands of advanced GPUs.

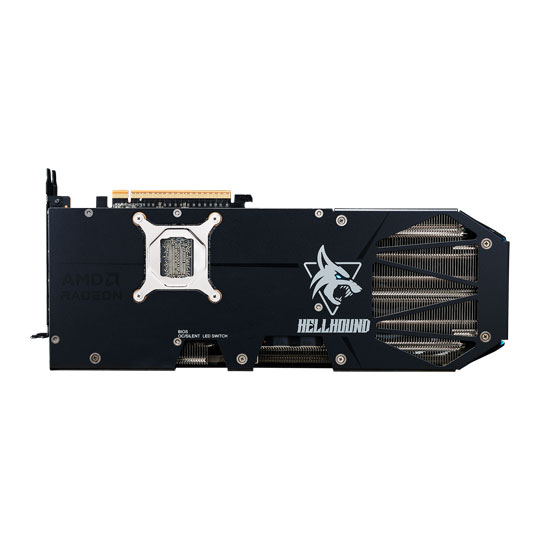

Reinforced Metal Backplate
Crafted from durable metal material, the backplate not only enhances overall structural support to prevent PCB bending and component damage but also integrates an excellent thermal design. Specially designed ventilation holes on the backplate improve heat dissipation efficiency and ensure stability even under heavy loads, providing users with safer and more reliable protection.
Dual BIOS Mode
Hellhound graphics cards feature Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance."
LED Lighting in Icy Blue
Showcasing a cool and elegant aesthetic, the icy blue LED lighting sets a high-class tone. Gamers can easily switch between modes using the dual-stage switch, letting the Hellhound dominate your gaming world and deliver a unique visual feast.
Features
o AMD RDNA™ 4 architecture
• 16GB GDDR6 memory
• PCIe 5.0 x16 support
• Triple-ring fan design with up to 9 blades
• 4 x 6mm nickel-plated copper heatpipes
• Large copper base plate for efficient heat dissipation
• 8+1 phase power design with 3+2 phase memory power supply
• Dual BIOS (OC / Silent modes)
• Customizable Ice Blue LED lighting
• Intelligent Fan Control
• Honeywell PTM7950 High-Thermal Conductivity material
• Support for AMD FSR 4 upscaling technology
• Compatible with PowerColor's Keystone software for RGB control
