Scan code: LN116915 Manufacturer code: IPC-C4B-N

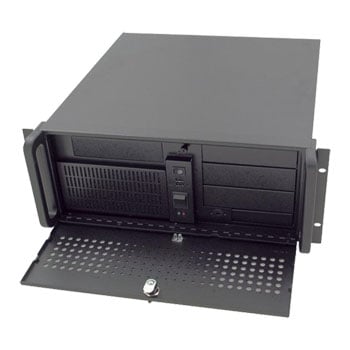

PCICase 4U Rugged Short Chassis

PCICase 4U Rugged Short Chassis, Rackmountable, 4x 5.25" Bays, 7x FH PCI Slots, 2x Front 92mm Fans, ATX/eATX

Thumbnail 1 : PCICase 4U Rugged Short Chassis Thumbnail 2 : PCICase 4U Rugged Short Chassis Thumbnail 3 : PCICase 4U Rugged Short Chassis Thumbnail 4 : PCICase 4U Rugged Short Chassis
Scan code: LN116915 Manufacturer code: IPC-C4B-N
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

4U Rugged Short Chassis

The IPC-C4B is designed with 17.7” depth to meet the requirements of Telecom, Military and Appliance Applications. Full length cards are still supported even at shortened depth.

Features

• Rugged design to meet most applications.
• Short depth design for space critical applications.
• Supports Single PS2 and Mini Redundant Power Supplies.
• 4 x 5.25" allows a wide scope of configurations despite short depth.
• 2 x 92mm industrial grade ball-bearing fans.
• Optional additional 2 x 60mm rear exhaust fans for efficient cooling.
• Ideal for ATX M/B or Single Board Computing (14 slots).

Specifications
Core Chassis Specifications
Case Edition IPC-C4B-N
Case Form Factor 4U
Motherboard Form Factor
  • ATX
  • E-ATX
  • SSI CEB
  • SSI EEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Power LED
  • 1 x Power Switch
  • 1 x System Reset button
  • 2 x USB
Drive Bays
  • 1 x 3.5" External
  • 2 x 3.5" Internal
  • 4 x 5.25" External
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 60mm
  • 2 x 92mm
Fans Included 2 x 92mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SGCC
Dimensions 482.6 x 177.8 x 449.58 (WxHxD mm)
Weight (w/o PSU & Rail) 17 kg (Approx)
