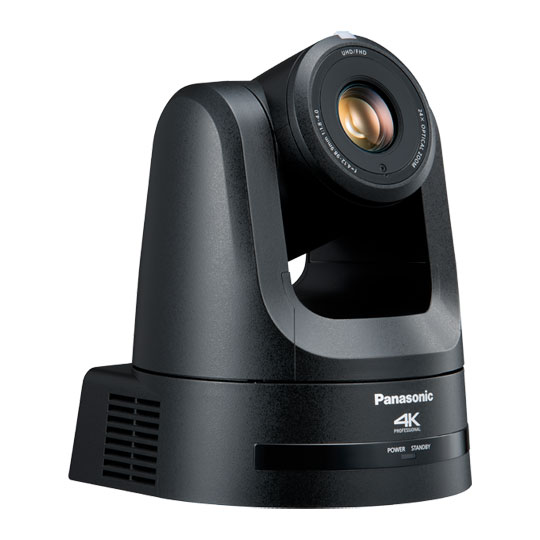

Panasonic - 'AW-UE100K PTZ Camera'
Black
High-quality 4K PTZ CameraThe Panasonic AW-UE100 is a 4K PTZ camera, compatible with various IP transmission protocols, including NDI, SRT, and FreeD to achieve flexible video production with high quality 4K 60p/50p video. The camera also supports 12G-SDI output alongside 3G-SDI and HDMI, giving it the ability to be used in a wide range of situations and workflows, from live streaming events to studio production.
Key Features:
• High-Quality 4K 60p/50p Shooting
• 1/2.5-type MOS sensor
• Shooting with 24x optical zoom and a 74.1° horizontal angle of view
• Newly-developed high-precision Direct Drive motor
• Electronic Image Stabilization (EIS) for roll direction
• FreeD Support for Construction of AR/VR Systems
• Compatible with IT/IP platform "KAIROS"
• Cropping (+ Zoom) function
• Tally LED Limit
• High image quality and low latency with high bandwidth NDI support
• SRT support for stable video transmission over public lines
• Direct Broadcast via RTMP/RTMPS

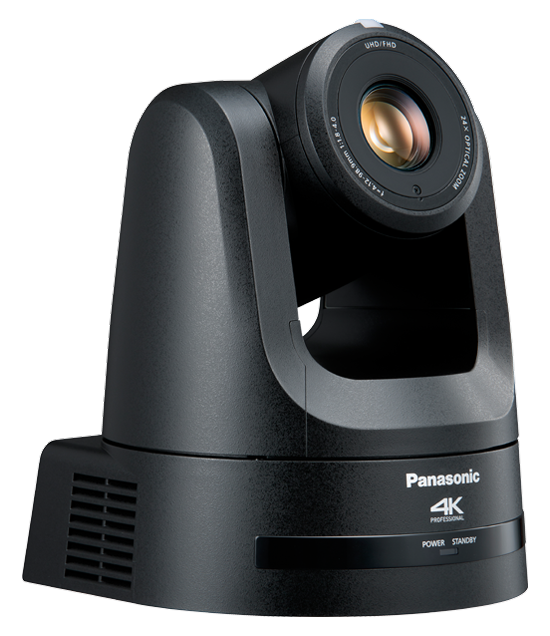

Panasonic 4K60p PTZ Camera AW-UE100 Supporting NDI And SRT
Shooting With 24x Optical Zoom And A 74.1° Horizontal Angle Of View

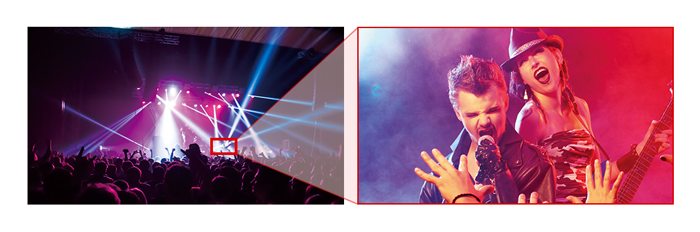

i.ZoomIn addition to 24x optical zoom, the inclusion of i.Zoom enables super resolution zooming of up to 36x in HD Mode and 28x in 4K mode while maintaining high resolution. The 1.4x and 2x digital extender zoom also allows distant subjects to be captured clearly, while the 74.1° horizontal angle of view enables a wide area to be shot from a limited installation space.

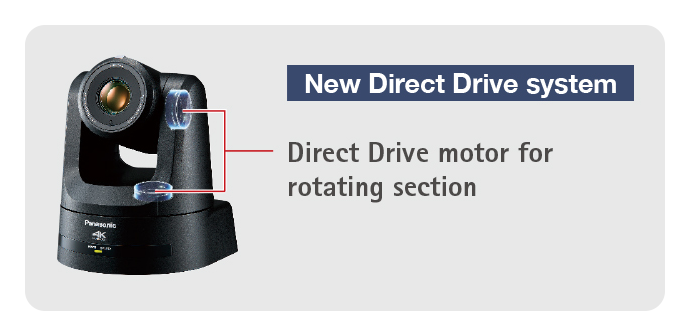

Newly-developed high-precision Direct Drive motor
high-precision Direct Drive motorThe inclusion of a Direct Drive motor for the rotating section improves operability, responsiveness and quietness during pan/tilt operations.
operabilityA wide range of speeds are supported, from slow movement of 0.08° per second to ultra-high speeds of 180° per second (Fast2 Mode).
responsivenessExcellent responsiveness allows for accurate camera work, ensuring that the target area is captured.
quietnessA noise level of NC25 or less is ensured, enabling shooting in situations such as Concert hall and Studio where quietness is required.

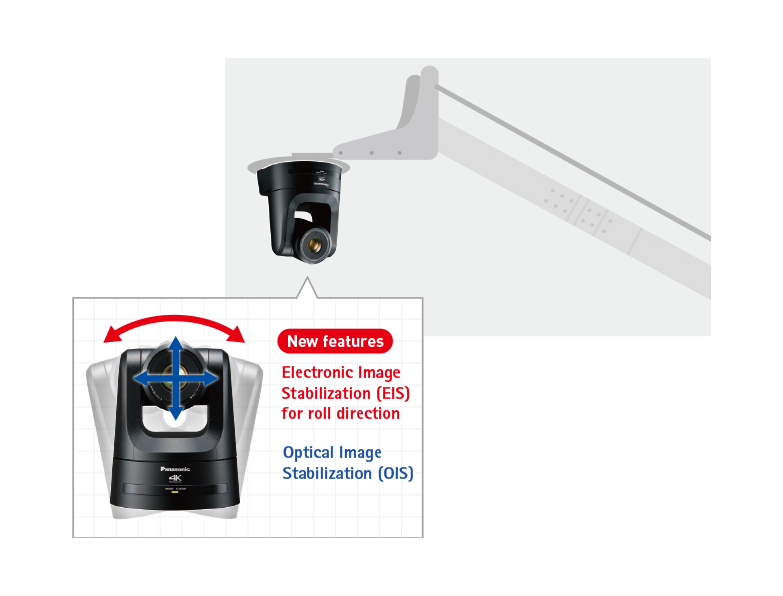

Electronic Image Stabilization (EIS) for roll direction
EIS and OISElectronic Image Stabilization (EIS) for the roll direction has been added in addition to Optical Image Stabilization (OIS). Stable images with reduced blurring can be shot even in locations where special equipment such as a rail systems or camera arms are used.

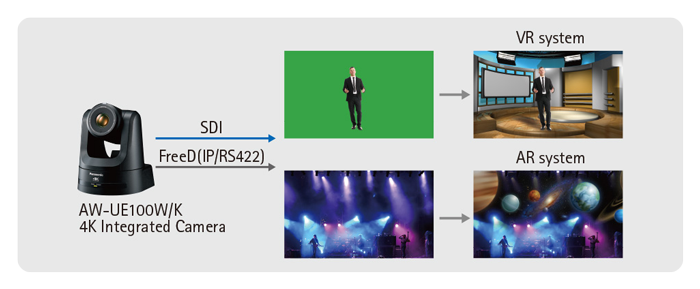

FreeD Support For Construction Of AR/VR Systems
Integration with AR/VR systemsIntegration with AR/VR systems is available via FreeD-compliant command output. Camera tracking information (pan/tilt/zoom/focus/iris) is output according to a synchronizing signal to facilitate configuration of virtual systems without an encoder.

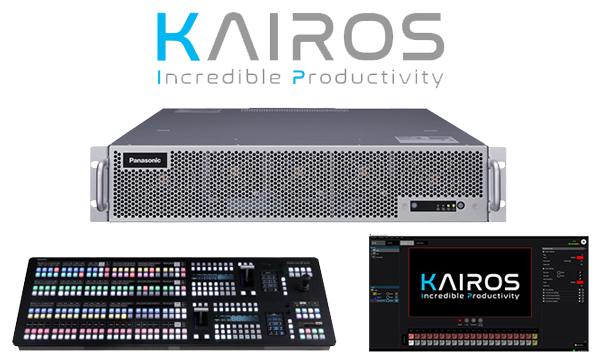

Compatible with IT/IP platform "KAIROS"
KAIROSThis product is compatible with the IT/IP platform "KAIROS". It is a live video production platform developed based on a new concept and innovative architecture. It incorporates proprietary, ground-breaking software to maximize the CPU and GPU capacities for video processing.

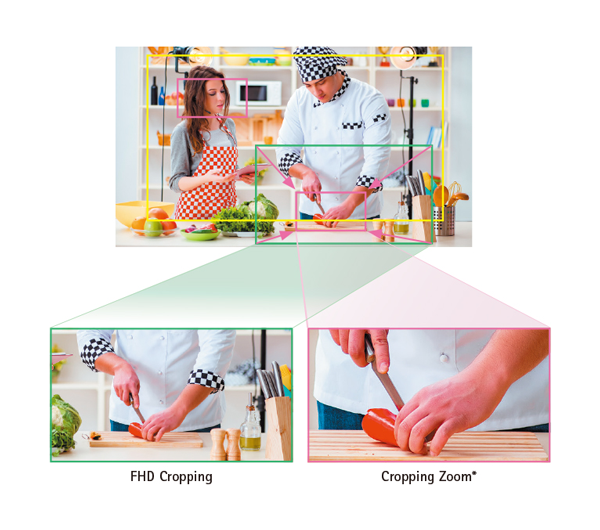

Cropping (+ Zoom) Function
Up To Three Crop AreasA cropped portion of the video can be created simultaneously during output of the full 4K video. Up to three crop areas can be specified, with easy operation using the AW-RP150GJ Remote Camera Controller and the web browser screen. The inclusion of cropping zoom also allows up to 5x zoom of cropped images.

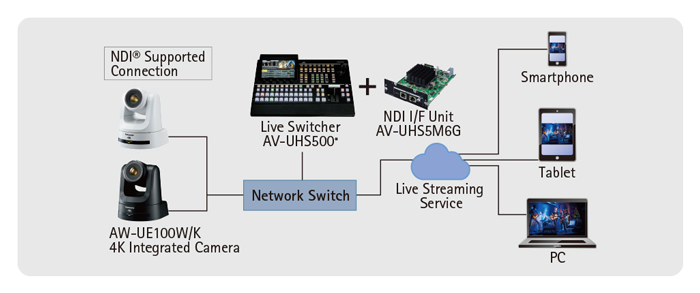

High Image Quality And Low Latency With High Bandwidth NDI Support
Transmit High-Quality Video In Real TimeHigh bandwidth NDI and high efficiency low bandwidth NDI|HX, which encode and transmit high-quality video in real time, are included. High bandwidth NDI transmits 4K video at a maximum of 250 Mbps and full HD video at a maximum of 125 Mbps, enabling high-quality, low-latency live video transmission.

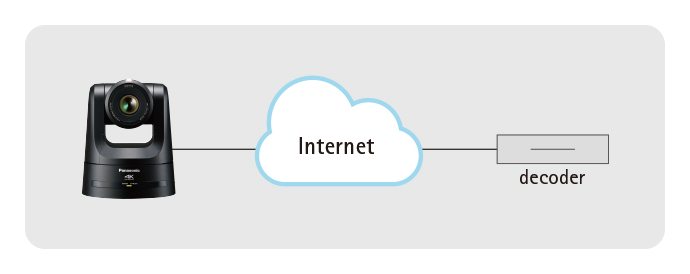

SRT Support For Stable Video Transmission Over Public Lines
SRT SupportSRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
SecureStrong security is ensured by encrypting video data before transmission.
ReliableThe packet loss recovery function automatically detects and retransmits packets lost during transmission, ensuring smooth, stable video transmission.
TransportThe flexible and adaptable buffer management system enables stable video transmission even in network environments with unstable bit rates. Long-distance video transmission over public lines is supported.

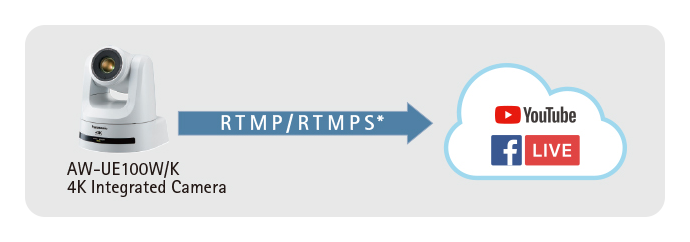

Direct Broadcast Via RTMP/RTMPS
Direct BroadcastRTMP/RTMPS is supported to enable direct upload of video to live-streaming services such as YouTube Live and Facebook Live. This means a live stream can be broadcast directly from the camera.
